Varionaut 150 24 V /DMX/02 US

Misc

Motor Type / Electronic

24 V, DC, DMX-RDM controlled

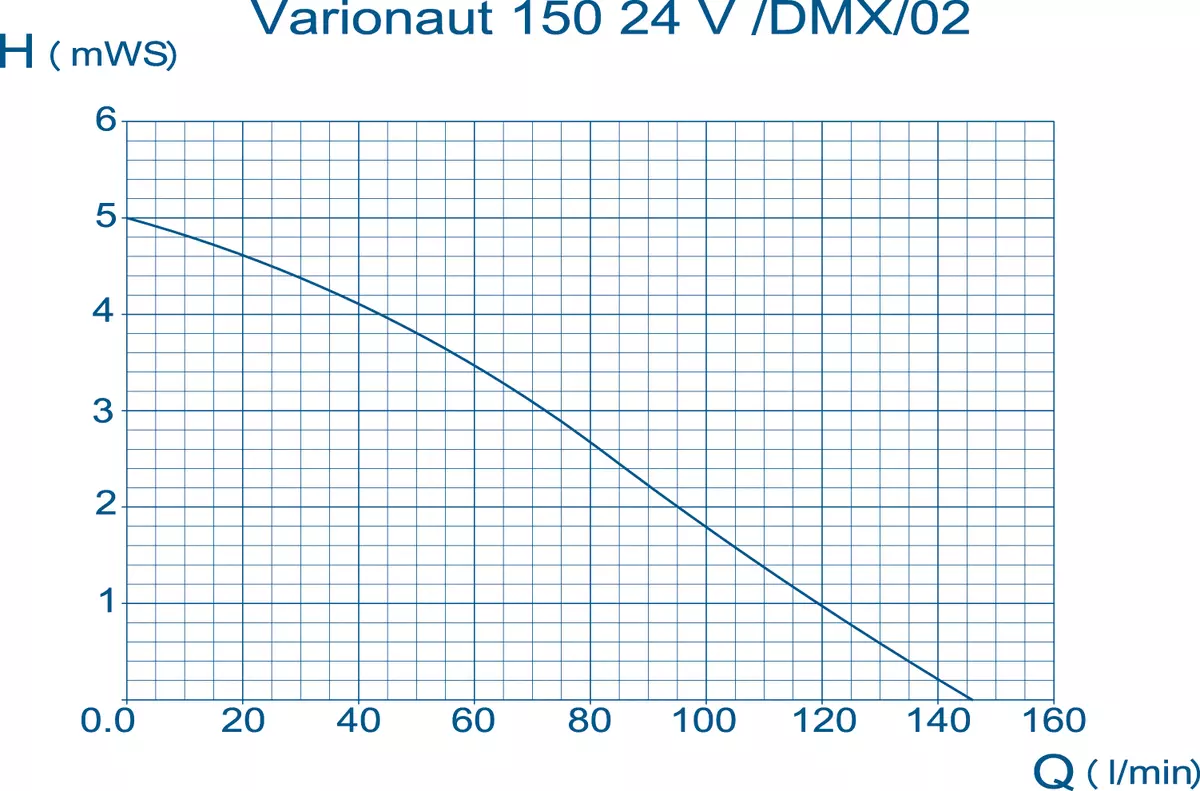

Delivery head – H max.

5.00

m

Flow rate Q max.

145

l/min

Flow rate Q min. (Offset mode – DMX 0)

22

l/min

Active power consumption max.

120

W

Apparent power consumption max.

120

VA

Power consumption at min. fountain height

5

W

Power consumption at max. fountain height

120

W

Rated current

5

A

Rated voltage

24 V / DC

Dynamic behavior, speed: time for full fountain height from 0 to 100%

1 s (Comet 10 - 12)

Start-up time after applying the mains voltage

< 3

sec.

Switching frequency/rest period

1 × per minute / 10 s

Environmental condition: submersible application

Water temperature: min. +39.2 °F to max. +95 °F

Environmental condition: dry application

86°F max with natural convection, 104°F max with forced cooling, no direct sunlight allowed

Protection class

IP68; 4 m

Protection class (EN 61140)

I

Installation position

Horizontal

Minimum distance to neighboring devices

100

mm

Immersion depth max.

4.00

m

Suction-side connection

G 1 ½

Connection type, suction-side

External thread

Pressure-side connection

G 1 ½

Connection type, pressure side

External thread

DMX-RDM connection type

1-m BUS cable with box

Number of DMX channels

2

Units

DMX Channel 1

Function

DMX Channel 2

Speed

Dimensions (L × W × H)

311 × 161 × 158

mm

Material

Plastic / Stainless steel 1.4301 (AISI 304)

Net weight

5.176

kg
