Feature Details
Combination of motorised fountain nozzle VarioMaster L and dynamic effect drive for extraordinary, highly dynamic fountain effects and water patterns
Precise, pinpoint changes and smooth transitions between the different water choreographies – controlled by the OASE WECS III show controller
Compatible for connection to commercially available centrifugal pumps or controllable OASE pumps
Waterproof connection (IP68) to 24V DC and DMX via patented ProNect underwater plug connection
Also suitable for use in salt water – thanks to high-quality workmanship with durable stainless steel
Available separately
RGBW LED module VM-MDD L (92770)
Slide 1 of 4
1 of 4
Specifications
Specification breakdown
- Number of DMX channels
- 12
- Units
- DMX Channel 1 x axe
- Position
- DMX Channel 2 x axe
- Fine
- DMX Channel 3 x axe
- Speed
- DMX Channel 4 x axe
- Function
- DMX Channel 1 y axe
- Position
- DMX Channel 2 y axe
- Fine
- DMX Channel 3 y axe
- Speed
- DMX Channel 4 y axe
- Function
- DMX Channel 1 rotation
- Position
- DMX Channel 2 rotation
- Fine
- DMX Channel 3 rotation
- Speed
- DMX Channel 4 rotation
- Function
- Max. operating pressure
- 3.5
- bar
- Water level min.
- 450
- mm
- Waterlevel max.
- 650
- mm
- Waterlevel Parking Position
- 650
- mm
- Swing Range - Factory
- 140/140
- °
- Swing Range - adjustable
- 200/140
- °
- Swing Speed max.
- 72.00
- °/sec.
- Rotation Speed max.
- 720.00
- °/sec.
- Pressure-side connection
- 2 ½"
- Power consumption
- 79
- W
- Rated voltage
- 24 V / DC
- Rated current
- 3.3
- A

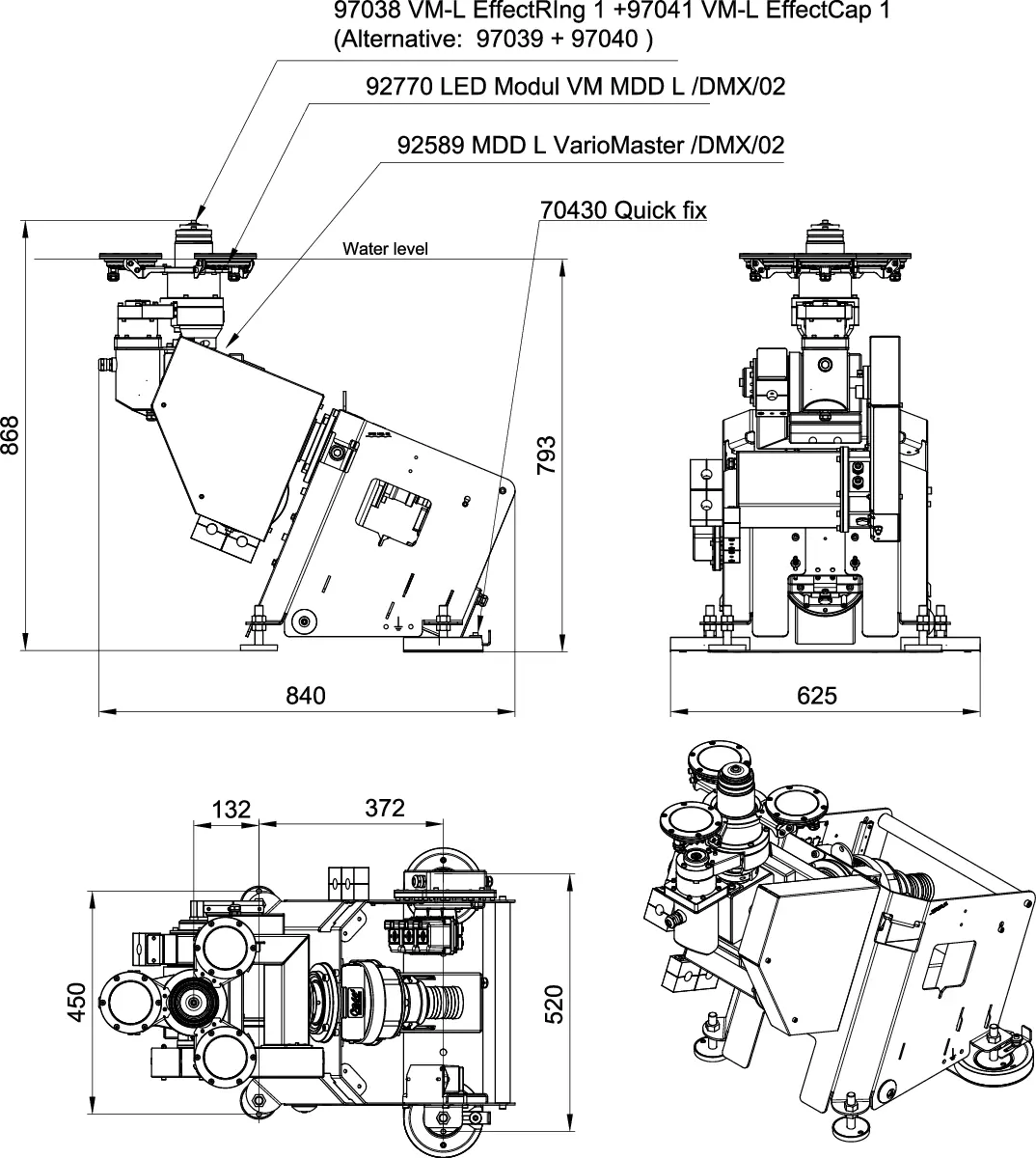

- Dimensions (L × W × H)
- 840 × 542 × 857
- mm
- Net weight
- 87
- kg
Downloads
- ZEI_PRD_3D_92589-VarioMaster-L-Move-DMX-02-001.dwg
- ZEI_PRD_AC_92589-VarioMaster-L-Move-DMX-02-001.dxf
- ZEI_PRD_AC_92589-VarioMaster-L-Move-DMX-02-mit-Beleuchtung-001.dxf
- DOK_PRD_GA_48014-GA-Power-Verbindungsbox-24-V-01.pdf
- DOK_PRD_DB_92589-VarioMaster-L-Move-DMX-02-001.pdf
