VarioDrop

VarioDrop /01 INT

SKU: 92485

Key features

  • Exceptional water effect: Droplets appear to float in the air
  • Fully submerged technology enhances visual weightlessness
  • Perfectly matched combination of 24 V solenoid valve (12 V on request) with water supply line and Comet fountain attachment

Feature Details

  • Particularly secure, patented ProNect connection of the Underwater Switch

  • Perfectly matched combination of 24 V solenoid valve (12 V on request) with water supply line and comet fountain attachment

  • For fascinating light installations with bracket for spotlights ProfiLux LED S

  • Extraordinary water effect

    Drops seem to float in the air

  • Technology completely hidden under water enhances visual weightlessness

  • Best performance, as a sludge trap prevents the nozzle from getting dirty

1 of 3

Specifications

    Specification breakdown

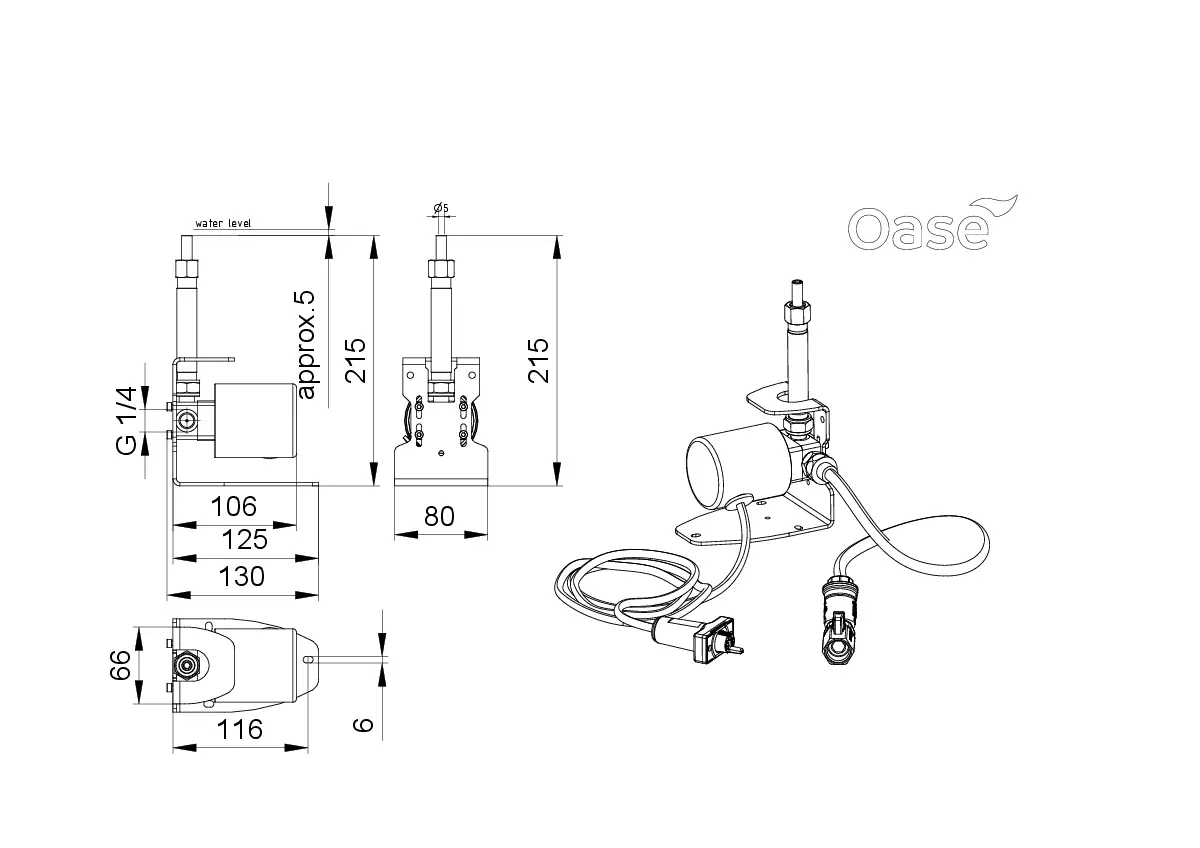

    Dimensions (L × W × H)
    215 × 80 × 130
    mm
    Power consumption
    5
    W
    Rated voltage
    24 V / DC
    Protection class
    IP68
    Power connection type
    24 V DC plug
    Power cable length
    4.00
    m
    Water level min.
    200
    mm
    Waterlevel max.
    215
    mm
    Pressure-side connection
    G ½
    Material
    Stainless steel 1.4301 (AISI 304) / Plastic
    Net weight
    1.95
    kg

    Downloads

    • ZEI_PRD_3D_92485-VarioDrop-001.dwg
    • ZEI_PRD_AC_92485-VarioDrop-001.dxf
    • DOK_PRD_GA_92283-GA-Vario-Drop-01-01.pdf
    • ZEI_PRD_AC_92485-VarioDrop-System-001.dxf
