USP H 673 D INT
SKU: 56506
View other products in the family
Key features
- Bearings and motor shaft are made of special ceramics
- Shaft and pump impeller are made of stainless steel
- Housing made of corrosion resistant tombac alloy
Feature Details
Use as a submersible motor pump or in a separate pump chamber
Durable and low-wear due to construction and particularly durable materials
Robust wet-rotor canned motor
Wear-free static seals
bearing and motor shaft made of special ceramics
Shaft, canned tube and pump impeller made of stainless steel
Corrosion-resistant brass housing
Floodable
Slide 1 of 3
1 of 3
Specifications
Specification breakdown
- Setup type
- Can be set up underwater & dry installed
- Pressure-side connection
- 2 ½"
- Pressure-side connection
- 63
- mm
- Suction-side connection
- 3"
- Suction-side connection
- 75
- mm

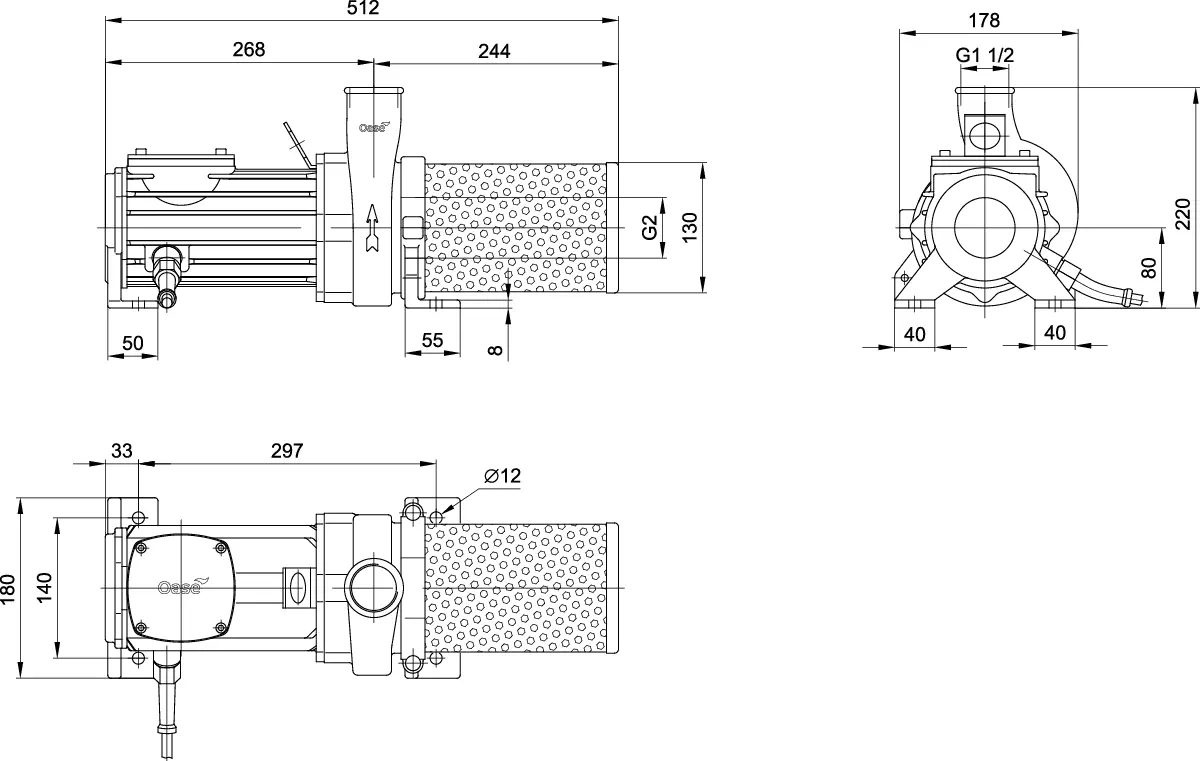

- B
- 240
- mm
- B1
- 200
- mm
- B2
- 230
- mm
- DD
- 2 ½"
- DS
- 3"
- D
- 170
- mm
- H
- 115
- mm
- H1
- 310
- mm
- L
- 679
- mm
- L1
- 305
- mm
- L2
- 374
- mm
- L3
- 36
- mm
- L4
- 330
- mm
- Rated current
- 3.1
- A
- Number of phases
- 3
- Units
- Rated voltage
- 400
- V
- Frequency
- 50
- Hz
- Power cable length
- 10.00
- m
- Material
- Tombac / Stainless Steel / Brass / Bronze
- Dimensions (L × W × H)
- 696 × 240 × 290
- mm
- Net weight
- 38.1
- kg
Downloads
- ZEI_PRD_AC_56506-USPH673D-001.dxf
- ZEI_PRD_3D_56506-USP-H-673-D-001.dwg
- DOK_PRD_EL_55727-UPS-512-W-2015.pdf
- DOK_PRD_DB_55720-USP-412-813.pdf
- DOK_PRD_GA_8770-GA-USP-412-W-USP-813-D-01.pdf
