ProfiPlane LED XL

ProfiPlane LED XL RGB Spot /DMX/02 INT

SKU: 73005

Feature Details

  • DMX/RDM-capable with the Underwater LED-Driver Compact, dimmable, perfect for strobe effects

  • DMX/RDM-capable with the Underwater LED-Driver Compact/DMX/02, dimmable, perfect for strobe effects

  • Most powerful RGB LED ring light with large aperture (51.6 mm diameter) for wall or floor mounting, drive-over resistant up to max. 1.5 t, beam angle 11°, 2,511 lumens

  • High-quality, robust stainless steel housing for replaceable thread inlets of LED XL EasyFit 10 and 15 for direct thread connection of various nozzles

  • Cluster nozzle flush with the spotlight also available as ticking (LED XL EasyFit Noz)

  • Waterproof according to IP68 up to 4 m water depth, with patented waterproof OASE ProNect connector

  • Temperature-controlled, high-quality brand LEDs with a lifespan of up to 100,000 hours*

  • Level surface by stepped glass prevents deposits

  • Galvanic isolation between DMX and 24 V DC

1 of 9

Specifications

    Specification breakdown

    Certificate
    Dekra US + C
    Number of DMX channels
    5
    Units
    DMX Channel 1
    red
    DMX Channel 2
    green
    DMX Channel 3
    blue
    DMX Channel 4
    strobe
    DMX Channel 5
    dimmable
    Luminous flux with all on
    2511
    lm
    Luminous flux red
    720
    lm
    Luminous flux green
    1380
    lm
    Luminous flux blue
    411
    lm
    Beam angle
    11 Degrees (± 2)
    Stroboscope effect
    0-25 Hz
    Weighted energy consumption
    77
    kWh/1000h
    Rated voltage
    24 V / DC
    Power consumption
    70
    W
    Rated current
    3.1
    A
    Dim frequency
    2800
    Hz
    Power cable length
    0.00
    m
    Protection class
    IP68; 4 m
    Pressure-side connection
    G 2
    Dimensions (Ø × H)
    330 × 77
    mm
    Material
    Stainless steel 1.4404 (AISI 316L)
    Net weight
    6.5
    kg

    Downloads

    • ZEI_PRD_3D_73005-ProfiPlane-LED-XL-RGB-Spot-DMX-02-001.dwg
    • ZEI_PRD_AC_73005-ProfiPlane-LED-XL-RGB-Spot-DMX-02-001.dxf
    • ZEI_PRD_LDT_73004-ProfiRing-LED-XL-RGB-Spot-DMX-02-001.zip
    • DOK_PRD_GA_77723-GA-LED-XL-Ring-steuerbar-01.pdf
    • DOK_PRD_EL_73005-ProfiPlane-LED-XL-RGB-Spot-DMX-02-001.pdf
    • DOK_PRD_LV_73005-ProfiPlane-LED-XL-RGB-Spot-DMX-02-001.pdf
    • DOK_PRD_DB_73005-ProfiPlane-LED-XL-RGB-Spot-DMX-02-001.pdf

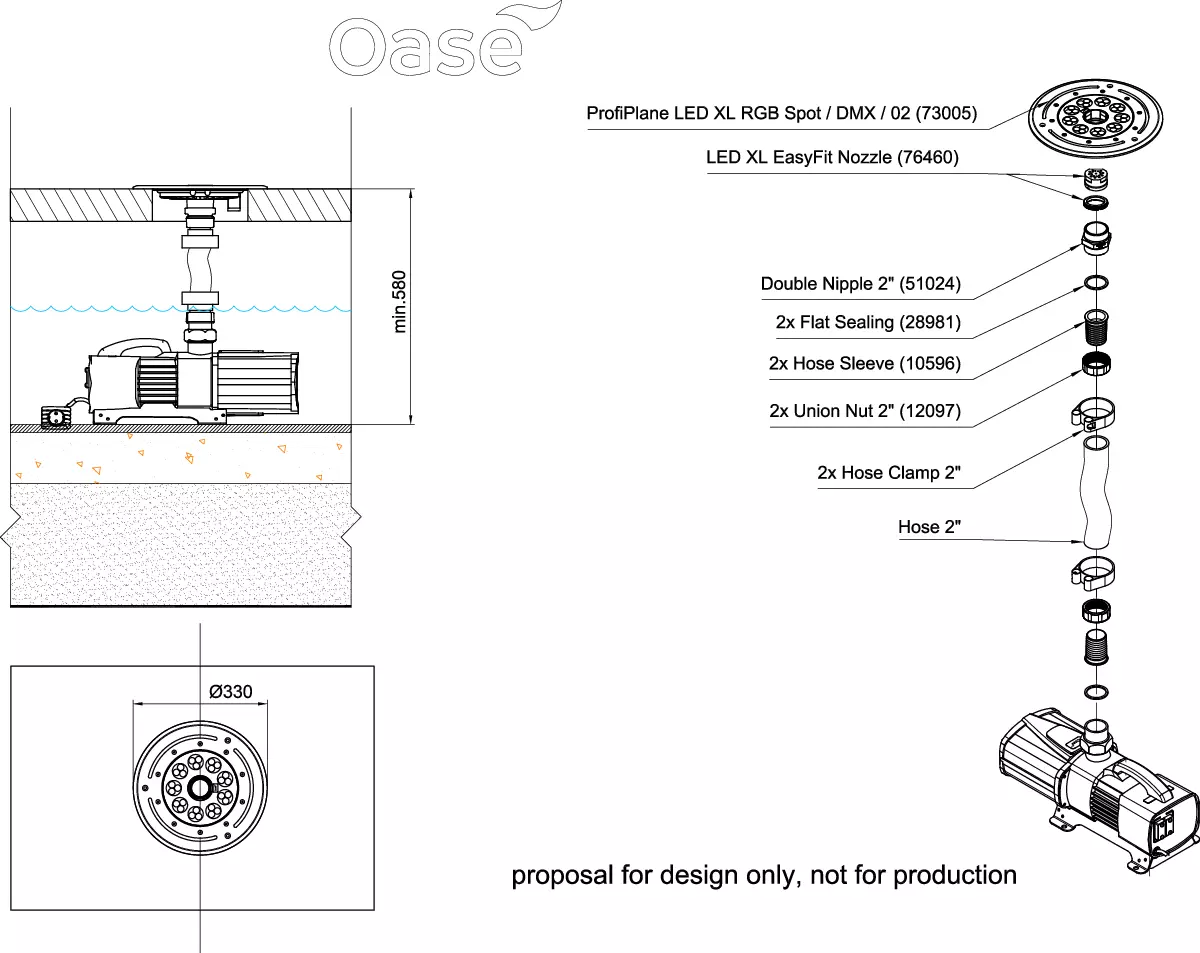

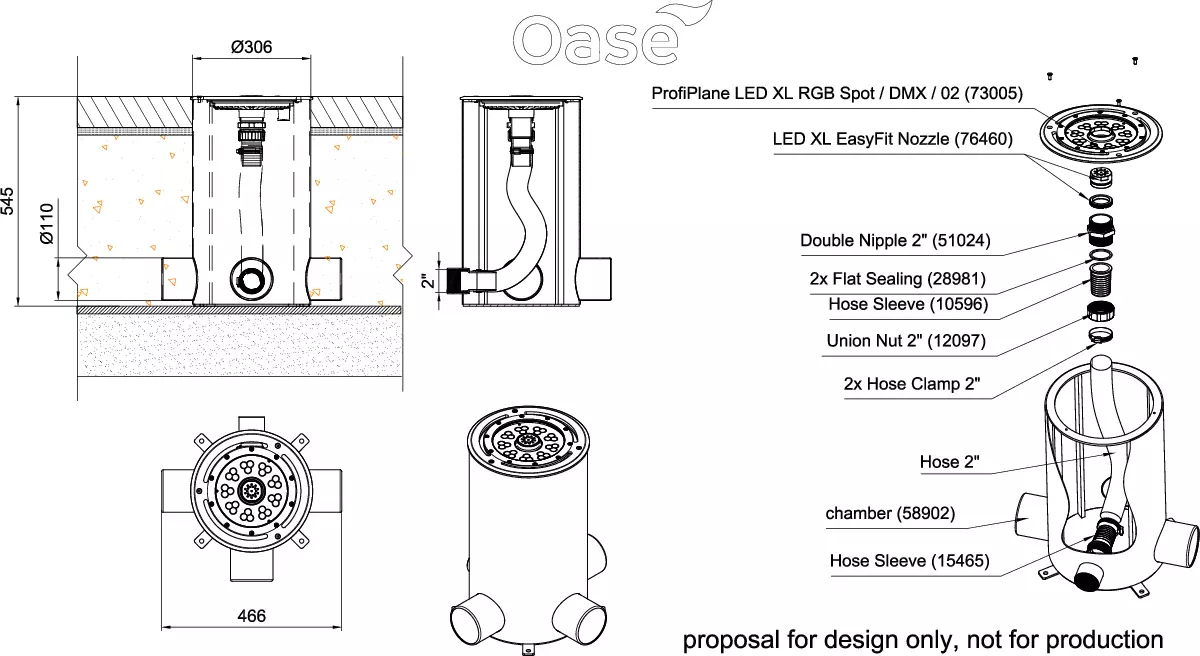

    • ZEI_PRD_AC_73005-ProfiPlane-LED-XL-RGB-Spot-DMX-02-SYSTEM-001.dxf
    • ZEI_PRD_AC_73005-ProfiPlane-LED-XL-RGB-Spot-DMX-02-SYSTEM-002.dxf
    • ZEI_PRD_AC_73005-ProfiPlane-LED-XL-RGB-Spot-DMX-02-SYSTEM-003.dxf
    • ZEI_PRD_AC_73005-ProfiPlane-LED-XL-RGB-Spot-DMX-02-SYSTEM-004.dxf
