ProfiLux LED L RGB Flood /DMX/02 INT
SKU: 36089
View other products in the family
Feature Details
Galvanic isolation between DMX and 24 V DC
Powerful RGB LED spotlight for wet and dry installation with homogeneous coloured illumination by uniformly calibrated LEDs
High-quality stainless steel housing with robust bracket and fine adjustment
Temperature-controlled, high-quality brand LEDs with a lifespan of up to 100,000 hours*
Level Stepped Glass Surface Prevents Deposits
Waterproof according to IP68 up to 4 m water depth
1 m cable length with patented waterproof OASE ProNect connector
DMX/RDM-capable with the Underwater LED-Driver Compact/DMX/02, dimmable, perfect for strobe effects
Slide 1 of 5
1 of 5
Slide 1 of 6
1 of 6
Specifications
Specification breakdown
- Certificate
- Dekra US + C
- Number of DMX channels
- 5
- Units
- DMX Channel 1
- red
- DMX Channel 2
- green
- DMX Channel 3
- blue
- DMX Channel 4
- strobe
- DMX Channel 5
- dimmable
- Luminous flux with all on
- 837
- lm
- Luminous flux red
- 240
- lm
- Luminous flux green
- 460
- lm
- Luminous flux blue
- 137
- lm
- Beam angle
- 31 Degrees (± 2)
- Stroboscope effect
- 0-25 Hz
- Weighted energy consumption
- 31.2
- kWh/1000h
- Rated voltage
- 24 V / DC
- Power consumption
- 21
- W
- Rated current
- 0.95
- A
- Dim frequency
- 2800
- Hz
- Power connection type
- Hybrid plug
- Power cable length
- 1.00
- m
- Protection class
- IP68; 4 m

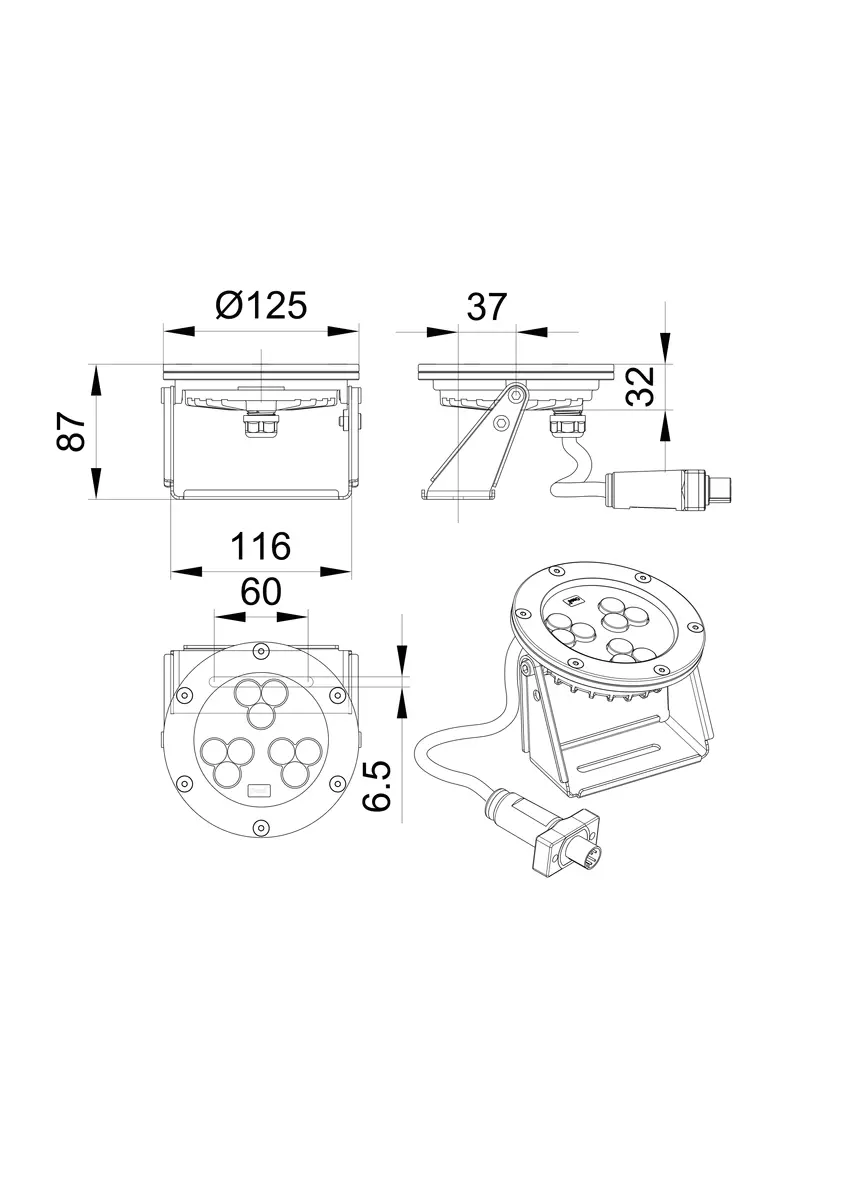

- Dimensions (Ø × H)
- 128 × 87
- mm
- Material
- Stainless steel 1.4404 (AISI 316L)
- Net weight
- 1.4
- kg
Downloads
- ZEI_PRD_3D_36089-ProfiLux-LED-L-RGB-Flood-DMX-02-001.dwg
- ZEI_PRD_AC_36089-ProfiLux-LED-L-RGB-Flood-DMX-02-001.dxf
- ZEI_PRD_AC_36089-ProfiLux-LED-L-RGB-Flood-DMX-02-System-001.dxf
- ZEI_PRD_LDT_36089-ProfiLux-LED-L-RGB-Flood-DMX-02.zip
- DOK_PRD_EL_36089-ProfiLux-LED-L-RGB-Flood-DMX-02-001.pdf
- DOK_PRD_DB_36089-ProfiLux-LED-L-RGB-Flood-DMX-02.pdf
- DOK_PRD_LV_36089-ProfiLux-LED-L-RGB-Flood-DMX-02.pdf
- DOK_PRD_GA_91474-GA-LED-FT-RGBW-steuerbar-01.pdf
