ProfiLux Basic LED XL RGBW Flood /DMX/02 INT
SKU: 70135
View other products in the family
Feature Details
High-quality stainless steel housing with robust bracket and fine adjustment
Powerful RGBW LED spotlight for wet and dry installation
Temperature-controlled, high-quality brand LEDs with a lifespan of up to 50,000 hours*
Uniform brightness of all luminaires and homogeneous color combination
Waterproof according to IP68 up to 2 m water depth
1 m cable length with patented waterproof OASE ProNect connector

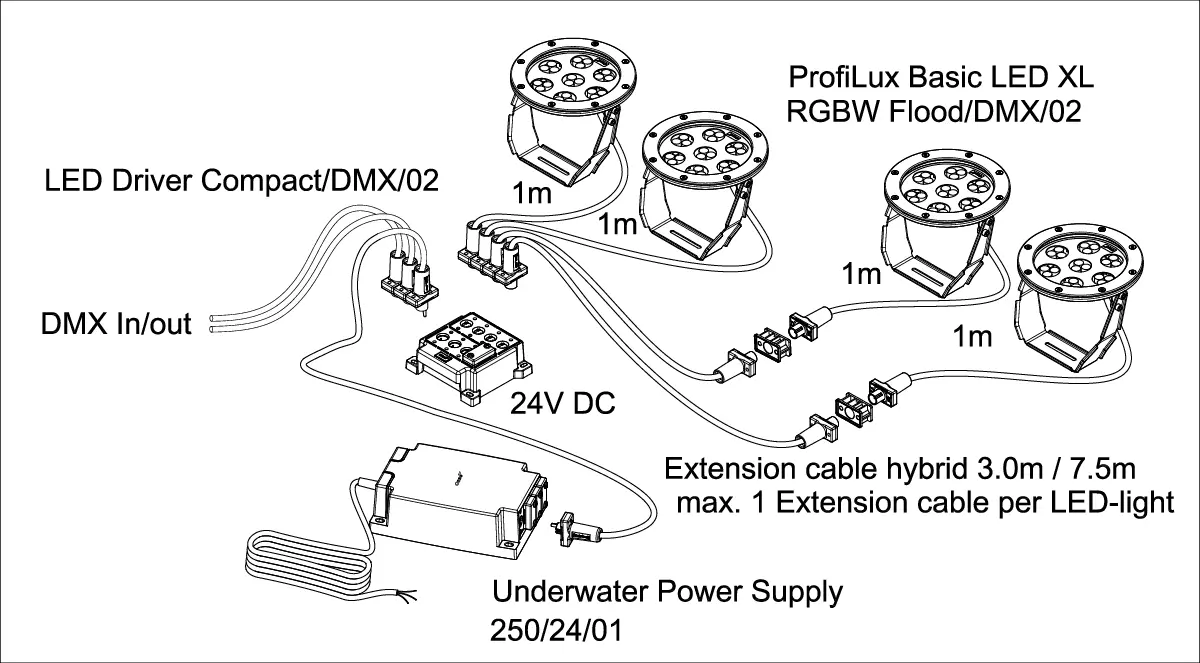

Controllable and DMX/RDM-capable with Underwater LED Driver Compact /DMX/02, dimmable, perfect for strobe effects
Galvanic isolation between DMX and 24 V DC
Slide 1 of 5
1 of 5
Slide 1 of 7
1 of 7
Specifications
Specification breakdown
- Certificate
- MET US + C
- Number of DMX channels
- 6
- Units
- DMX Channel 1
- red
- DMX Channel 2
- green
- DMX Channel 3
- blue
- DMX Channel 4
- white
- DMX Channel 5
- strobe
- DMX Channel 6
- dimmable
- Luminous flux with all on
- 1263
- lm
- Luminous flux red
- 284
- lm
- Luminous flux green
- 509
- lm
- Luminous flux blue
- 156
- lm
- Luminous flux withe
- 313
- lm
- Colour temperature LED white
- 4000 (± 200)
- K
- Colour rendering index (CRI)
- 80
- %
- Beam angle

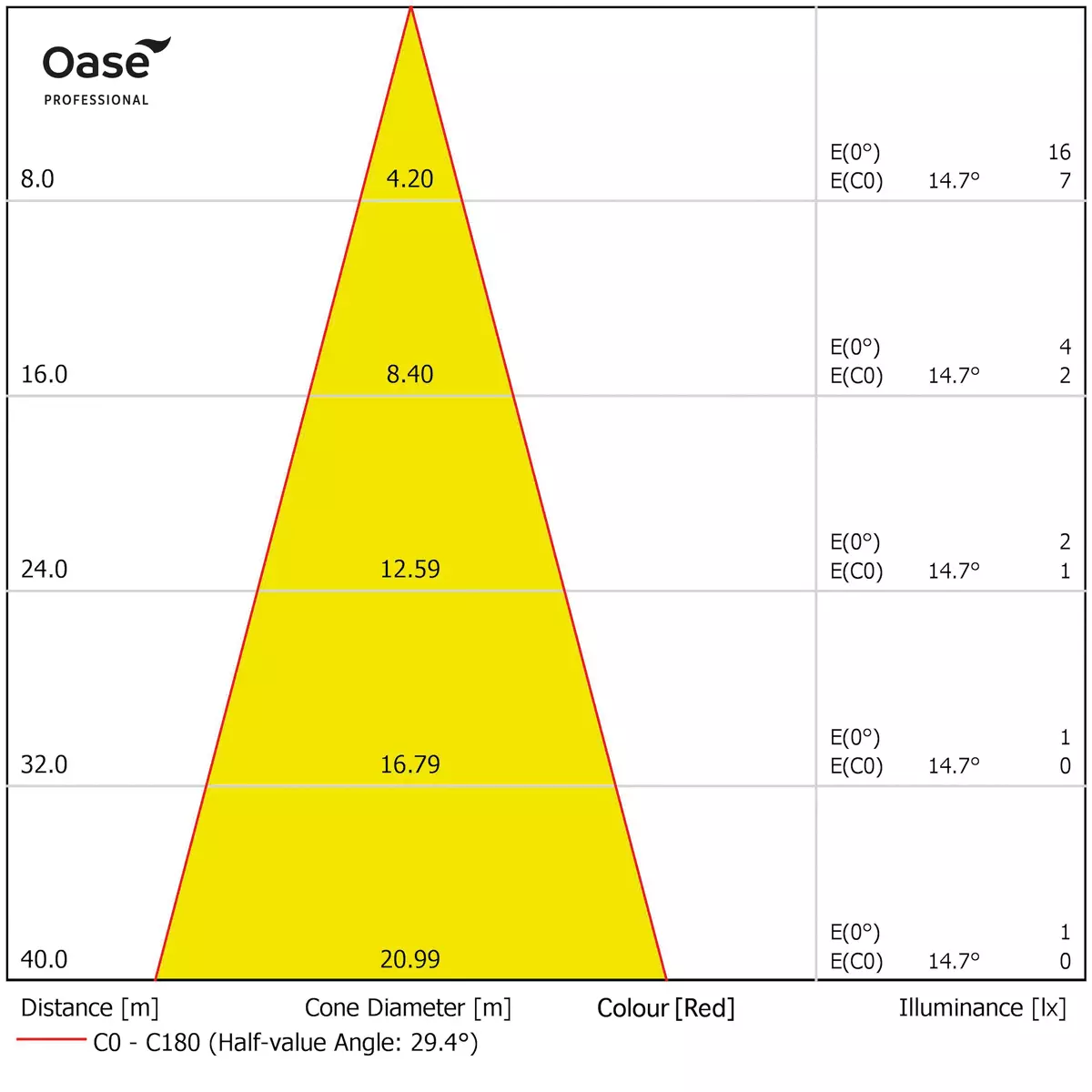

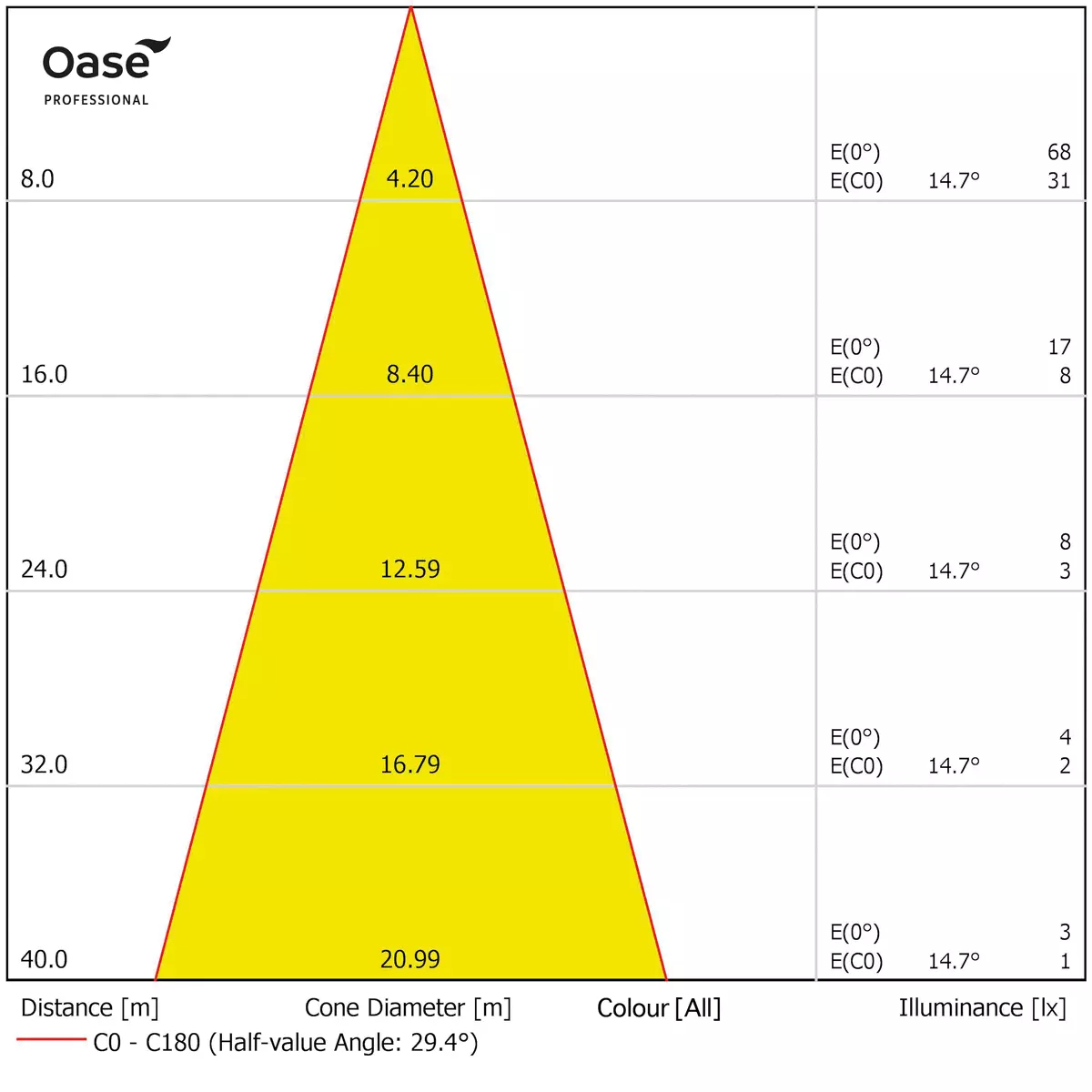

- 31 Degrees (± 2)
- Stroboscope effect
- 0-25 Hz
- Weighted energy consumption
- 22.4
- kWh/1000h
- Rated voltage
- 24 V / DC
- Power consumption
- 20.4
- W
- Rated current
- 1.18
- A
- Dim frequency
- 2800
- Hz
- Power connection type
- Hybrid plug
- Power cable length
- 1.00
- m
- Protection class
- IP68; 2 m
- Dimensions (Ø × H)
- 198 × 156
- mm
- Material
- Stainless steel 1.4301 (AISI 304)
- Net weight
- 2.2
- kg
Downloads
- ZEI_PRD_3D_70135-ProfiLux-Basic-LED-XL-RGBW-Flood-DMX-02.dwg
- ZEI_PRD_AC_70135-ProfiLux-Basic-LED-XL-RGBW-Flood-DMX-02.dxf
- ZEI_PRD_AC_70135-ProfiLux-Basic-LED-XL-RGBW-Flood-DMX-02-System.dxf
- ZEI_PRD_LDT_56391-ProfiLuxLEDFlood1500DMX02.zip
- DOK_PRD_GA_70195-GA-ProfiLux-Basic-RGB-LED-L-XL-01.pdf
- DOK_PRD_LV_70135-ProfiLux-Basic-LED-XL-RGBW-Flood-DMX-02.pdf
- DOK_PRD_DB_70135-ProfiLux-Basic-LED-XL-RGBW-Flood-DMX-02.pdf
- DOK_PRD_EL_70135-ProfiLux-Basic-LED-XL-RGBW-Flood-DMX-02-001.pdf
