ProfiLux Basic LED L W Spot /01 INT
SKU: 72663
View other products in the family
Feature Details
Temperature-controlled, high-quality brand LEDs with a lifespan of up to 50,000 hours*
Warm white, powerful headlights for wet and dry installation
High-quality stainless steel housing with robust bracket and fine adjustment
Waterproof according to IP68 up to 4 m water depth
4 m cable length with patented waterproof OASE ProNect connector

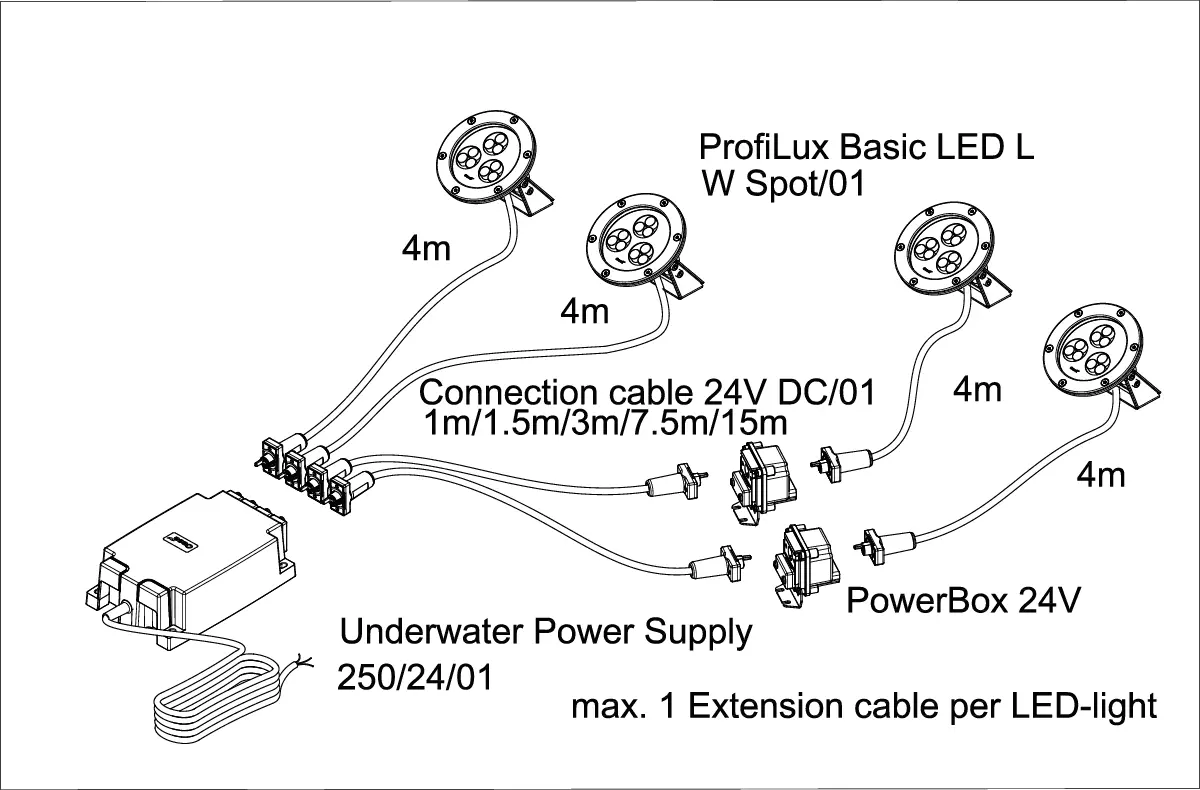

DMX/RDM-capable with Underwater Switch 24 V DC Compact /DMX/02 (on/off)
Slide 1 of 5
1 of 5
Slide 1 of 3
1 of 3
Specifications
Specification breakdown
- Luminous flux withe
- 735
- lm
- Certificate
- MET US + C
- Colour temperature LED white
- 3000 (± 200)
- K
- Colour rendering index (CRI)
- 90
- %
- Beam angle
- 11 Degrees (± 2)
- Rated voltage
- 24 V / DC
- Power consumption
- 24
- W
- Weighted energy consumption
- 27
- kWh/1000h
- Rated current
- 1
- A
- Luminous flux with all on
- 735
- lm
- Dim frequency
- 2800
- Hz
- Power connection type
- 24 V DC plug
- Power cable length
- 4.00
- m
- Protection class
- IP68; 2 m
- Dimensions (Ø × H)
- 140 × 88
- mm
- Material
- Stainless steel 1.4301 (AISI 304)
- Net weight
- 1.25
- kg
- Stroboscope effect
- No
Downloads
- ZEI_PRD_3D_72663-ProfiLux-Basic-LED-L-W-Spot-01-001.dwg
- ZEI_PRD_AC_72663-ProfiLux-Basic-LED-L-W-Spot-01-001.dxf
- ZEI_PRD_AC_72663-ProfiLux-Basic-LED-L-W-Spot-01-Connection-002.dxf
- DOK_PRD_DB_72663-ProfiLux-Basic-LED-L-W-Spot-01-001.pdf
- DOK_PRD_EL_72663-ProfiLux-Basic-LED-L-W-Spot-01-001.pdf
- ZEI_PRD_LDT_72663-ProfiLux-Basic-LED-L-W-Spot-01-001.zip
- DOK_PRD_LV_72663-ProfiLux-Basic-LED-L-W-Spot-01-001.pdf
- DOK_PRD_GA_70220-GA-ProfiLux-Basic-W-LED-L-XL-01.pdf
