ProfiFloor LED S RGBW /DMX/02 INT
SKU: 91289
View other products in the family
Feature Details
Slide 1 of 2
1 of 2
Slide 1 of 2
1 of 2
Specifications
Specification breakdown
- Certificate
- Dekra US + C
- Number of DMX channels
- 6
- Units
- DMX Channel 1
- red
- DMX Channel 2
- green
- DMX Channel 3
- blue
- DMX Channel 4
- strobe
- DMX Channel 5
- dimmable
- Luminous flux with all on
- 407
- lm
- Luminous flux red
- 83
- lm
- Luminous flux green
- 148
- lm
- Luminous flux blue
- 46
- lm
- Luminous flux withe
- 130
- lm
- Colour temperature LED white
- 4000 (± 200)
- K
- Beam angle
- 25 Degrees (± 2)
- Stroboscope effect
- 0-25 Hz
- Weighted energy consumption
- 11
- kWh/1000h
- Rated voltage
- 24 V / DC
- Power consumption
- 13.3
- W
- Rated current
- 0.59
- A
- Dim frequency
- 2800
- Hz
- Power connection type
- Hybrid plug
- Power cable length
- 1.00
- m
- Protection class
- IP68; 4 m

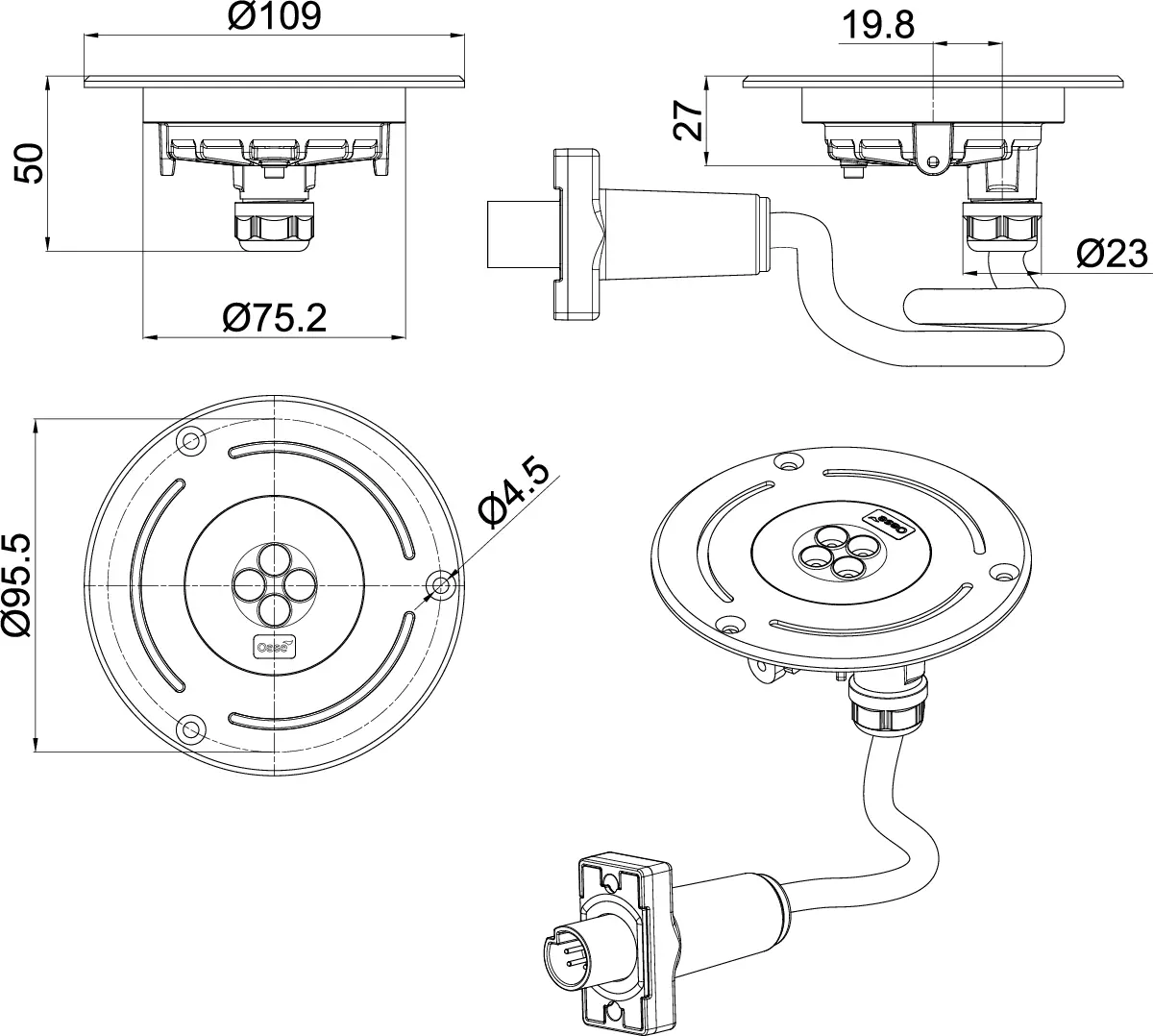

- Dimensions (Ø × H)
- 75 × 70
- mm
- Material
- Stainless steel 1.4404 (AISI 316L)
- Net weight
- 0.717
- kg
Downloads
- ZEI_PRD_3D_91289-ProfiFloor-LED-S-RGBW-DMX-02-001.dwg
- ZEI_PRD_AC_91289-ProfiFloor-LED-S-RGBW-DMX-02-001.dxf
- ZEI_PRD_AC_91289-ProfiFloor-LED-S-RGBW-DMX-02-System-001.dxf
- DOK_PRD_GA_91474-GA-LED-FT-RGBW-steuerbar-01.pdf
- DOK_PRD_DB_91289-ProfiFloor-LED-S-RGBW-DMX-02-001.pdf
