Feature Details

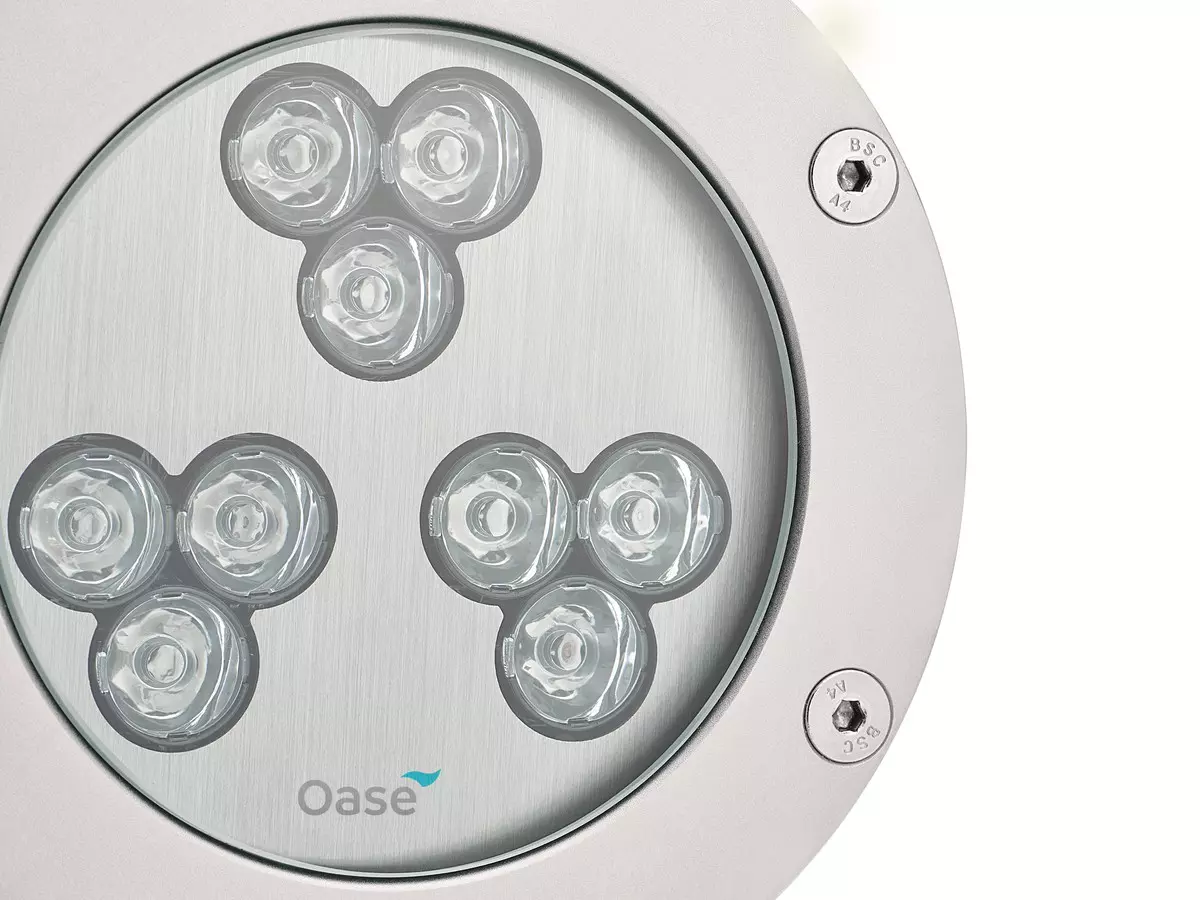

Consists of three powerful RGB LED spotlights (3 × ProfiLux LED L RGB Spot/DMX/02) with bracket and Underwater LED-Driver Compact/DMX/02
Protection class according to IP68/4 m, with patented waterproof OASE ProNect connector
Powerful RGB LED spotlights with bracket for wet and dry installation with homogeneous coloured illumination by uniformly calibrated LEDs
Galvanic isolation between DMX and 24 V DC power
DMX/RDM-capable thanks to Underwater LED-Driver Compact/DMX/02, dimmable, perfect for strobe effects
Temperature-controlled, high-quality brand LEDs with a lifespan of up to 100,000 hours*
Level surface by stepped glass prevents deposits
Slide 1 of 3
1 of 3
Specifications
Specification breakdown
- Certificate
- No certificate
- Number of DMX channels
- 5
- Units
- DMX Channel 1
- red
- DMX Channel 2
- green
- DMX Channel 3
- blue
- DMX Channel 4
- strobe
- DMX Channel 5
- dimmable
- Luminous flux with all on
- 2511
- lm
- Luminous flux red
- 720
- lm
- Luminous flux green
- 1380
- lm
- Luminous flux blue
- 411
- lm
- Beam angle
- 31 Degrees (± 2)
- Stroboscope effect
- 0-25 Hz
- Weighted energy consumption
- 24
- kWh/1000h
- Rated voltage
- 24 V / DC
- Power consumption
- 63
- W
- Rated current
- 2.85
- A
- Dim frequency
- 2800
- Hz
- Protection class
- IP68; 4 m
- Dimensions (Ø × H)
- 325 × 52
- mm
- Material
- Stainless steel 1.4404 (AISI 316L)
- Net weight
- 12.893
- kg
