LED Modul AirFlo/Midi/Maxi w INT
SKU: 92579
View other products in the family
Feature Details
Atmospheric lighting effect – Warm white light elegantly highlights AirFlo, Midi, and Maxi floating fountains.
Expandable system – Flexible upgrade to 6 or 9 spotlights for even more impressive lighting effects.
Intense light output – 735 lumens per spotlight with a 11° beam angle for precise, brilliant illumination.
Energy efficiency – Modern LED technology delivers high light output with low energy consumption.
Robust construction – Stainless steel brackets with fine adjustment for precise and long-lasting alignment.
50 m cable with safety – Long cable including patented waterproof connector for flexible and secure installation.
Slide 1 of 2
1 of 2
Specifications
Specification breakdown
- Luminous flux withe
- 2205
- lm
- Colour temperature LED white
- 3000 (± 200)
- K
- Colour rendering index (CRI)
- 90
- %

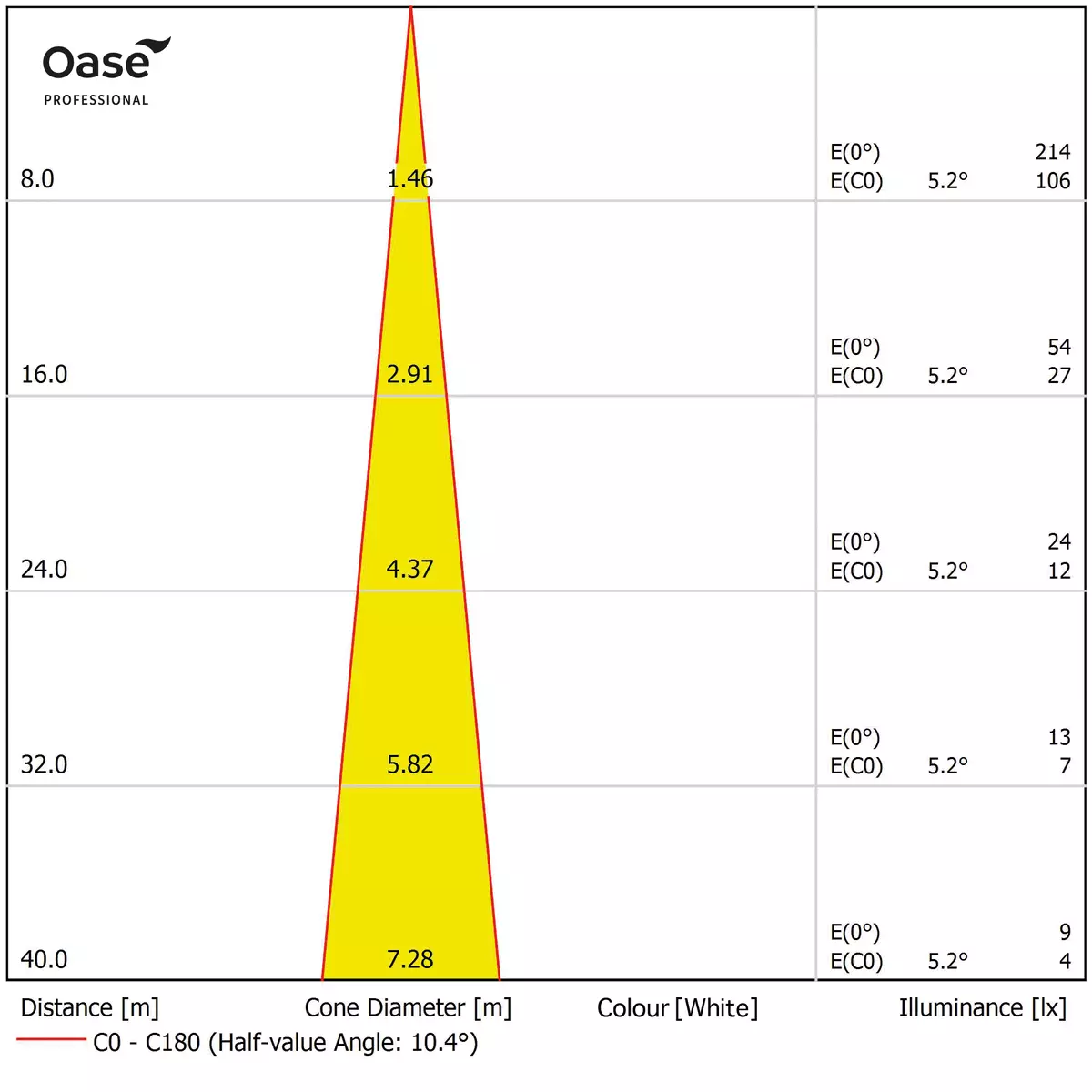

- Beam angle
- 11 Degrees (± 2)
- Luminous flux with all on
- 2205
- lm
- Rated voltage
- 24 V / DC
- Power consumption
- 72
- W
- Rated current
- 3
- A
- Dim frequency
- 2800
- Hz
- Power connection type
- 24 V DC plug
- Power cable length
- 50.00
- m
- Protection class
- IP68; 2 m
- Dimensions (Ø × H)
- 140 × 88
- mm
- Material
- Stainless steel 1.4301 (AISI 304)
- Net weight
- 10
- kg
- Stroboscope effect
- No
Downloads
- DOK_PRD_GA_17330-GA-Under-Water-Power-Supply-250-01.pdf
- DOK_PRD_GA_98485-GA-LED-Modul-W-AirFlow-Midi-Maxi-02.pdf
- DOK_PRD_DB_92579-LED-Modul-Midi-Maxi-white-001.pdf
- ZEI_PRD_3D_92579-LED-Modul-Midi-Maxi-white-001.dwg
- ZEI_PRD_AC_92579-LED-Modul-Midi-Maxi-white-001.dxf
