Floor/wall transition F 10-175 E INT
SKU: 51145
View other products in the family
Key features
- High-quality, robust stainless steel construction
- Easy installation
- Extremely corrosion resistant
Feature Details
Safe pipe penetrations through pool walls and pool floors
Simple, safe installation
Versatile applications
Made of high-quality, extremely corrosion-resistant stainless steel
Safe, large-area concrete sealing flange with grounding option
Available for foiled cymbals versions with foil clamping flange
Specifications
Specification breakdown
- Pressure-side connection
- 25
- mm
- Pressure-side connection
- 1"
- Material
- Stainless steel 1.4571 (AISI 316Ti)

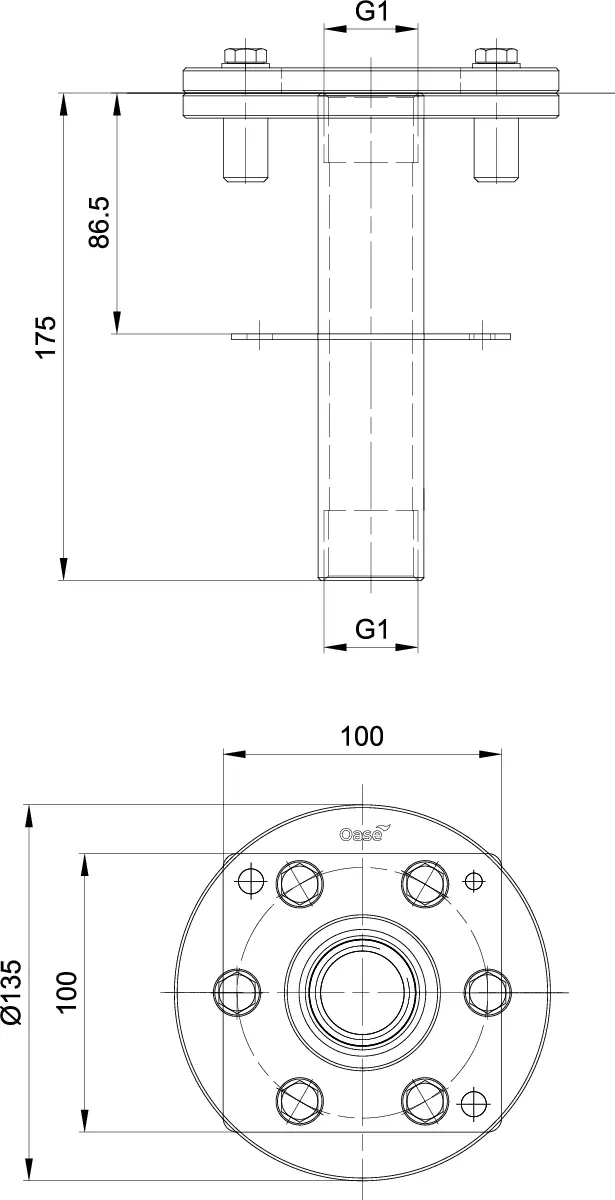

- Dimensions (L × W × H)
- 100 × 100 × 191
- mm
- Net weight
- 2.62
- kg
Downloads
- ZEI_PRD_AC_51145-BodenWanddurchfuehrungF10-175E-001.dxf
- ZEI_PRD_3D_51145-Boden-Wanddurchfuehrung-F-10-175-E-001.dwg
- DOK_PRD_DB_51145-Boden-Wanddurchfuehrung-F10-175E.pdf
- DOK_PRD_EL_51145-Boden-Wanddurchfuehrung-F10-175E.pdf
- DOK_PRD_GA_22825-Montageanweisung-04-354-22-01.pdf
