BTA 3.0-80-4 INT
SKU: 94816
View other products in the family
Key features
- Maintenance-free slide ring seal
- Enclosed impeller with high efficiency
- Protection class IP55
Feature Details

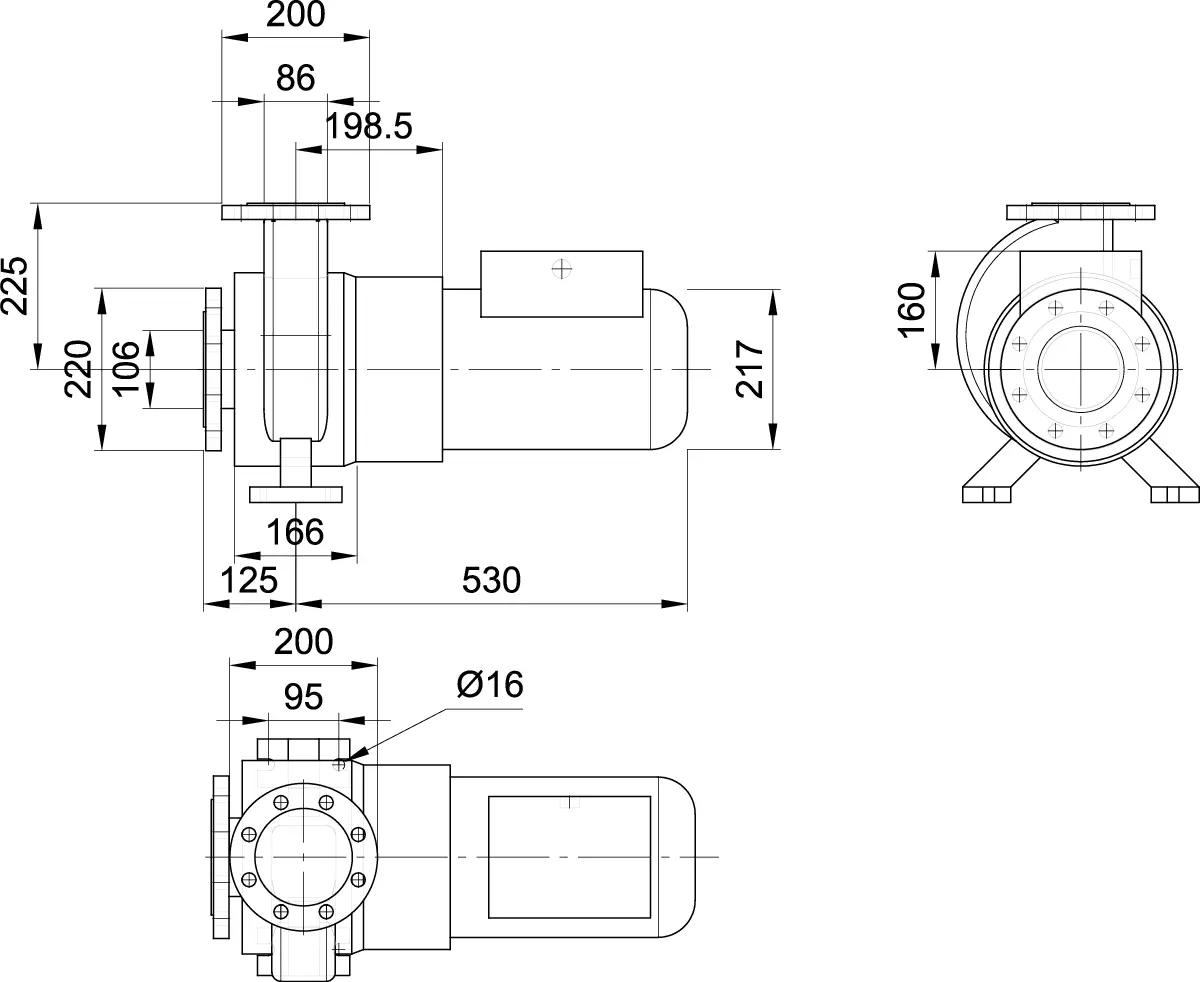

Dimensions and connections in accordance with DIN standards
Dry installation only
Specifications
Specification breakdown
- Setup type
- For dry installation only
- DN S
- 100
- mm
- DN D
- 80
- mm
- Rated current
- 6.4
- A
- Power output
- 3.0
- kW
- Number of phases
- 3
- Units
- Rated voltage
- 400
- V
- Start-up type
- Star-delta start
- Frequency
- 50
- Hz
- Power cable length
- 10.00
- m
- Material
- Grey cast iron
Downloads
- DOK_PRD_DB_94816-BTA-3-80-4.pdf
- ZEI_PRD_AC_94816-BTA-3-80-4-001.dxf
- ZEI_PRD_3D_94816-BTA-3-80-4-001.dwg
- DOK_PRD_GA_98168-GA-Pumpen-BTA-01.pdf
