AirNozzle 50 E-50 m vertical /01 INT
SKU: 48427
View other products in the family
Feature Details
Controllable via DMX with Underwater Switch 24 V DC Compact/DMX/02
Safe use under water
in the patented ProNect plug-in connection system and with IP68 protection
Compact, different designs for different water heights
Energy-efficient compressed air operation
High dynamics due to short filling times – up to ten fountain shots per minute
Saltwater version on request
Fountain heights from 30 to 70 m (also higher on request)
Slide 1 of 3
1 of 3
Specifications
Specification breakdown

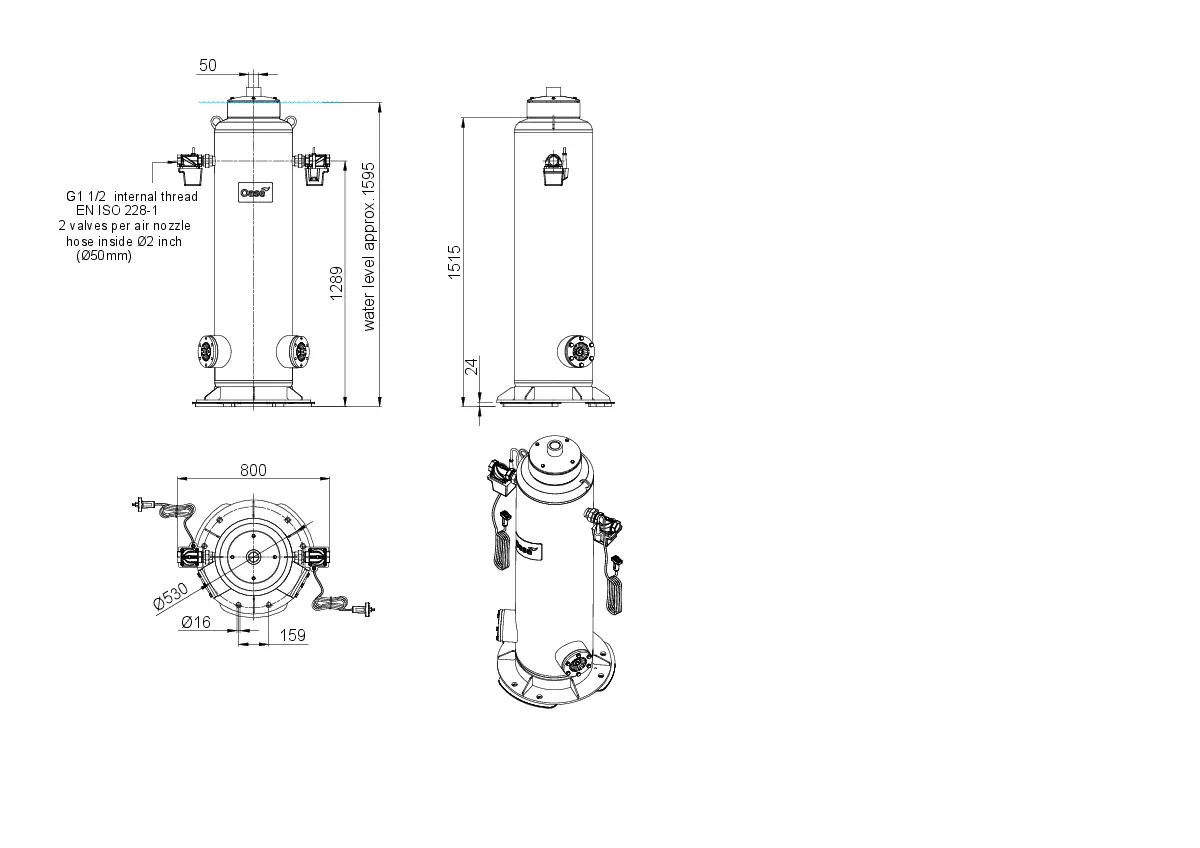

- Dimensions (L × W × H)
- 1676 × 704 × 600
- mm
- Fountain height, max.
- 50.00
- m
- Shooting frequency/water refill time
- 25
- sec.
- Amount of water per shot
- 180.00
- l
- Nozzle orifice
- 50.0
- mm
- Water level min.
- 1595
- mm
- Waterlevel max.
- 1595
- mm
- Air pressure max.
- 11
- bar
- Connection air inlet
- G 1 ½
- Power consumption
- 37.00
- W
- Rated voltage
- 24 V / DC
- Rated current
- 0.92
- A
- Power cable length
- 7.50
- m
- Power connection type
- 24 V DC plug
- Material
- Stainless steel 1.4301 (AISI 304)
- Net weight
- 79
- kg
