ProfiClear Premium Moving Bed Module US

SKU: 89196

View other products in the family

Key features

  • Mature, professional technology with more than three years of development time
  • Modern modular filter system for professional water quality where space is at a minimum
Professional modular filter system for large natural and swimming ponds up to 530 m³ and koi ponds up to 100 m³ for outstanding water quality in the smallest of spaces – thanks to particularly high filter performance with intelligent control functions and intelligent self-cleaning function for unique freedom from maintenance (drum filter module). All settings can be conveniently controlled via APP by connecting the system to the OASE Control System. The removal of pollutants is even more effective thanks to the high-performance OASE PondPads filter media and develops its optimum performance in the new fluidised bed process (moving bed). For large pond owners who want more, high degradation rates of ammonium, ammonia, nitrite and nitrate through larger Moving Bed modules for up to 150 litres of Hel-X, especially in combination with the new OASE PondPads biofilter media, ensure even greater performance.

Feature Details

  • Innovative

    bypass technology for optimal movement of the Hel-X bio-elements

Easy handling<br />The sturdy stainless steel drum is enclosed in a solid and dimensionally stable GRP Duroplast housing. The filter elements can easily be removed and replaced.<br />

Easy handling
The sturdy stainless steel drum is enclosed in a solid and dimensionally stable GRP Duroplast housing. The filter elements can easily be removed and replaced.

Quiet operation<br />Especially quiet thanks to extensive noise damping<br />

Quiet operation
Especially quiet thanks to extensive noise damping

1 of 4

Specifications

    Specification breakdown

    Dimensions (L × W × H)
    830 × 600 × 820
    mm
    Net weight
    46
    kg
    Guarantee (+ request guarantee)
    2 + 1
    Years
    Biological filter surface
    47.8
    m2
    Biological filter surface protected
    40.3
    m2
    Temperature display
    No
    Material
    GRP Duroplast
    Number of inlets
    2
    Units
    Inlet connections
    180
    mm
    Inlet connections
    180 mm
    Number of outlets
    2
    Units
    Outlet connections
    DN 150
    Sludge discharge connections
    DN 75
    Connection to
    AquaOxy 2500 - 5000
    Min. flow rate
    10000
    l/h
    Max. flow rate
    33000
    l/h
    Installation height above water level
    11.5
    cm
    Type of use
    Gravity fed system, Pump fed system
    Other
    Aeration pre-installed
    incl. 50l Hel-X 13 Biomedia
    Pollutant discharge incl. slide valve

    Downloads

    • Product instructions
    • Replacement list

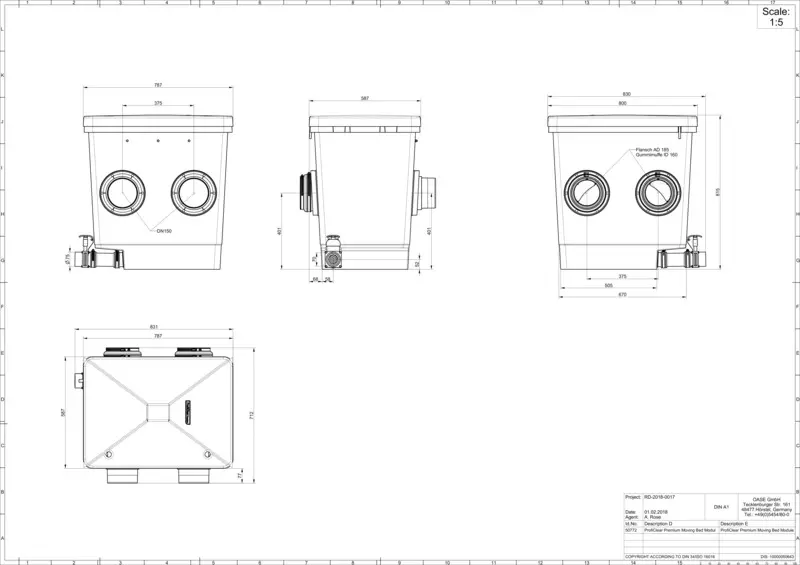

    • 2D drawing
