ProfiClear Premium Compact
ProfiClear Premium Compact M<br />The fully automatic coarse dirt separation simply rinses the dirt out of the filter thanks to drum filter technology

ProfiClear Premium Compact-M gravity OC GB

SKU: 47011

View other products in the family

Browse the product family

Key features

  • Professional compact drum filter as inexpensive alternative for smaller ponds, particularly koi ponds
  • Minimal space requirements and effective integration

Feature Details

  • Suitable for ponds up to 88.0 m3

  • Conveniently control all settings via an app with connection options for the OASE Control system; existing systems can be upgraded using the separately available upgrade kit

  • Inexpensive alternative for smaller ponds, particularly koi ponds

  • The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology

  • Available in the pump-fed principle and in the gravity-fed principle

  • Conveniently control all settings via an app with connection options for the OASE Control system

  • With the Moving Bed System for optimal water movement and water cleaning

  • High separation efficiency due to deep filtration of up to 60 μm

  • Hel-X 13 filter medium with significantly enlarged surface area for effective decomposition of nutrients and pollutants

  • Innovative and reliable product »made in Germany« (except pressure pump)

  • The filter is flushed only by cleaned pond water. Therefore a fresh water connection is not required

  • Particularly quiet operation thanks to extensive noise insulation

  • Individually removable sieve elements (no tools required) and free-wheel function

  • Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum

  • Minimal install height for full flexibility with gravity-fed systems

1 of 4
1 of 2

Specifications

    Specification breakdown

    Dimensions (L × W × H)
    885 × 685 × 820
    mm
    Power consumption, cleaning
    670
    W
    Net weight
    83.5
    kg
    Guarantee (+ request guarantee)
    2 + 1
    Years
    Biological filter surface
    38.2
    m2
    Biological filter surface protected
    32.2
    m2
    Control unit
    Microcontroller
    Temperature display
    Digital
    Coarse debris extraction
    80
    µm
    Number of nozzles/rinse quantity
    2 × 3.5 l/min
    Scavenging pump
    4 bar
    Automatic rinsing system
    manually, Sensor, Time interval
    Number of sieve elements
    6
    Units
    Filter intake surface
    1135
    cm2
    Number of inlets
    2
    Units
    Inlet connections
    DN 110
    Number of outlets
    1
    Units
    Outlet connections
    DN 110
    Sludge discharge connections
    DN 75, DN 110
    Flush trough connection
    DN 110
    Connection to
    AquaOxy 2500, Bitron Premium, ProfiClear pump chamber Compact
    Min. flow rate
    7500
    l/h
    Max. flow rate
    16500
    l/h
    Installation height above water level
    10.5
    cm
    Type of use
    Gravity fed system
    Other
    Aeration pre-installed
    incl. 40l Hel-X 13 Biomedia
    Pollutant discharge incl. slide valve

    Downloads

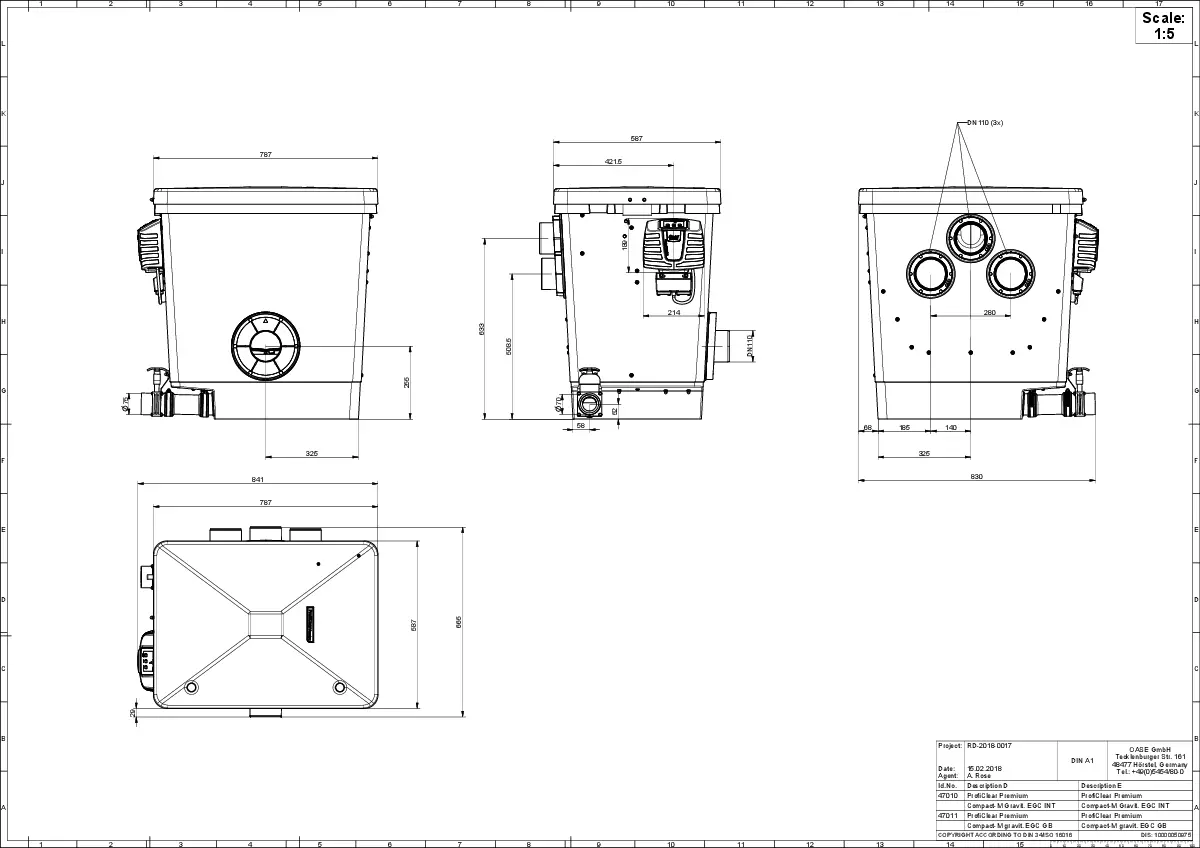

    • ZEI_PRD_AC_47011-ProfiClear-Premium-Compact-M-Gravit-OC-001.dxf
    • DOK_PRD_GA_47627-GA-ProfiClear-Premium-Compact-OC-02.pdf
    • DOK_PRD_GA_47627-GA-ProfiClear-Premium-Compact-EGC-02.pdf
