ProfiClear Premium Compact

ProfiClear Premium Compact-L pumped OC GB

SKU: 49980

View other products in the family

Browse the product family

Key features

  • Professional compact drum filter as inexpensive alternative for smaller ponds, particularly koi ponds
  • Minimal space requirements and effective integration
This innovative compact drum filter from the ProfiClear Premium range is the affordable alternative for small to medium-sized bodies of water. The compact modular filter system is particularly ideal for koi ponds up to 30 m³. Leading koi experts were consulted during the development of the series. In the pumped principle, the maximum water flow rate of the filter is 20,000 litres per hour. In this completely self-cleaning drum filter unit, the moving bed system ensures optimum water movement and cleaning. Professional Hel-X biomedia effectively break down nutrients and pollutants in the water. A depth filtration of up to 60 µm and a new Hel-X 13 filter medium with a significantly larger surface area ensure high separation efficiency.

Feature Details

  • Suitable for ponds up to 120.0 m3

  • Conveniently control all settings via an app with connection options for the OASE Control system; existing systems can be upgraded using the separately available upgrade kit

  • Inexpensive alternative for smaller ponds, particularly koi ponds

1 of 4

Specifications

    Specification breakdown

    Dimensions (L × W × H)
    1334 × 891 × 815
    mm
    Rated voltage
    230 V / 50 Hz
    Power consumption
    5
    W
    Power consumption, cleaning
    1050
    W
    Cable length
    5.00 + 1.00
    m
    Net weight
    133
    kg
    Guarantee (+ request guarantee)
    2 + 1
    Years
    Biological filter surface
    57.3
    m2
    Biological filter surface protected
    48.4
    m2
    Control unit
    Microcontroller
    Temperature display
    Digital
    Coarse debris extraction
    60
    µm
    Number of nozzles/rinse quantity
    4 × 2.5 l/min
    Scavenging pump
    6 bar
    Automatic rinsing system
    manually, Sensor, Time interval
    Material
    GRP Duroplast/stainless steel
    Number of inlets
    2
    Units
    Inlet connections
    50
    mm
    Inlet connections
    1 × 2" + Bitron
    Number of outlets
    2
    Units
    Outlet connections
    DN 110
    Sludge discharge connections
    DN 75, DN 110
    Flush trough connection
    DN 110
    Connection to
    AquaOxy 2500
    Min. flow rate
    10000
    l/h
    Max. flow rate
    20000
    l/h
    Installation height above water level
    37.0
    cm
    Type of use
    Pump fed system
    Other
    Aeration pre-installed
    incl. 60l Hel-X 13 Biomedia

    Downloads

    • DOK_PRD_GA_51990-GA-ProfiClear-Premium-Compact-L-01.pdf

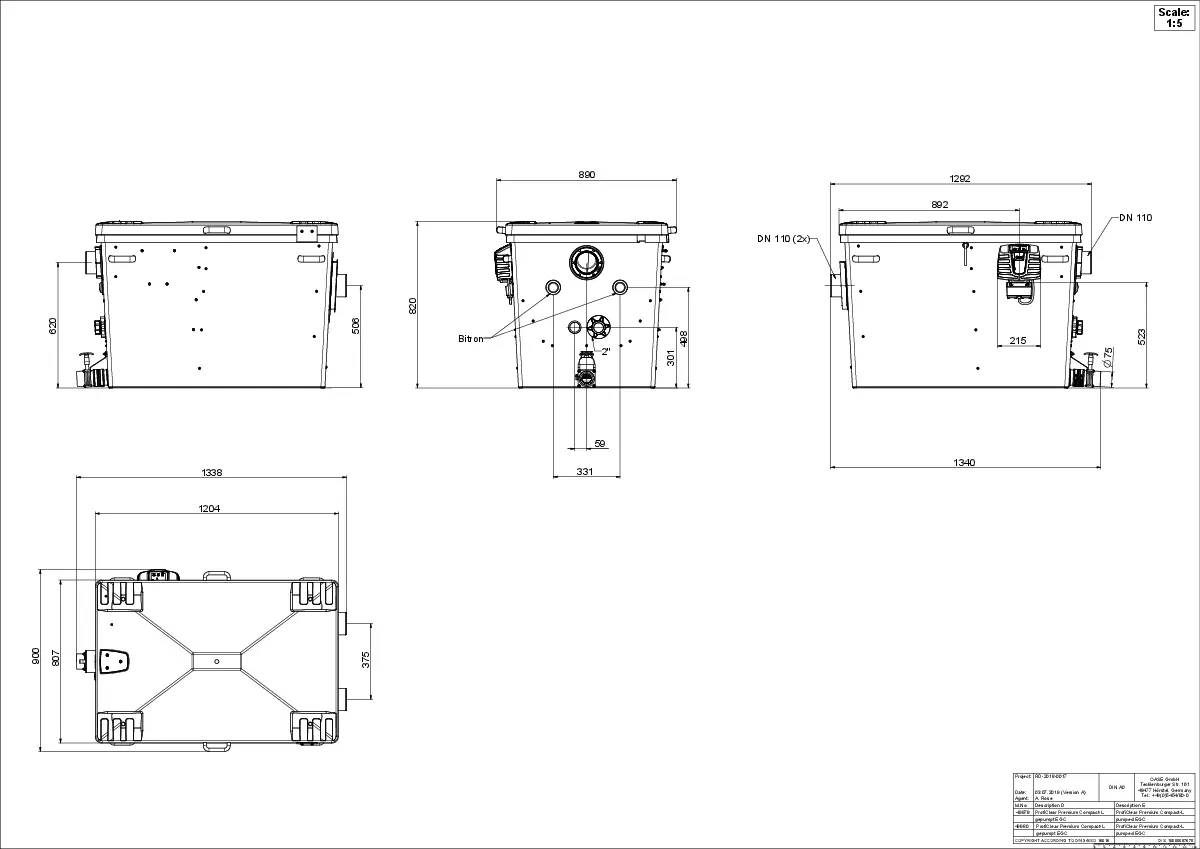

    • ZEI_PRD_AC_49979-ProfiClear-Premium-Compact-L-gepumpt-OC-001.dxf
