FiltoMatic CWS

FiltoMatic CWS 25000 INT

SKU: 50925

View other products in the family

Browse the product family

Key features

  • Up to 40% power savings thanks to UVC unit that is activated as needed (as compared to devices without power saving function in continuous operation)
  • Virtually invisible, the filter device can be buried to 70 % of the device height
  • Low maintenance and user friendly
Enjoy your pond - the work is done by your FiltoMatic CWS 25000 pond manager, because this intelligent pond filter not only cleans ponds up to 25 m³, with fish up to 12.5 m³, but also removes its own dirt inside. Thanks to the permanent temperature measurement of the water, the control unit automatically starts the integrated 24 watt UVC pre-cleaner with reflector technology and its patented cleaning function as required. This enables electricity savings of up to 40%. Intelligence pays off. The control unit also automatically activates the sludge pump, which removes the dirt inside the filter. This also reduces the growth of filamentous algae by permanently removing nutrients. Cleaning the filter sponges from the outside is almost as easy and clean - without getting your hands dirty. Trust in OASE quality, because you receive a total of up to 3 years guarantee - 2 plus 1 year requirement guarantee and the OASE clear water guarantee.

Feature Details

  • Intelligent

    The automatic control system adjusts the filter performance to the seasonal needs of the pond

  • Economical

    Up to 40% energy savings through demand-driven UVC unit with patented self-cleaning and oxygen enrichment

  • Guaranteed

    Includes OASE clear water guarantee

  • Discreet

    Almost invisible; can be buried up to 70% at the edge of the pond

  • Goodbye mud

    Automatic mud discharge, meaning less cleaning effort

  • Convenient

    The filter sponges are especially easy to clean

  • Clever design

    The UVC operating hours meter indicates when to replace bulbs

  • Compact

    Particularly space-saving design

  • Interval cleaning

    UVC and pump function can also be controlled manually

  • Goodbye algae

    Less thread algae due to constant phosphate and nutrient discharge

  • Sophisticated

    Long service life combined with high-quality filter sponges provide optimal conditions for the filter biology

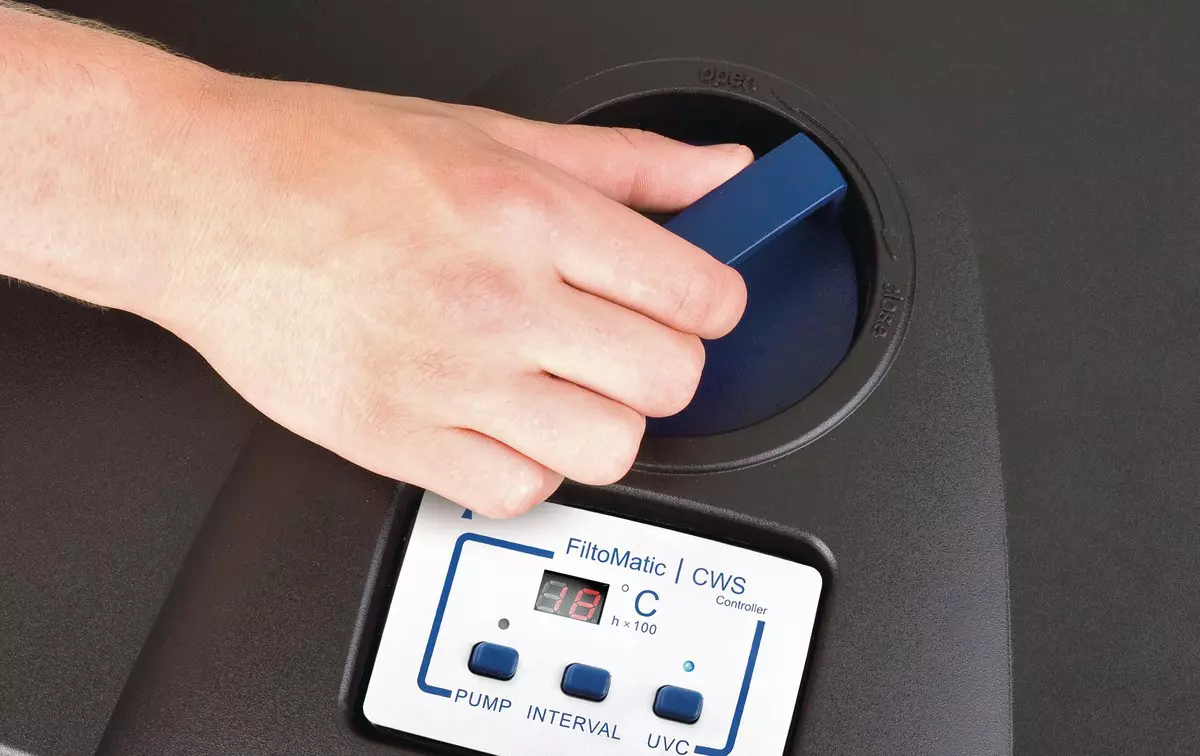

Automatic control unit<br />The innovative control system ensures energy savings through a temperature controlled UVC unit and automatic cleaning intervals.

Automatic control unit
The innovative control system ensures energy savings through a temperature controlled UVC unit and automatic cleaning intervals.

Filter cover<br />Easy to open and close with one hand. Unintentional opening is prevented through integrated lock element.

Filter cover
Easy to open and close with one hand. Unintentional opening is prevented through integrated lock element.

Cleaning<br />In addition to the automatic sludge discharge, the sponge elements are cleaned conveniently, your hands stay clean.

Cleaning
In addition to the automatic sludge discharge, the sponge elements are cleaned conveniently, your hands stay clean.

Compact design<br />Strong filter effect in the smallest space. With the FiltoCap the device can be buried so that it is virtually invisible.

Compact design
Strong filter effect in the smallest space. With the FiltoCap the device can be buried so that it is virtually invisible.

1 of 4

Specifications

    Specification breakdown

    Dimensions filter (L × W × H)
    380 × 580 × 720
    mm
    Net weight
    15.04
    kg
    Rated voltage
    230 V / 50 Hz
    Power consumption
    27
    W
    Power consumption, cleaning
    54
    W
    Guarantee (+ request guarantee)
    2 + 1
    Years
    UVC power
    24
    W
    Number of purple filter foams
    4
    Units
    Number of red filter foams
    2
    Units
    Temperature display
    Digital
    UVC operating hours meter
    8000 h
    Inlet connections
    38
    mm
    Inlet connections
    1 ½"
    Outlet connections
    DN 75
    Sludge discharge connections
    DN 40
    Max. flow rate
    6000
    l/h
    Suitable for ponds up to max.
    25.0
    m3
    Suitable for ponds with fish stock
    12.5
    m3
    Suitable for ponds with koi
    6.5
    m3

    Downloads

    • Instruction manual filter
