BioSmart Set

BioSmart Set 14000 CH

SKU: 90741

View other products in the family

Browse the product family

Key features

  • Reliable and flexible implementation – entry-level flow-through filter
  • Easy maintenance thanks to cleaning handles and bottom drain
  • Pollutant level indicator and temperature indicator for convenient filter monitoring
Perfect filter performance right from the start: As the ideal partner for your pond, the BioSmart Set 14000 flow-through filter set guarantees clear water – up to a pond size of 14 m³ (or up to 7 m³ with fish stocking). The 70 watt filter pump included in the set with its output of 3400 l/h reliably supplies the flow-through filter and is therefore perfectly matched to it. The same applies to the 11 watt UVC pre-clarifier integrated in the filter, which perfectly complements the filter performance. The 3 m long hose rounds off the complete set. Thanks to a special guide in the filter, the water is also enriched with valuable oxygen. The dirt on the filter sponges is displayed on the outside, which can be easily cleaned using the external handles. Your hands remain clean. Trust in OASE quality: You receive a 2-year guarantee plus a clear water guarantee.

Feature Details

  • Incl. OASE Clear Water Guarantee

  • Oxygen enrichment through special water channelling

  • Cleaning handles for convenient maintenance

  • Including displays for pollutant level and water temperature

  • Sludge drain for easy removal of coarse debris

  • Easy to conceal; the filter can be recessed into the ground to ⅓ of its height

  • Suitable for ponds up to 14.0 m3

  • Included in the scope of delivery

    3 m 3/4" (19 mm) hose and filter pump 3500: 70 W; 3400 l/h Qmax; 2.7 m Hmax

  • Combination of mechanical biological cleaning and effective UVC technology

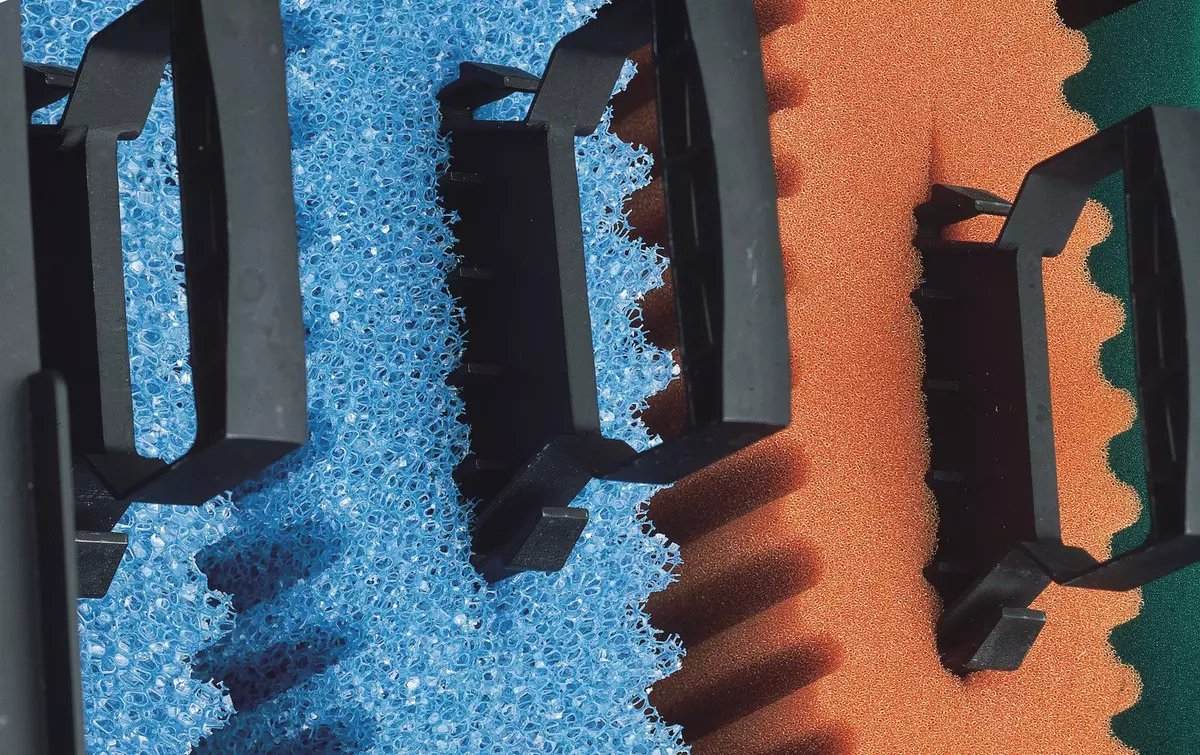

Nitrification and de-nitrification zone<br />Toxic ammonia, nitrite and nitrate are effectively transformed into harmless end products in the different foams.

Nitrification and de-nitrification zone
Toxic ammonia, nitrite and nitrate are effectively transformed into harmless end products in the different foams.

Temperature display<br />The thermometer indicates the current water temperature at all times.

Temperature display
The thermometer indicates the current water temperature at all times.

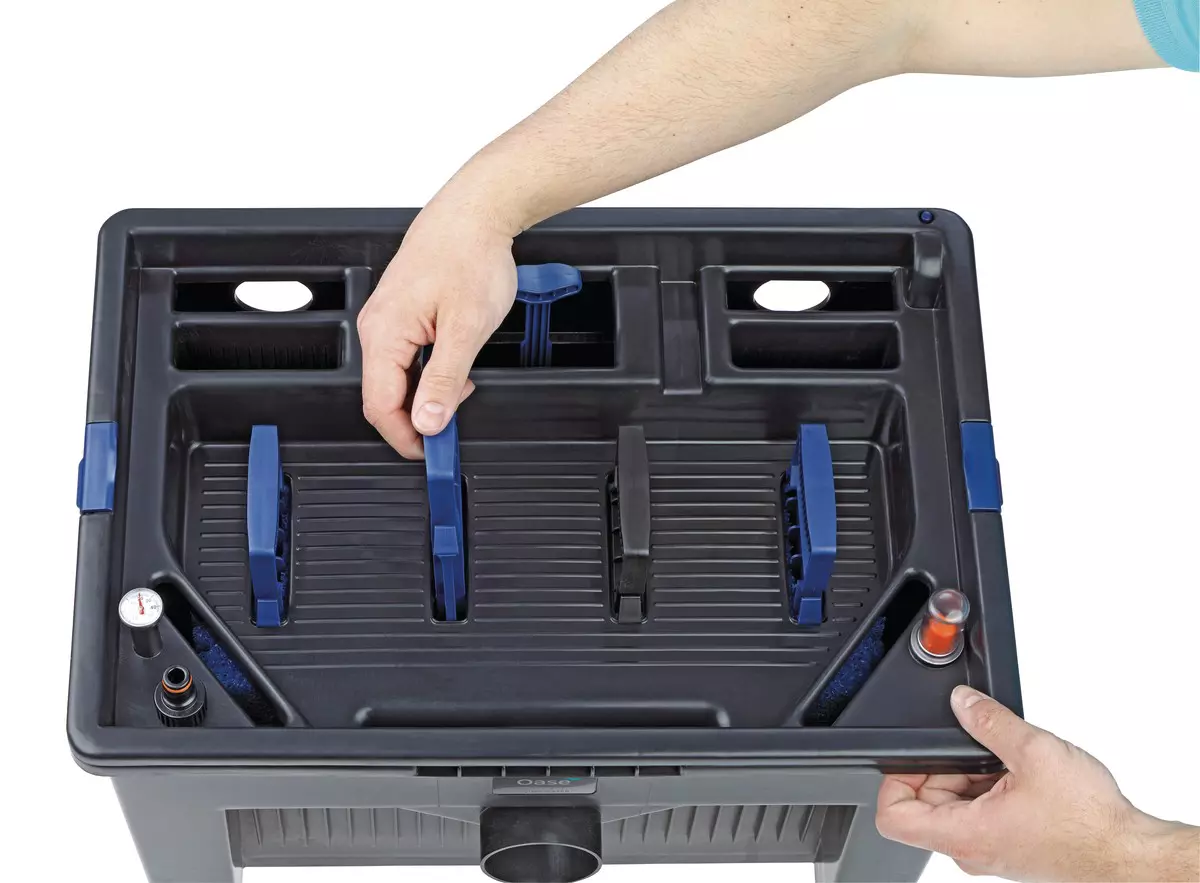

Particularly easy maintenance<br />After activating the cleaning lever, the floor discharge can be opened and coarse debris can be disposed of (only BioSmart 18000/36000).

Particularly easy maintenance
After activating the cleaning lever, the floor discharge can be opened and coarse debris can be disposed of (only BioSmart 18000/36000).

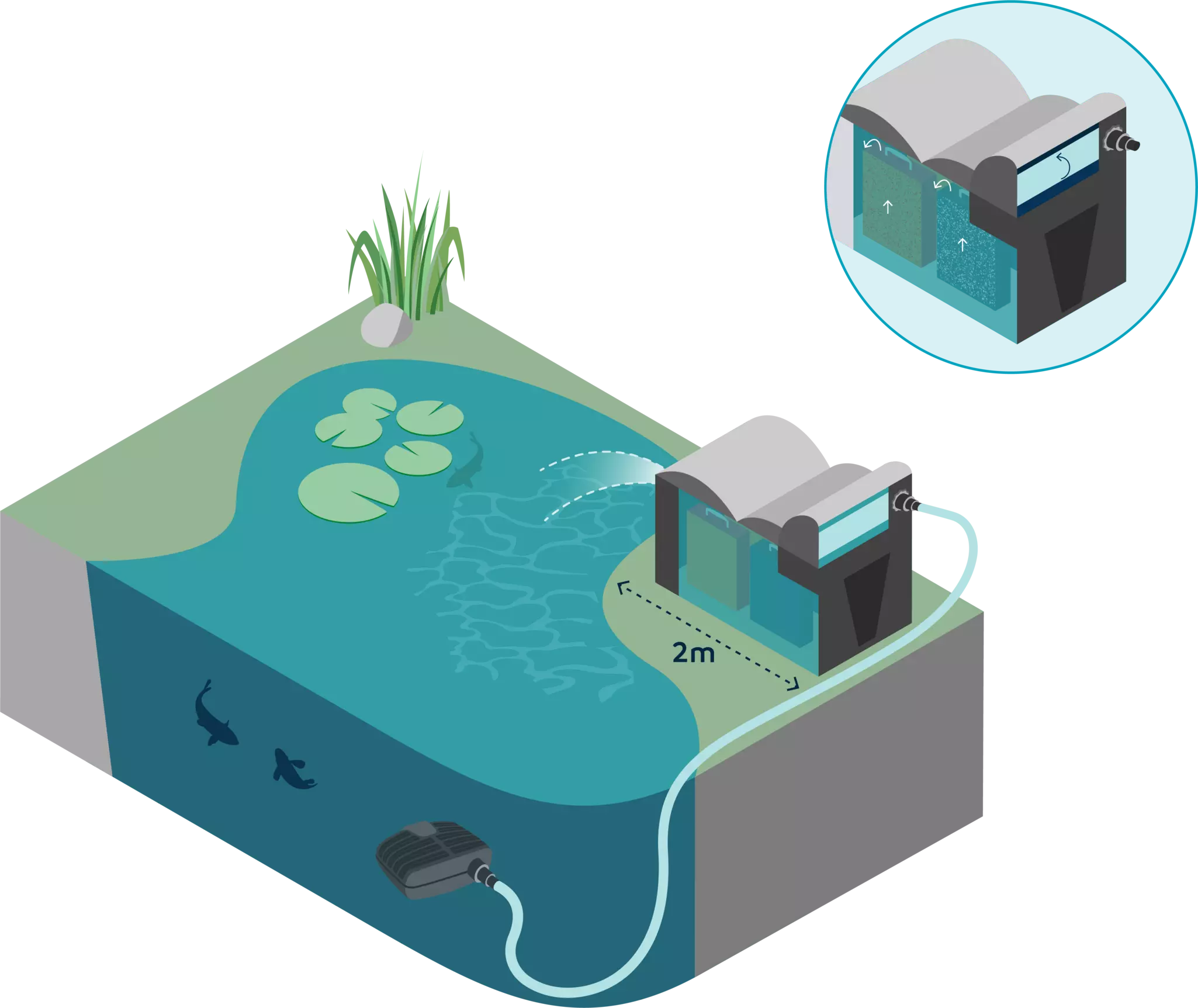

Schematic diagram<br />BioSmart UVC 16000 in combination with AquaMax Eco Classic filter and watercourse pump.

Schematic diagram
BioSmart UVC 16000 in combination with AquaMax Eco Classic filter and watercourse pump.

1 of 4

Specifications

    Specification breakdown

    Dimensions filter (L × W × H)
    380 × 560 × 410
    mm
    Net weight
    8.77
    kg
    Rated voltage
    230 V / 50 Hz
    Power consumption UVC
    14
    W
    Power cable length UVC
    3.00
    m
    Guarantee
    2
    Years
    UVC power
    11
    W
    Number of filter foams, total
    6
    Units
    Number of blue filter foams
    3
    Units
    Number of red filter foams
    3
    Units
    Temperature display
    Yes
    Inlet connections
    19 / 25 / 32 / 38
    mm
    Inlet connections
    ¾", 1", 1 ¼", 1 ½"
    Outlet connections
    DN 75
    Connections, sludge discharge
    38
    mm
    Sludge discharge connections
    1 ½"
    Corresponding filter/watercourse pump
    Filter pump 3500
    Dimensions pump (L × W × H)
    190 × 175 × 110
    mm
    Power consumption pump
    70
    W
    Max. flow rate
    5500
    l/h
    Power cable length pump
    10.00
    m
    Suitable for ponds up to max.
    14.0
    m3
    Suitable for ponds with fish stock
    7.0
    m3
    Suitable for ponds with koi
    3.5
    m3
