LED Driver

Underwater LED Driver Compact /DMX/02

SKU: 70468

Főbb jellemzők

  • Underwater LED driver Compact – waterproof, in accordance with IP68
  • Controllable via DMX-RDM
  • Suitable for sea water

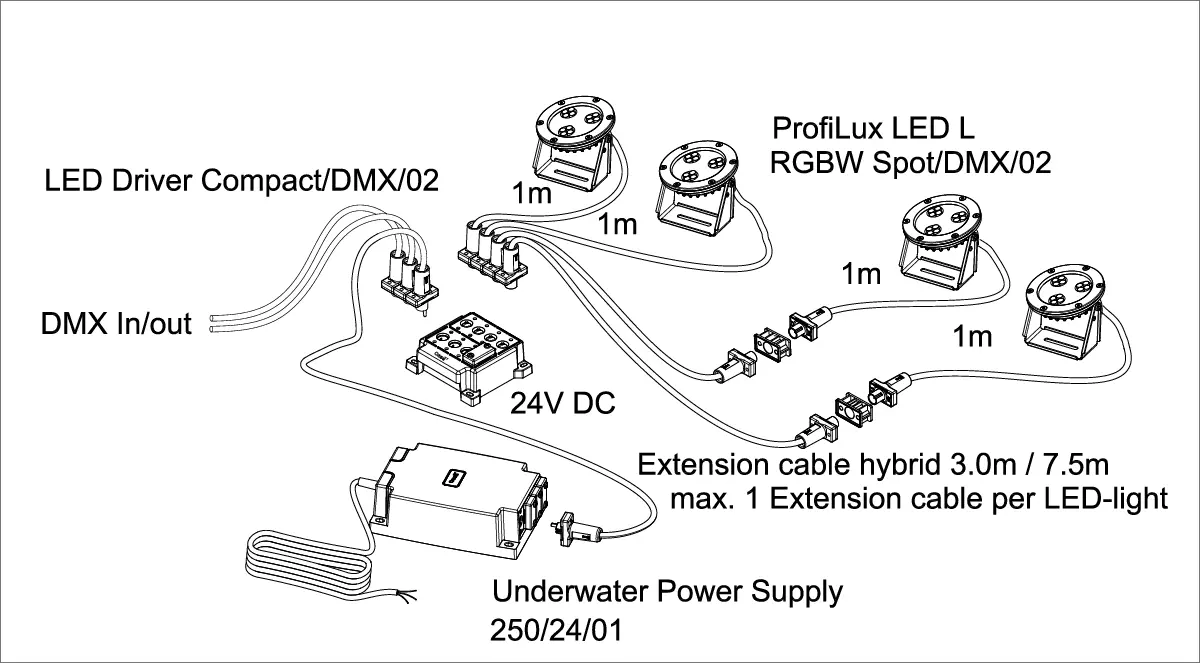

  • Increased power output up to 20 A for connecting up to 4 OASE LED spotlights
  • Consistent, homogeneous color mixing of the LED spotlights
  • Safe, simple, and fast installation of the driver

Jellemzők részletei

  • Increased power output up to 20 A for controlling and connecting up to four OASE LED spotlights

  • Consistent, homogeneous color mixing of the LED spotlights

  • Waterproof according to IP68

  • Controllable via DMX-RDM

  • 24 V DC technology

  • Safe, simple, and fast installation with the ProNect plug connection system

  • Integrated overcurrent protection ensures reliable long-term operation of the driver

  • Freely programmable hybrid ports for individual LED spotlights

  • Quick and easy function check via DMX/RDM connections

1 of 2

Műszaki adatok

    Specification breakdown

    Slot (outlet)
    4 × Hybrid (Data + Power)
    Secondary capacity max.
    480
    W
    Protection class
    IP68; 4 m
    DMX connection
    2 × socket (in/out)
    Power connection type
    2 × socket (in/out)
    Dimensions (L × W × H)
    151 × 140 × 70
    mm
    Net weight
    1.45
    kg

    Letöltések

    • DOK_PRD_DB_70468-LED-Driver-Compact-DMX-02-001.pdf
    • DOK_PRD_EL_70468-Underwater-LED-Driver-Compact-DMX-02-001.pdf
    • ZEI_PRD_3D_70468-LED-Driver-Compact-DMX-02-001.dwg
    • ZEI_PRD_AC_70468-LED-Driver-Compact-DMX-02-001.dxf
    • DOK_PRD_LV_70468-LED-Driver-Compact-DMX-02-001.pdf
    • DOK_PRD_GA_88206-GA-LED-Driver-compact-20-A-01.pdf
