Jellemzők részletei
High-quality, robust stainless steel housing and retaining bracket for bottom and nozzle pipe mounting

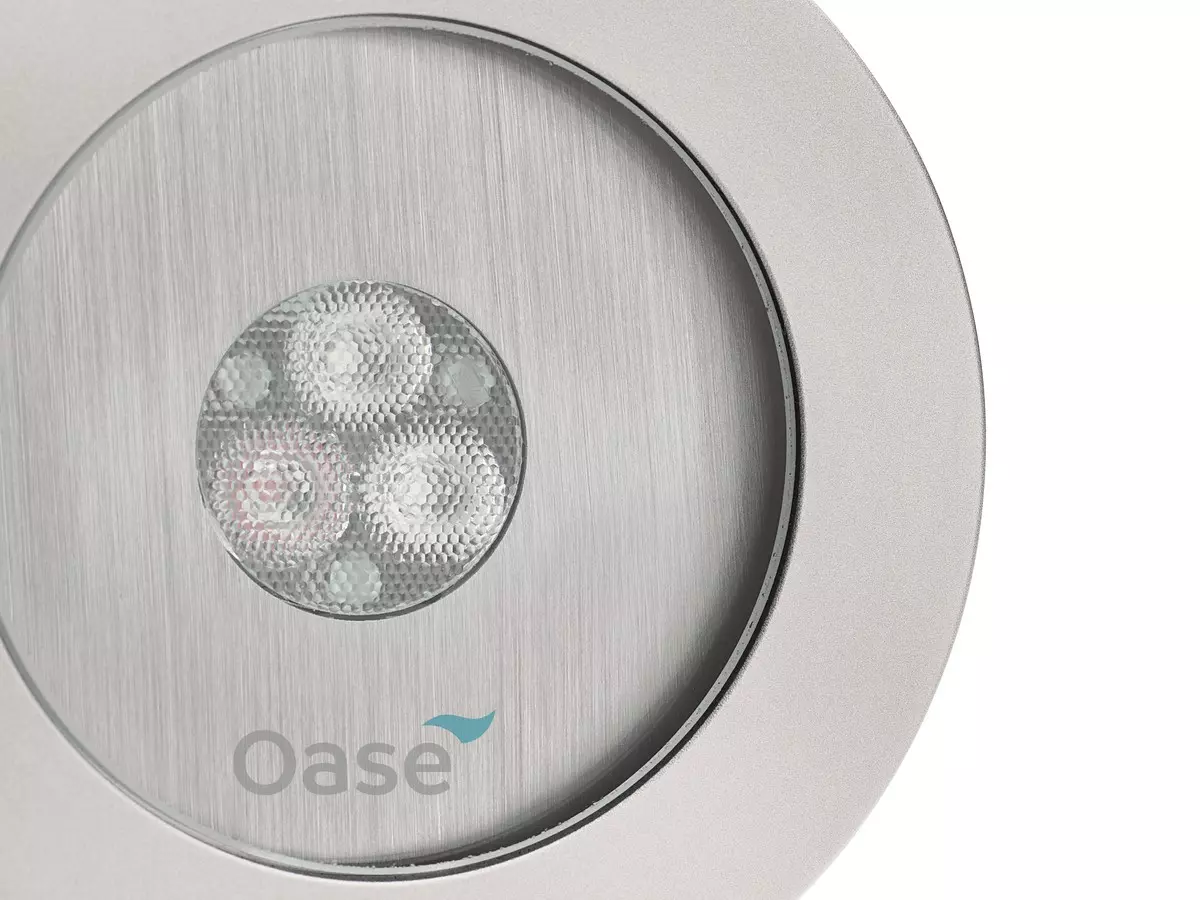

Energy-efficient RGB/RGBW LED spotlight for wet and dry installation with homogeneous coloured illumination by uniformly calibrated LEDs
Temperature-controlled, high-quality brand LEDs with a lifespan of up to 100,000 hours*
Level Stepped Glass Surface Prevents Deposits
DMX/RDM-capable with the Underwater LED-Driver Compact/DMX/02, dimmable, perfect for strobe effects

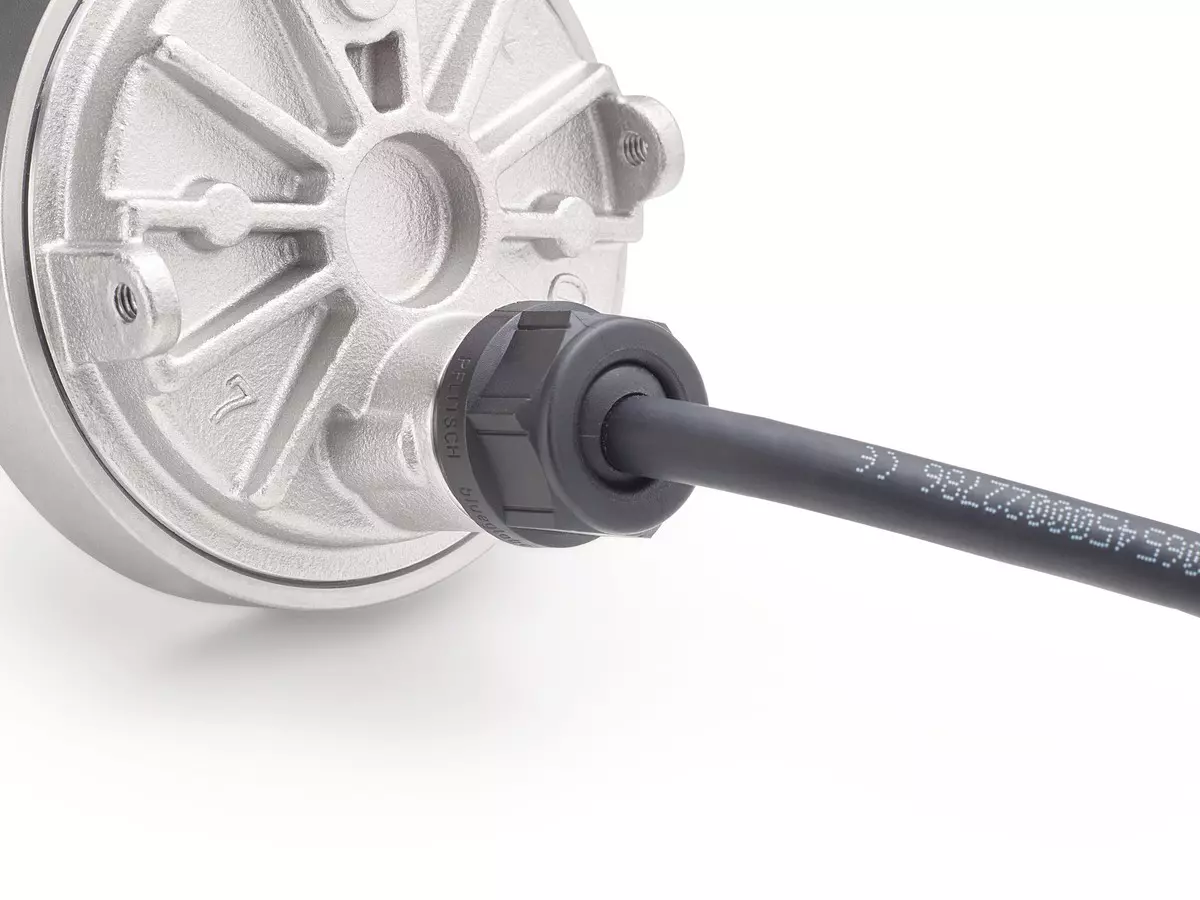

1 m cable length with patented waterproof OASE ProNect connector
Waterproof according to IP68 up to 4 m water depth
Slide 1 of 4
1 of 4
Slide 1 of 6
1 of 6
Műszaki adatok
Specification breakdown
- Certificate
- Dekra US + C
- Number of DMX channels
- 5
- Units
- DMX Channel 1
- red

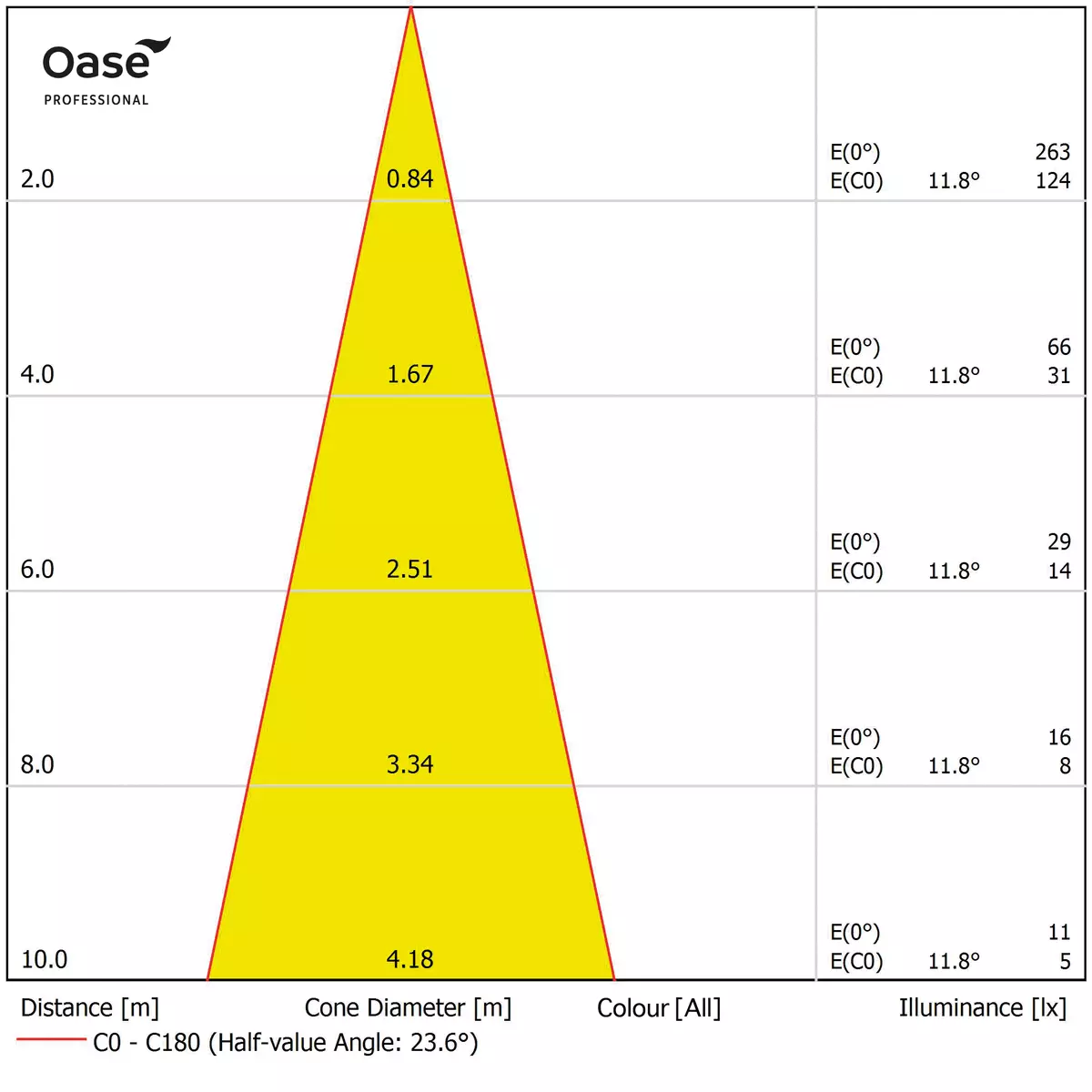

- Beam angle
- 25 Degrees (± 2)
- DMX Channel 2
- green
- Rated voltage
- 24 V / DC
- DMX Channel 3
- blue
- Power consumption
- 10
- W
- DMX Channel 4
- strobe
- DMX Channel 5
- dimmable
- Weighted energy consumption
- 11
- kWh/1000h
- Rated current
- 0.44
- A
- Luminous flux with all on
- 277
- lm
- Dim frequency
- 2800
- Hz

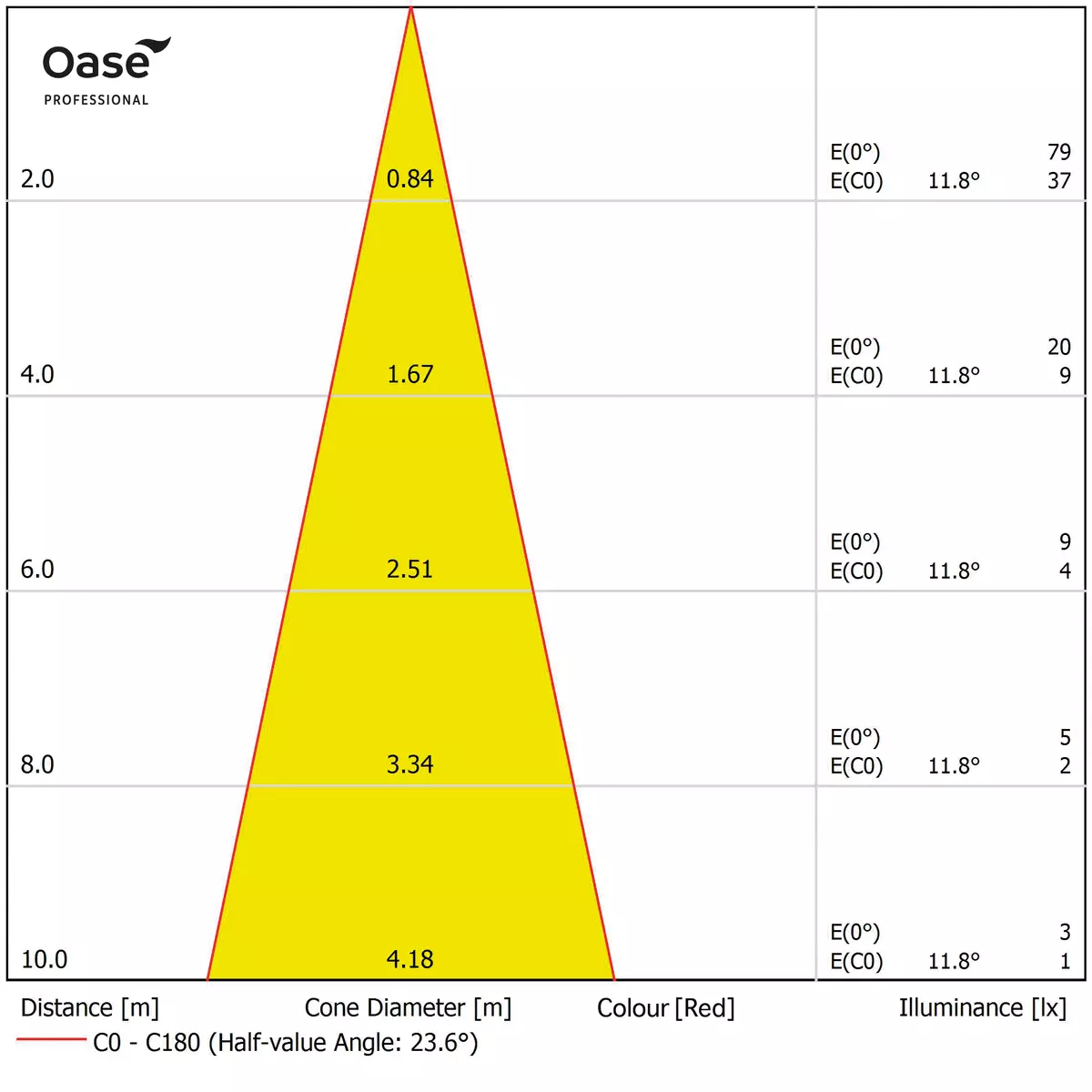

- Luminous flux red
- 83
- lm
- Power connection type
- Hybrid plug
- Luminous flux green
- 148
- lm
- Power cable length
- 1.00
- m
- Protection class
- IP68; 4 m
- Luminous flux blue
- 46
- lm

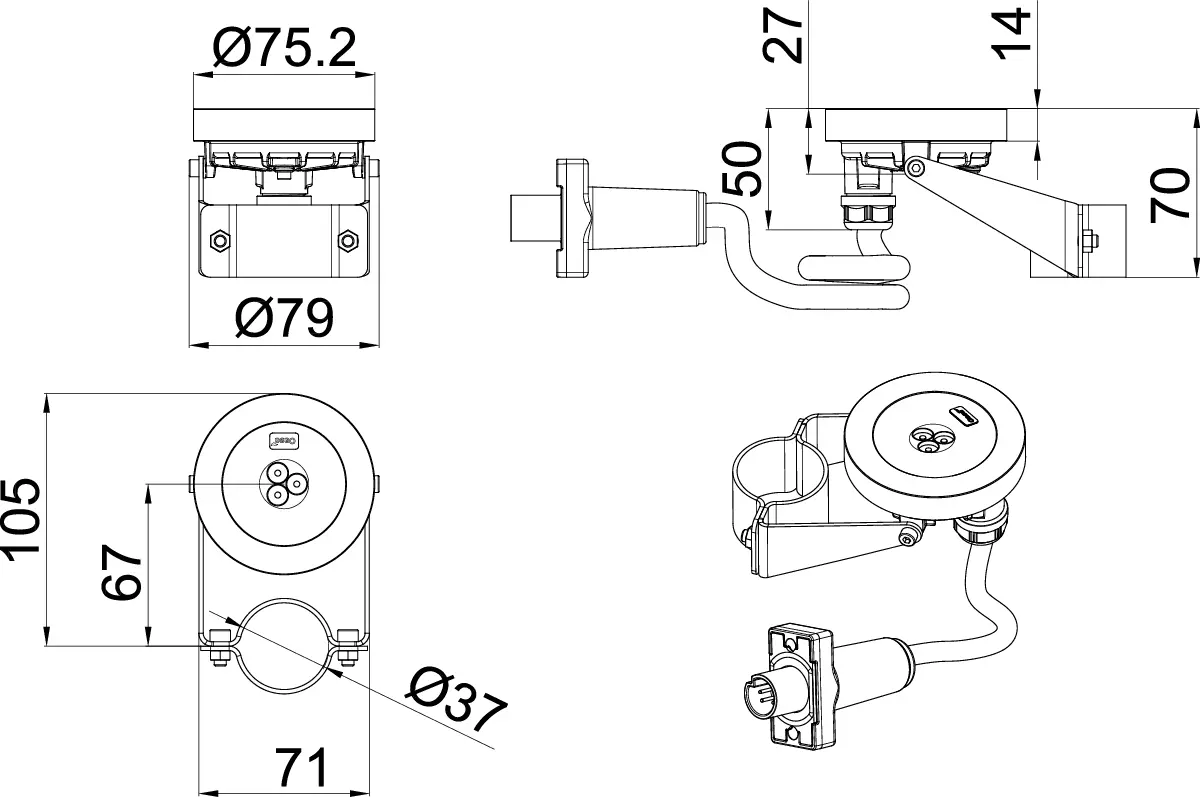

- Dimensions (Ø × H)
- 75 × 70
- mm
- Material
- Stainless steel 1.4404 (AISI 316L)
- Net weight
- 0.6
- kg
- Stroboscope effect
- 0-25 Hz
Letöltések
- ZEI_PRD_3D_72704-ProfiLux-LED-S-RGB-DMX-02-001.dwg
- ZEI_PRD_AC_72704-ProfiLux-LED-S-RGB-DMX-02-001.dxf
- ZEI_PRD_AC_72704-ProfiLux-LED-S-RGB-DMX-02-System-001.dxf
- ZEI_PRD_LDT_72704-ProfiLux-LED-S-RGB-DMX-02.zip
- DOK_PRD_EL_72704-ProfiLux-LED-S-RGB-DMX-02-001.pdf
- DOK_PRD_DB_72704-ProfiLux-LED-S-RGB-DMX-02.pdf
- DOK_PRD_LV_72704-ProfiLux-LED-S-RGB-DMX-02.pdf
- DOK_PRD_GA_91474-GA-LED-FT-RGBW-steuerbar-01.pdf
