ProfiLux Basic LED L RGB Flood /DMX/02
SKU: 70133
View other products in the family
Jellemzők részletei
1 m cable length with patented waterproof OASE ProNect connector
High-quality stainless steel housing with robust bracket and fine adjustment
Energy-efficient RGB LED spotlight for wet and dry installation with homogeneous coloured illumination by uniformly calibrated LEDs
Temperature-controlled, high-quality brand LEDs with a lifespan of up to 50,000 hours*
Waterproof according to IP68 up to 2 m water depth
DMX/RDM-capable with the Underwater LED-Driver Compact/DMX/02, dimmable, perfect for strobe effects
Galvanic isolation between DMX and 24 V DC
Slide 1 of 5
1 of 5
Slide 1 of 6
1 of 6
Műszaki adatok
Specification breakdown
- Certificate
- MET US + C
- Number of DMX channels
- 5
- Units
- DMX Channel 1
- red

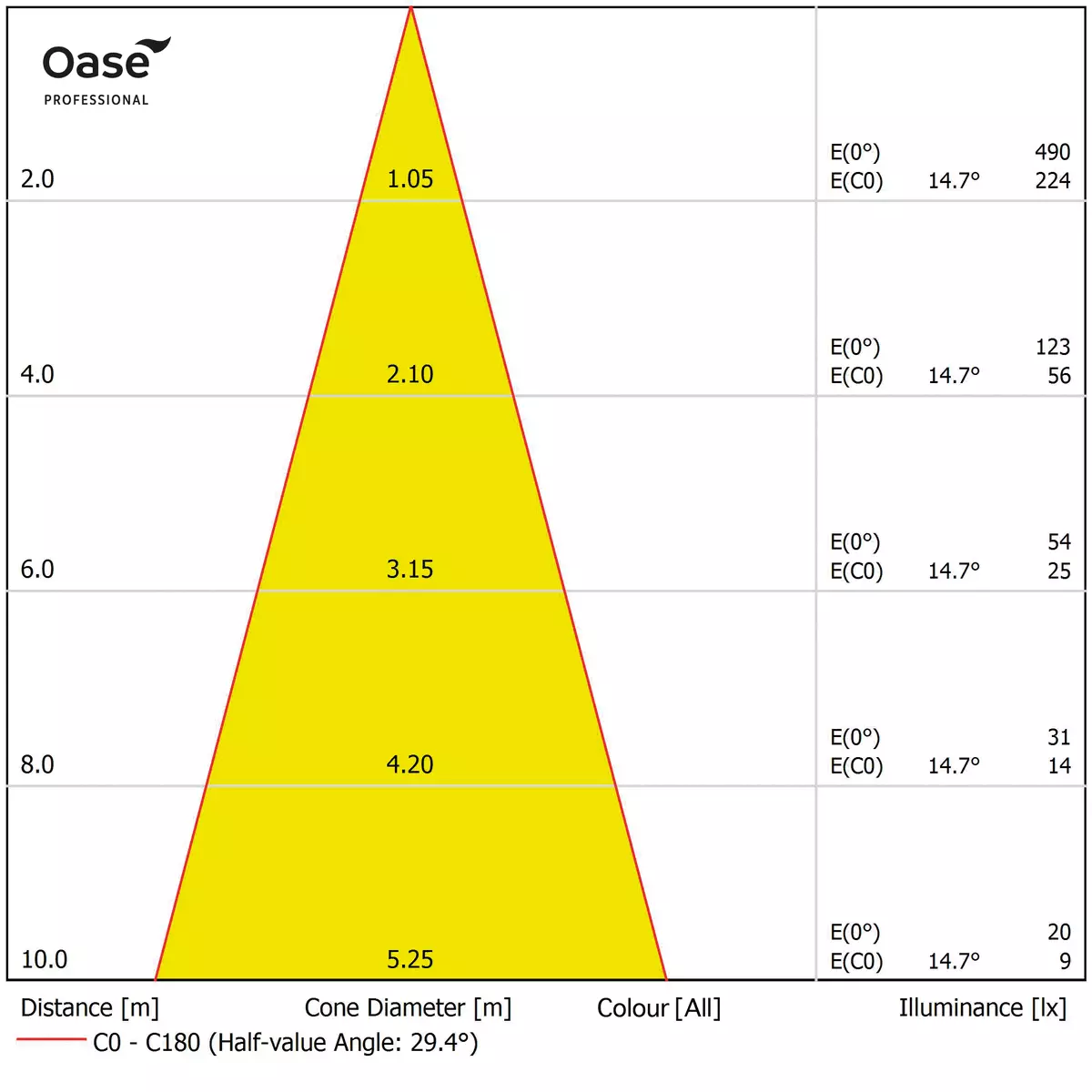

- Beam angle
- 31 Degrees (± 2)
- DMX Channel 2
- green
- Rated voltage
- 24 V / DC
- DMX Channel 3
- blue
- Power consumption
- 12
- W
- DMX Channel 4
- strobe
- DMX Channel 5
- dimmable
- Weighted energy consumption
- 13.2
- kWh/1000h
- Rated current
- 0.6
- A
- Luminous flux with all on
- 573
- lm
- Dim frequency
- 2800
- Hz
- Luminous flux red
- 172
- lm
- Power connection type
- Hybrid plug
- Luminous flux green
- 307
- lm
- Power cable length
- 1.00
- m
- Protection class
- IP68; 2 m
- Luminous flux blue
- 94
- lm
- Dimensions (Ø × H)
- 140 × 88
- mm
- Material
- Stainless steel 1.4301 (AISI 304)
- Net weight
- 1.1
- kg
- Stroboscope effect
- 0-25 Hz
Letöltések
- ZEI_PRD_3D_70133-ProfiLux-Basic-LED-L-RGB-Flood-DMX-02.dwg
- ZEI_PRD_AC_70133-ProfiLux-Basic-LED-L-RGB-Flood-DMX-02.dxf
- ZEI_PRD_AC_70133-ProfiLux-Basic-LED-L-RGB-Flood-DMX-02-System.dxf
- ZEI_PRD_LDT_70133-ProfiLux-Basic-LED-L-RGB-Flood-DMX-02.zip
- DOK_PRD_LV_70133-ProfiLux-Basic-LED-L-RGB-Flood-DMX-02.pdf
- DOK_PRD_EL_70133-ProfiLux-Basic-LED-L-RGB-Flood-DMX-02-001.pdf
- DOK_PRD_DB_70133-ProfiLux-Basic-LED-L-RGB-Flood-DMX-02.pdf
- DOK_PRD_GA_70195-GA-ProfiLux-Basic-RGB-LED-L-XL-01.pdf
