Adapter G 15 / NPT 15 Silver INT
SKU: 51027
View other products in the family
Key features
- Easy installation
Feature Details
Adapter for connecting G and NPT threads
Available for connections of G 1/NPT 1", G 1 ½/NPT 1 ½", G 2/NPT 2" and G 3/NPT 3"
Easy to assemble
Suitable for use in fresh and pool water
Slide 1 of 2
1 of 2

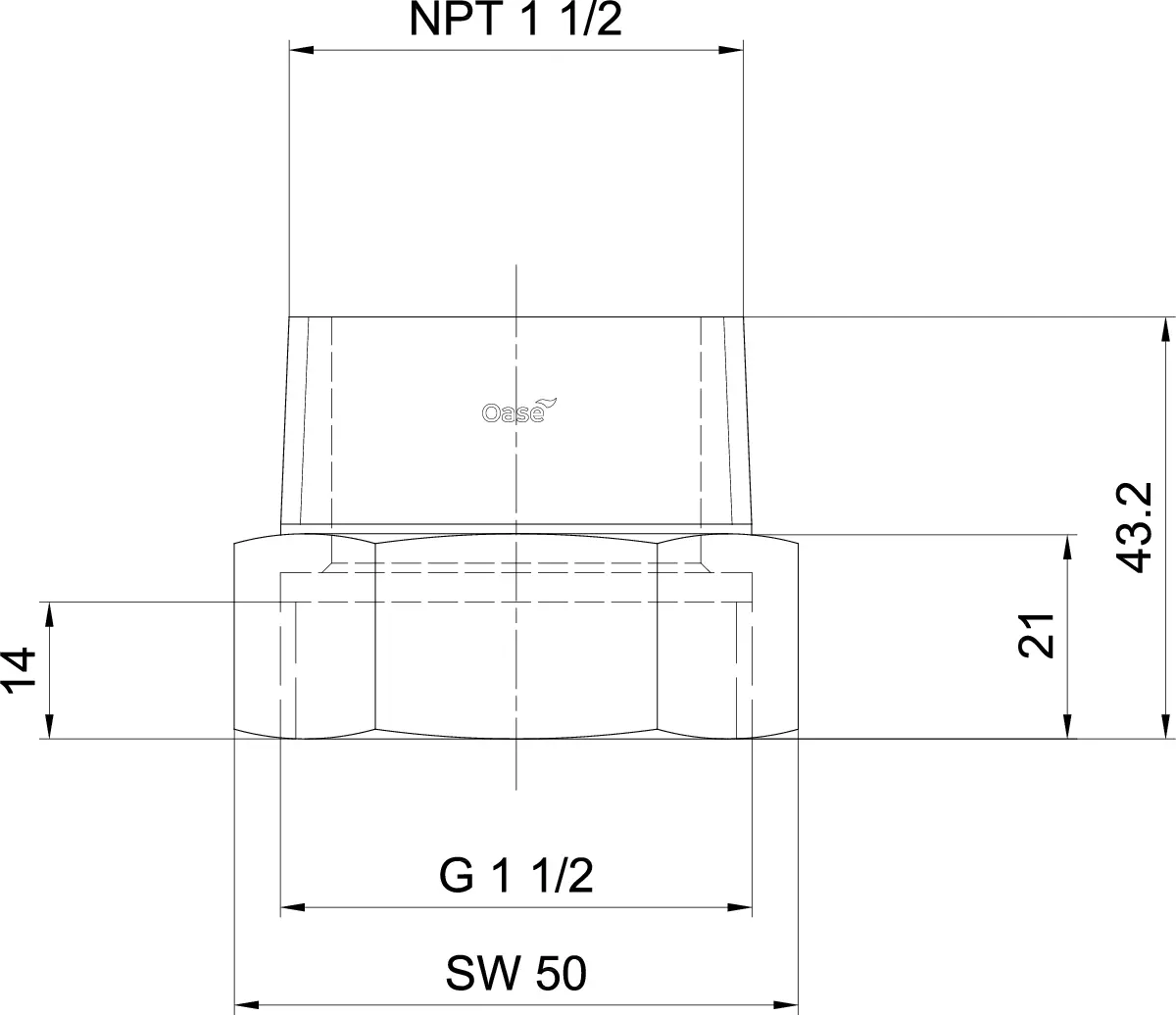

Specifications
Specification breakdown
- A
- 43
- mm
- B
- 21
- mm
- C
- 14
- mm
- SW
- 50
- mm
- G
- 1.5
- in.
- Material
- Brass, nickel-plated
- Net weight
- 0.9
- kg
Downloads
- ZEI_PRD_AC_51027-AdapterG15-NPT15Silber-001.dxf
- DOK_PRD_EL_51027-Adapter-G-15-NPT-15-Silber-2012.pdf
- DOK_PRD_DB_51026-AdapterG10-NPT10Silber.pdf
- ZEI_PRD_3D_51027-AdapterG15-NPT15Silber-001.dwg
