Varionaut 400 /DMX/02

Misc

Motor Type / Electronic

220 - 240 V, AC, DMX-RDM controlled

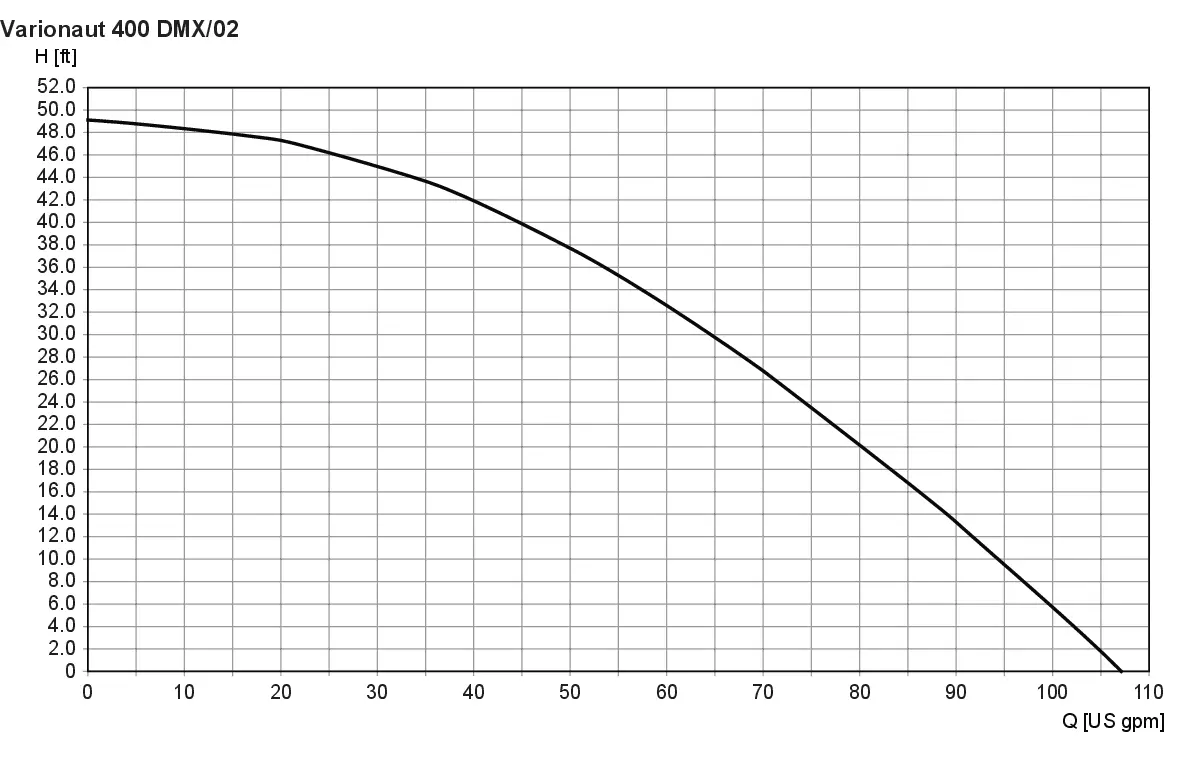

Delivery head – H max.

15.00

m

Flow rate Q max.

400

l/min

Flow rate Q min. (Offset mode – DMX 0)

30

l/min

Active power consumption max.

730

W

Apparent power consumption max.

800

VA

Power consumption at min. fountain height

25

W

Power consumption at max. fountain height

730

W

Rated current

3.5

A

Rated voltage

220 - 240 V / AC

Dynamic behavior, speed: time for full fountain height from 0 to 100%

1.1 s (Comet 15 - 15)

Start-up time after applying the mains voltage

< 3

sec.

Switching frequency/rest period

1 × per minute / 10 s

Environmental condition: submersible application

Water temperature: min. +39.2 °F to max. +95 °F

Environmental condition: dry application

86°F max with natural convection, 104°F max with forced cooling, no direct sunlight allowed

Protection class

IP68; 4 m

Protection class (EN 61140)

I

Installation position

Horizontal

Minimum distance to neighboring devices

100

mm

Immersion depth max.

4.00

m

Suction-side connection

G 2

Pressure-side connection

G 2

DMX-RDM connection type

DMX-Box /01

Number of DMX channels

2

Units

DMX Channel 1

Function

DMX Channel 2

Speed

Dimensions (L × W × H)

524 × 213 × 266

mm

Material

Stainless steel 1.4571 (AISI 316Ti) / Plastic

Net weight

14.22

kg
