Kenmerkdetails
Transition from individual 24V voltage and DMX lines to the ProNect connection system
Loop-through possible from
o the DMX bus by connecting two DMX lines o the supply voltage by connecting two 24V-DC cables incl. earthing cable
Magnetic switch included for setting the end resistance at the last bus node of the DMX line
Variable nipples allow the use of different cable cross-sections (6 mm–16 mm)
Supplied multiple grommet allows the use of single wires (4 mm–7 mm)
Supplied with a casting material for safe protection of the wiring
Overhead installation position of the box allows wiring in an ergonomic position
UL-certified
Slide 1 of 3
1 of 3
Specificaties
Specification breakdown
- Suitable for cable diameter
- 6-17
- mm
- Number of terminals
- 12
- Units
- Protection class
- IP68

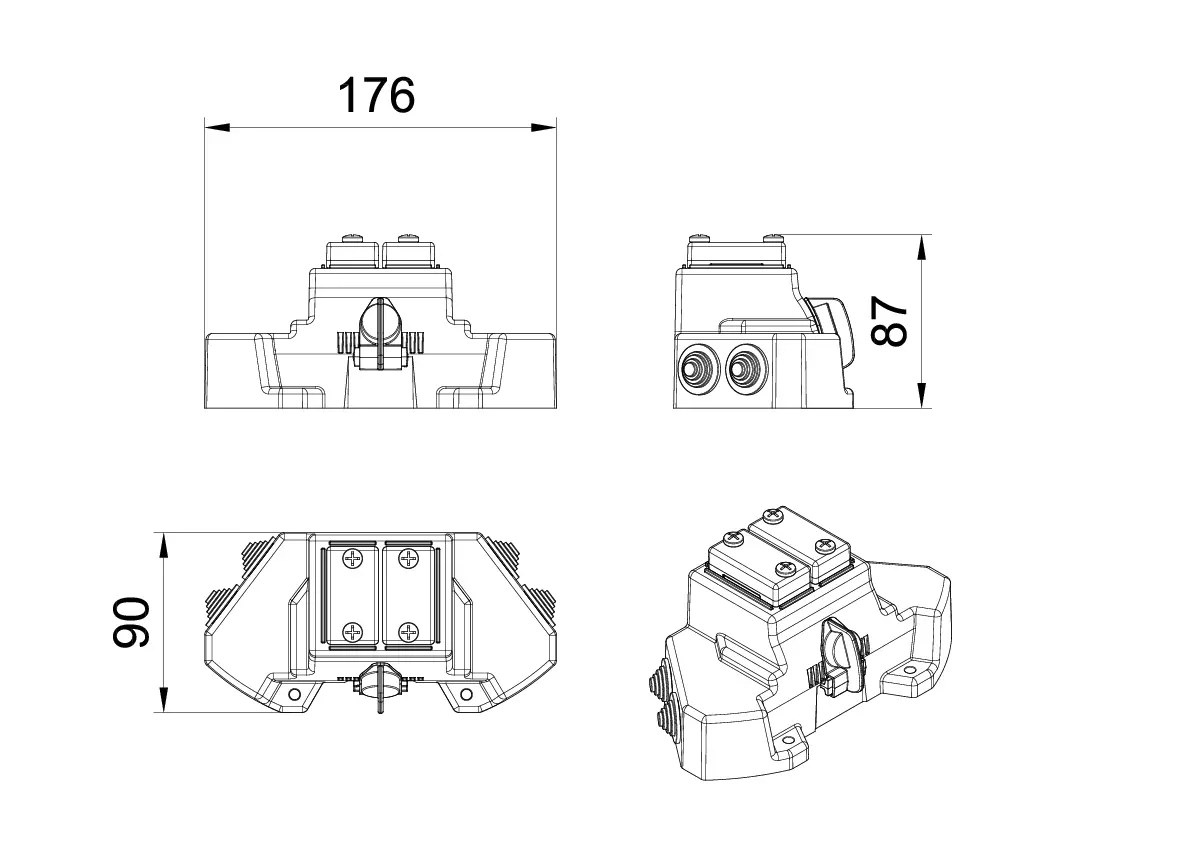

- Dimensions (L × W × H)
- 176 × 90 × 87
- mm
- Material
- Plastic
- Net weight
- 1.1
- kg
