Multi Directional Drive 2D

Multi Directional Drive S 2D /DMX/02

SKU: 72887

View other products in the family

Browse the product family

Kenmerkdetails

  • Robust stainless steel design

  • Energy-efficient motor, 24 V DC

  • Individually controllable swivel drive with two axes in x and y direction for dynamic effects with different nozzles and fountain heights up to 8 m

  • Versatile movement possibilities due to swivel range up to 90° each on the x-axis and y-axis

  • Individual effects

    suitable for different nozzles and minimum water height of 300 mm and maximum water height of 390 mm

  • Control via DMX/RDM

  • Safety low voltage 24 V DC

  • For fresh and pool water

1 of 5

Specificaties

    Specification breakdown

    Number of DMX channels
    8
    Units
    DMX Channel 1 x axe
    Position
    DMX Channel 2 x axe
    Fine
    DMX Channel 3 x axe
    Speed
    DMX Channel 4 x axe
    Function
    DMX Channel 1 y axe
    Position
    DMX Channel 2 y axe
    Fine
    DMX Channel 3 y axe
    Speed
    DMX Channel 4 y axe
    Function
    Max. operating pressure
    1.3
    bar
    Water level min.
    300
    mm
    Waterlevel max.
    390
    mm
    Swing Range - Factory
    90
    °
    Swing Range - adjustable
    90
    °
    Swing Speed max.
    72.00
    °/sec.
    Connection nozzles
    G 1 ½ (internal thread)
    Pressure-side connection
    G 2
    Power consumption
    44
    W
    Rated voltage
    24 V / DC
    Rated current
    1.8
    A
    Power connection type
    Power-Box 24 V DC /01
    DMX-RDM connection type
    DMX-Box /01
    Protection class
    IP68

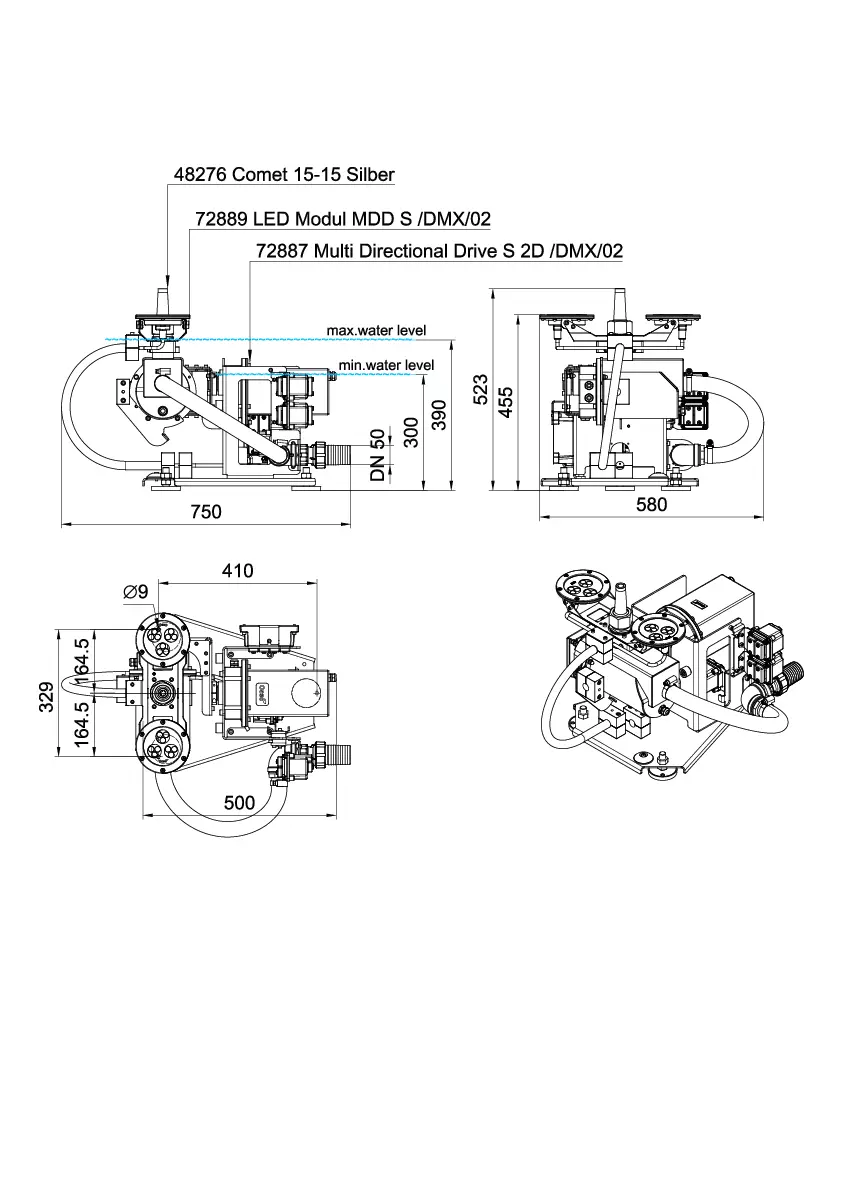

    Dimensions (L × W × H)
    606 × 541 × 390
    mm
    Material
    Stainless steel 1.4301 (AISI 304)
    Net weight
    31
    kg

    Downloads

    • ZEI_PRD_3D_72887-Multi-Directional-Drive-S-2D-DMX-02-001.dwg
    • ZEI_PRD_AC_72887-Multi-Directional-Drive-S-2D-DMX-02-001.dxf
    • ZEI_PRD_AC_72887-Multi-Directional-Drive-S-2D-DMX-02-LED-Modul-Cluster-001.dxf
    • ZEI_PRD_AC_72887-Multi-Directional-Drive-S-2D-DMX-02-LED-Modul-Komet-001.dxf
    • ZEI_PRD_AC_72887-Multi-Directional-Drive-S-2D-DMX-02-Pumpe-UPS-001.dxf
    • DOK_PRD_DB_72887-Multi-Directional-Drive-S-2D-DMX-02-001.pdf
    • DOK_PRD_EL_72887-Multi-Directional-Drive-S-2D-DMX-02-001.pdf
    • DOK_PRD_LV_72887-Multi-Directional-Drive-S-2D-DMX-02-001.pdf
    • DOK_PRD_GA_73036-GA-MDD-S-DMX-02-01.pdf
