Efficient and environmentally friendly mechanical water filtration
AFM filter medium significantly extends the cleaning intervals in water systems
Compilation of individual, holistic solutions consisting of sand filter, quartz sand/AFM filter medium and automatic backwash Eurotronik
Filter operation possible in parallel to or independently of the operating hours of the system
Filter complete with container made of glass fibre reinforced plastic, pump and multi-port valve, compact and easy to install pre-assembled on plastic pallet
Easy cleaning
When the filter is full, the automatic backwash directs the collected dirt into the duct
Slide 1 of 4
1 of 4
Specifiche
Specification breakdown

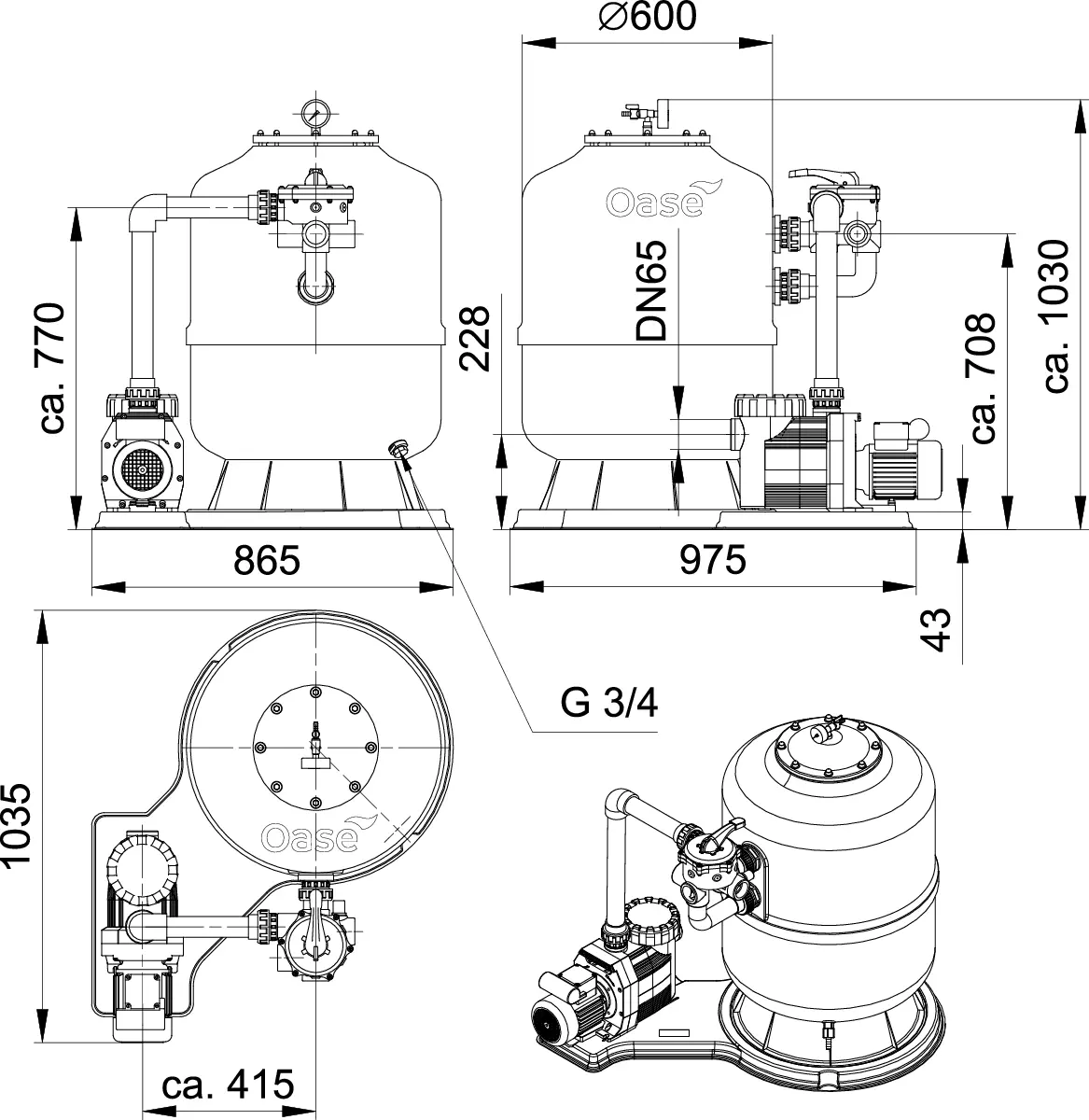

- Dimensions (L × W × H)
- 1000 × 870 × 1100
- mm
- Filter tank diameter
- 600
- mm
- Filter surface
- 0.28
- m2
- Recirculation capacity at 8 m wc
- 13
- m3/h
- Filter speed at 8 m wc
- 50
- m/h
- Reverse rinse speed
- 50
- m/h
- Reverse rinse duration
- ca. 2 - 4 Min.
- Water requirement per reverse rinse
- ca. 650 l in 3 Min.
- Grain of the filter material
- 0.4-1.0
- mm
- Quantity of the filter material
- ca. 125 kg
- Max. operating pressure
- 2.5
- bar
- Suction-side connection
- 2"
- Pressure-side connection
- 50
- mm
- Pressure-side connection
- 1 ½"
- Connection - back-flush
- 50
- mm
- Connection - back-flush
- 1.5
- Power consumption
- 970
- W
- Rated current
- 4.7
- A
- Rated voltage
- 230
- V
- Frequency
- 50
- Hz
- Protection class
- IPX4
- Net weight
- 46
- kg
- Material filter
- GRP
