Liner clamping flange 70 T KD INT
SKU: 57473
View other products in the family
Dettagli delle funzionalità
Elegant and professional connection to the Cable transitions
Suitable for normal pool liners with or without fabric reinforcement
Max. thickness
2.5 mm (not suitable for sealing strips according to DIN 18195)
Incl. seal and screws
Connection DN 70/DN 100 or 70 mm/100 mm in conjunction with the concrete part 70/100 T
Liner clamping flange for sealing liners
Slide 1 of 4
1 of 4
Specifiche
Specification breakdown
- Connection
- DN 70
- Connection
- 70
- mm

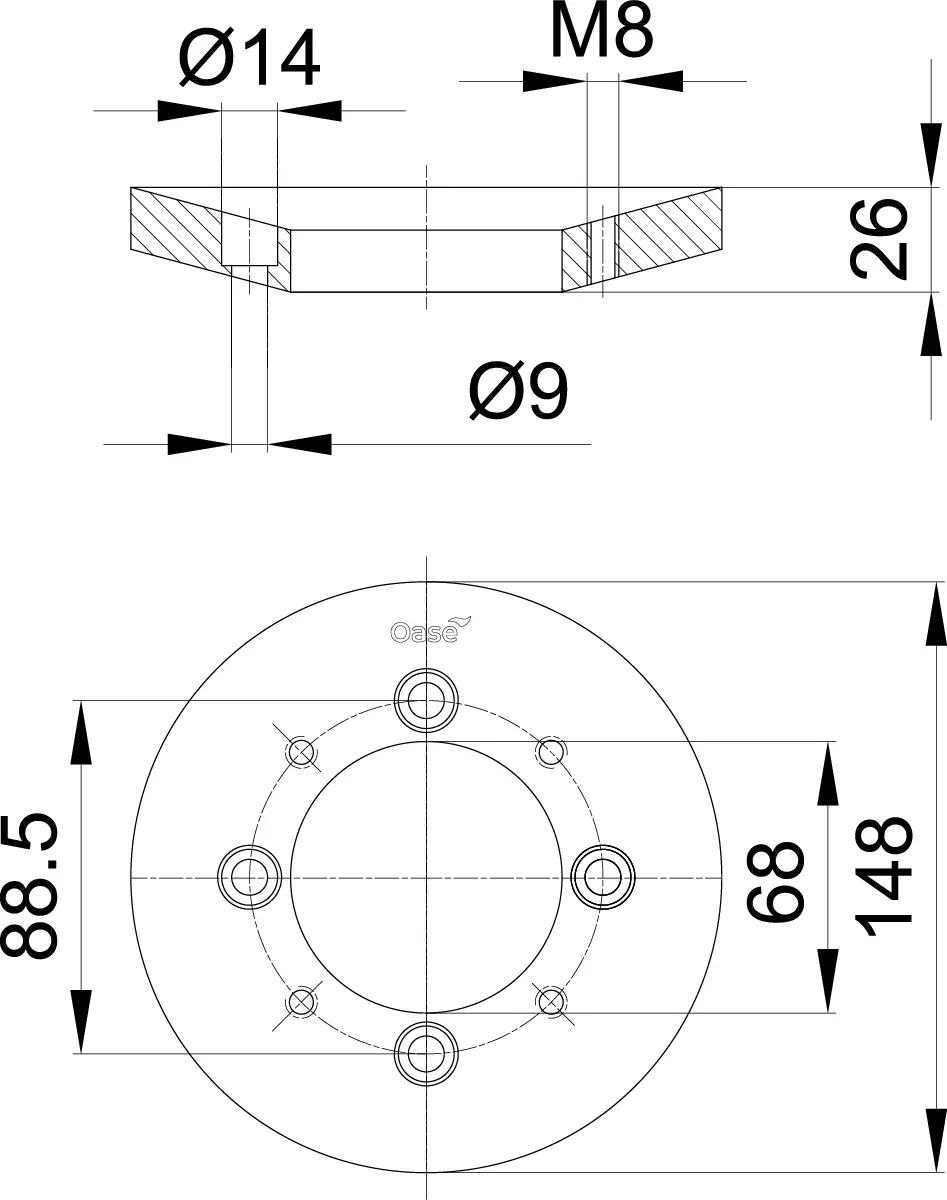

- Dimensions (W × H)
- 148 × 27
- mm
- Material
- Bronze
- Net weight
- 1.86
- kg
Download
- DOK_PRD_DB_57473-Folienklemmflansch70T-KD.pdf
- DOK_PRD_EL_57473-Folienklemmflansch-70-T-KD-2015.pdf
- DOK_PRD_GA_42626-GA-Folienklemmflansch-70-T-KD-01.pdf
- ZEI_PRD_3D_57473-Folienklemmflansch70T-KD-001.dwg
- ZEI_PRD_AC_57473-Folienklemmflansch70T-KD-001.dxf
