Hollow Jet Nozzle 130 INT
SKU: 50963
View other products in the family
Caratteristiche principali
- Water-level independent wind-stable hollow jet
- Significantly reduced water requirements compared to full-jet nozzles
- Stainless steel nozzle with flow director
Dettagli delle funzionalità
High-quality stainless steel hollow jet nozzle for wind-stable fountain heights up to 80 m
Water level-independent power, flow rectifier and detailed design of the ring slot
Significantly reduced water requirement due to individual nozzle design
Special, particularly high-quality design in stainless steel
Also suitable for salt water
Slide 1 of 8
1 of 8
Specifiche
Specification breakdown

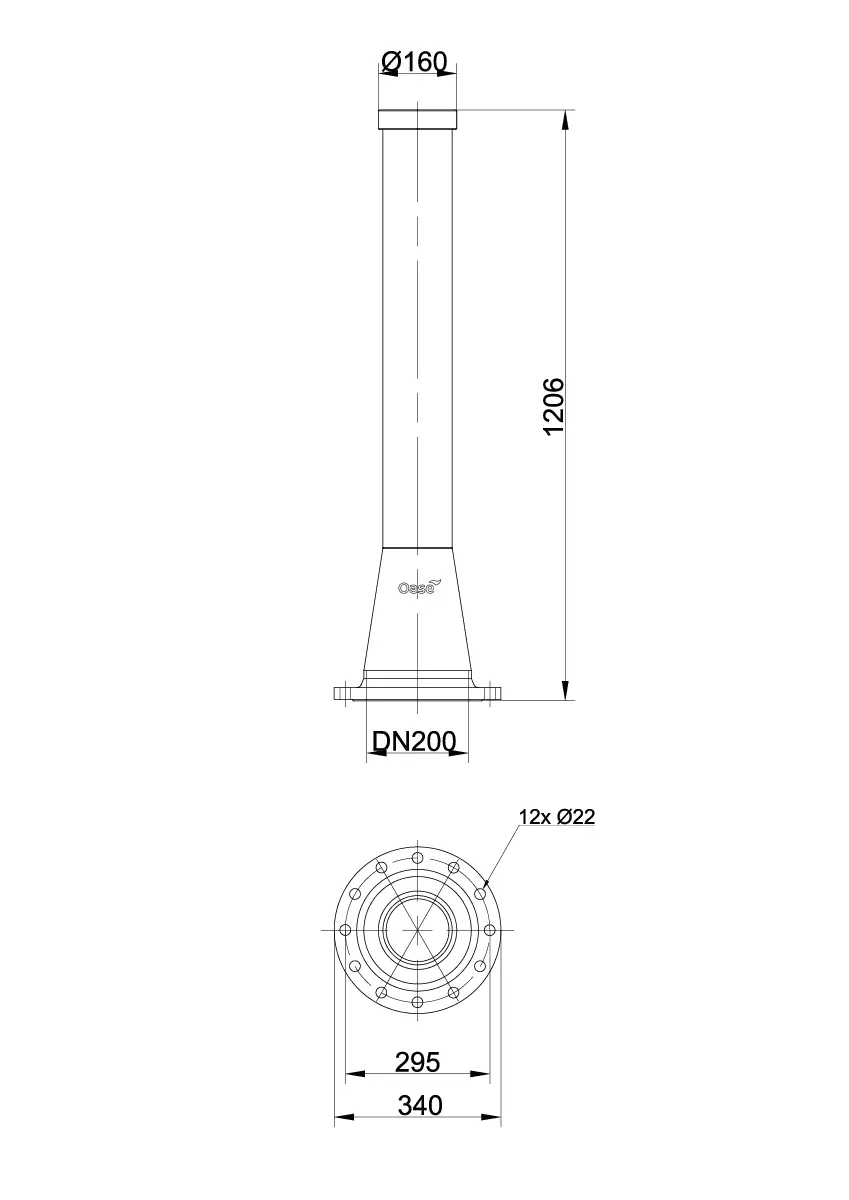

- Dimensions (Ø × H)
- 340 × 1200
- mm
- Hollow jet diameter
- 130
- mm
- Water film thickness
- 10.0
- mm
- Material
- Stainless steel 1.4571 (AISI 316Ti)
- Net weight
- 76
- kg
Download
- ZEI_PRD_AC_50963-Hohlstrahlduese130-001.dxf
- ZEI_PRD_3D_50963-Hochstrahlduese-130-001.dwg
- DOK_PRD_DB_50963-Hohlstrahlduese130.pdf
- DOK_PRD_LV_50963-Hohlstrahlduese-130.pdf
- DOK_PRD_DB_55350-Hohlstrahlduese-130.pdf
- DOK_PRD_EL_50963-Hohlstrahlduese130.pdf
