At its core lies the CrownNozzle, powered by one of the pumps. With 24 precisely angled bores, it generates a striking, well-defined multi-jet water pattern that lends any installation a majestic character. In parallel, two additional pumps supply the VarioJet section of the nozzle, producing either a harmonious water bell or a focused single jet, depending on the setting.
By smoothly adjusting the flow rate, captivating transitions and fluid transformations between water shapes emerge. The highlight: when the multi-jet pattern of the CrownNozzle is combined with the water bell, an extraordinary and artistic water effect is created – the elegant water lily. Thanks to its flush-mounted installation, the nozzle remains unobtrusive, preserving architectural aesthetics while enabling flexible and dynamic water staging -- particularly in splash deck fountain applications.
Jellemzők részletei
Dynamic, captivating water effects – from multi-jet patterns and water bells to the unique water lily, made possible through the combination of the VarioJet 42-15 and the CrownNozzle.
Flush-mounted installation – elegantly integrated, unobtrusive and ideal for splash decks or contemporary water features.
Versatile water effects – three connected Varionaut pumps enable seamlessly adjustable and continuously changing water patterns.
High-quality, durable stainless-steel construction – ensuring reliable, low-maintenance and professional long-term operation.
Majestic multi-jet display – 24 precisely angled nozzles of the CrownNozzle create expressive, visually striking water formations.
Effortless alignment thanks to the integrated adjustment flange, stable mounting base and included connection accessories.
Water-level-independent operation – maximum flexibility for planning and integrating into various types of water basins.
Optional saltwater-resistant version – suitable for installations in seawater or saline environments.
Műszaki adatok
Specification breakdown
- Material
- Stainless steel 1.4301 (AISI 304)
- Net weight
- 37.4
- kg
Letöltések
- Product instructions

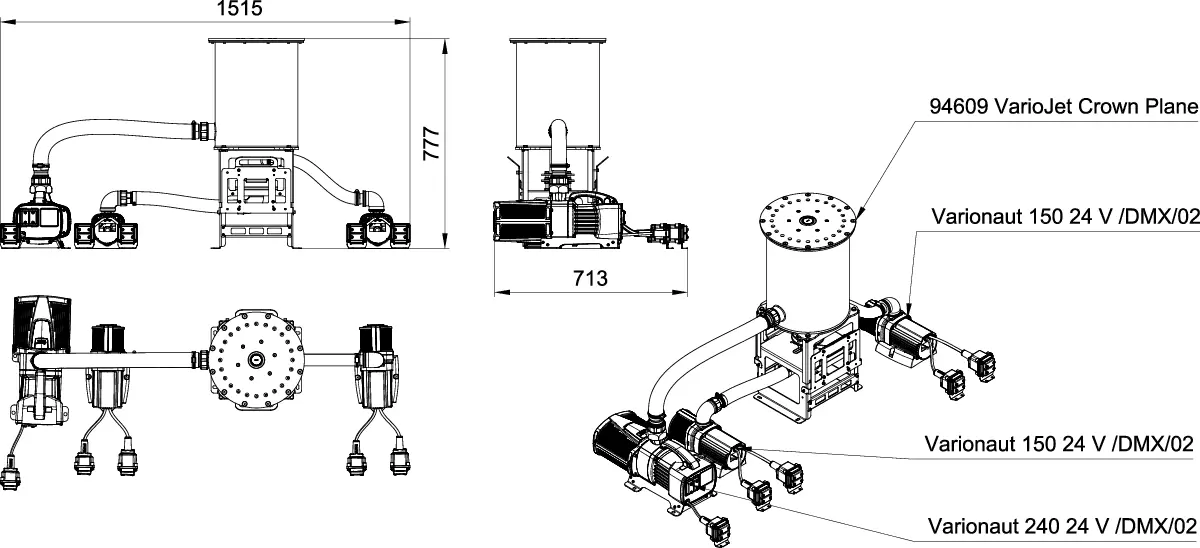

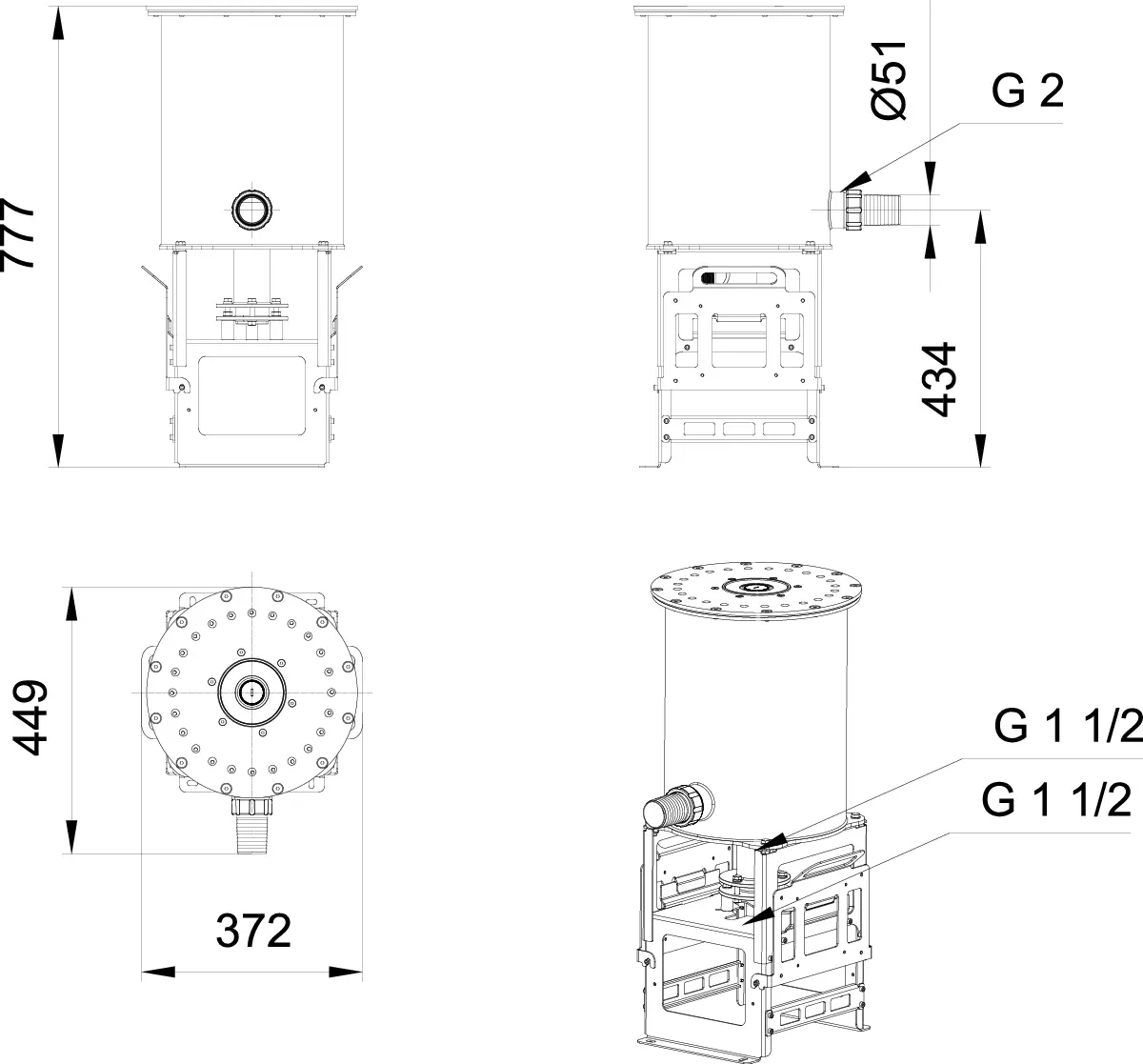

- 2D drawing
- 2D drawing
