AquaMax Eco Expert 36000 INT

SKU: 54614

Key Features

Suitable for networks and powerhouse with low energy consumption
Patented frost protection to –20 °C
With switchable SFC function, enabling an additional 30 % savings in energy costs, depending on the water temperature

AquaMax Eco Expert 36000 INT

SKU: 54614

Key Features

Suitable for networks and powerhouse with low energy consumption
Patented frost protection to –20 °C
With switchable SFC function, enabling an additional 30 % savings in energy costs, depending on the water temperature

The OASE AquaMax Expert 36000 is a very powerful filter and watercourse pump. It delivers up to 36,000 litres per hour and has a maximum delivery head of 9.50 m. The OASE AquaMax Expert 36000 has a compact housing made of high-quality plastic with stainless steel elements and is extremely stable. It pumps dirt particles up to 11 mm in size, can be set up dry, can be regulated electronically and is fully suitable for winter storage. The OASE AquaMax Expert 36000 is unaffected by complete freezing. The filter and watercourse pump has a maximum power consumption of 550 watts. It is supplied complete with universal stepped hose nozzle from 1" to 2". The handle is optimally aligned with the centre of gravity of the pump, making it easier to transport and align when setting up. Warranty 3 years plus 2 years' warranty on request.

Characteristics

Environmental function control
This is EFC, by OASE: no problems caused by the pump being blocked or running dry
Experts
Perfect for use in demanding filter systems or for large watercourses and waterfalls
Durable
The robust housing which also contains stainless steel is very durable
Versatile
You can place this pump in dry conditions or submerged underwater
Made in germany
Precise and reliable engineering skills at a particularly high level of quality
Sfc function
Switch on and save up to 30% energy
Large solids handling
Reliable conveying of plant parts or fish faeces up to a size of 11 mm
App control
Simply download the OASE Control app (App Store or Play Store), register and get started
Winter-proof
This pump is damage-resistant down to temperatures as low as –20 °C
System requirements
A Garden Controller Home, Cloud or InScenio FM-Master Home, Cloud is required to use the OASE Control functions

Robust filter basket<br />Thanks to this robust stainless steel filter basket, coarse debris particles up to 11 mm are displaced with ease.

Robust filter basket
Thanks to this robust stainless steel filter basket, coarse debris particles up to 11 mm are displaced with ease.

Compact base<br />Integrated mounting holes in the base enable fixed installation on the pond floor, as needed.

Compact base
Integrated mounting holes in the base enable fixed installation on the pond floor, as needed.

Convenient operation<br />The ergonomic handle, aligned with the pump's centre of gravity facilitates transport and installation. The switch for SFC function is practically positioned directly on the handle.

Convenient operation
The ergonomic handle, aligned with the pump's centre of gravity facilitates transport and installation. The switch for SFC function is practically positioned directly on the handle.

Connection for OASE Control units<br />Innovative, convenient and manageable, the pumps can be regulated and controlled via a separate connection using OASE Control units. Alternatively, an Eco Control controller can be connected.

Connection for OASE Control units
Innovative, convenient and manageable, the pumps can be regulated and controlled via a separate connection using OASE Control units. Alternatively, an Eco Control controller can be connected.

1 of 4

Let's get Technical

Specification breakdown

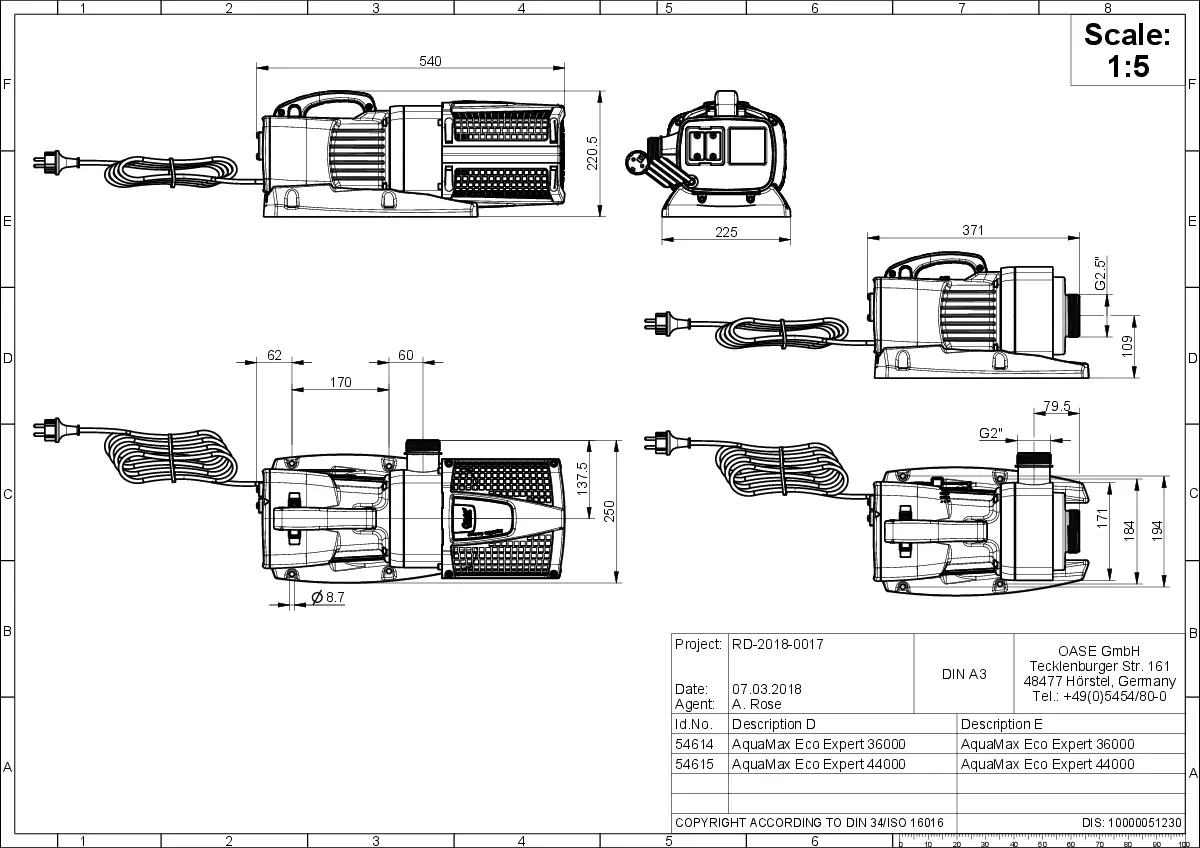

Dimensions (L × W × H): 540 × 250 × 220; mm
Rated voltage: 220 - 240 V / 50/60 Hz
Power consumption: 90 - 540; W
Power cable length: 10.00; m
Net weight: 14.9; kg
Guarantee (+ request guarantee): 3 + 2; Years
Max. flow rate: 600; l/min
Max. flow rate: 36000; l/h
Max. head height, metres: 9.00; m
Pressure-side connection: G 2
Suction-side connection: G 2 ½
Hose connection: 38 / 50; mm
Hose connection: 1 ½", 2"
Filter intake surface: 1120; cm²
Max. coarse debris displacement: 11; mm
Compatible with OASE Control: Yes
Electronic adjustment: Yes
Setup type: Can be set up underwater & dry installed

Downloads

Declaration of Conformity OASE pumps
DOK_PRD_CE_54612-Aquarius-Eco-Expert-36000-01.pdf

Spare Parts (10 Items)

Pos.	Product	SKU	Quantity
1 40510 40510 1 2 40509 40509 1
1	40510	40510	1
2	40509	40509	1
3	40511	40511	1
4	49998	49998	1
5	35359	35359	1
6	49997	49997	1
7	49996	49996	1
8	36087	36087	1
9	32972	32972	1
10	Additional pack Eco Expert 2 1/2" INT	89118	1
