ProfiClear Premium Individual Module INT
SKU: 50771
View other products in the family
Key features
- Mature, professional technology with more than three years of development time

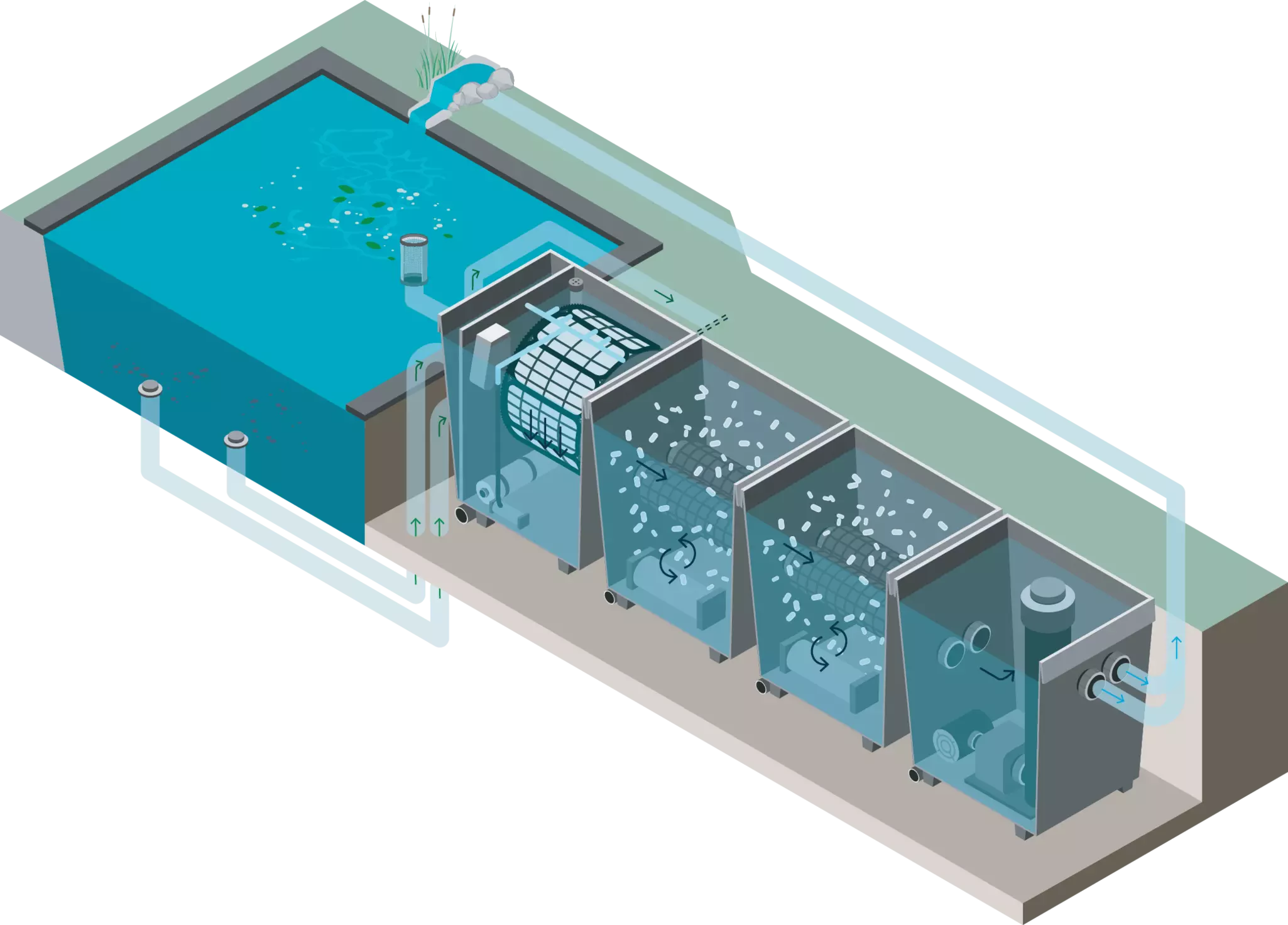

- Modern modular filter system for professional water quality where space is at a minimum
VERSATILE AND EXPANDABLE: High flexibility in connection and simple equipping of the individual baskets with additional filter media
Feature Details
Versatile and expandable
High flexibility in connection and simple equipping of the individual baskets with additional filter media
Easy handling

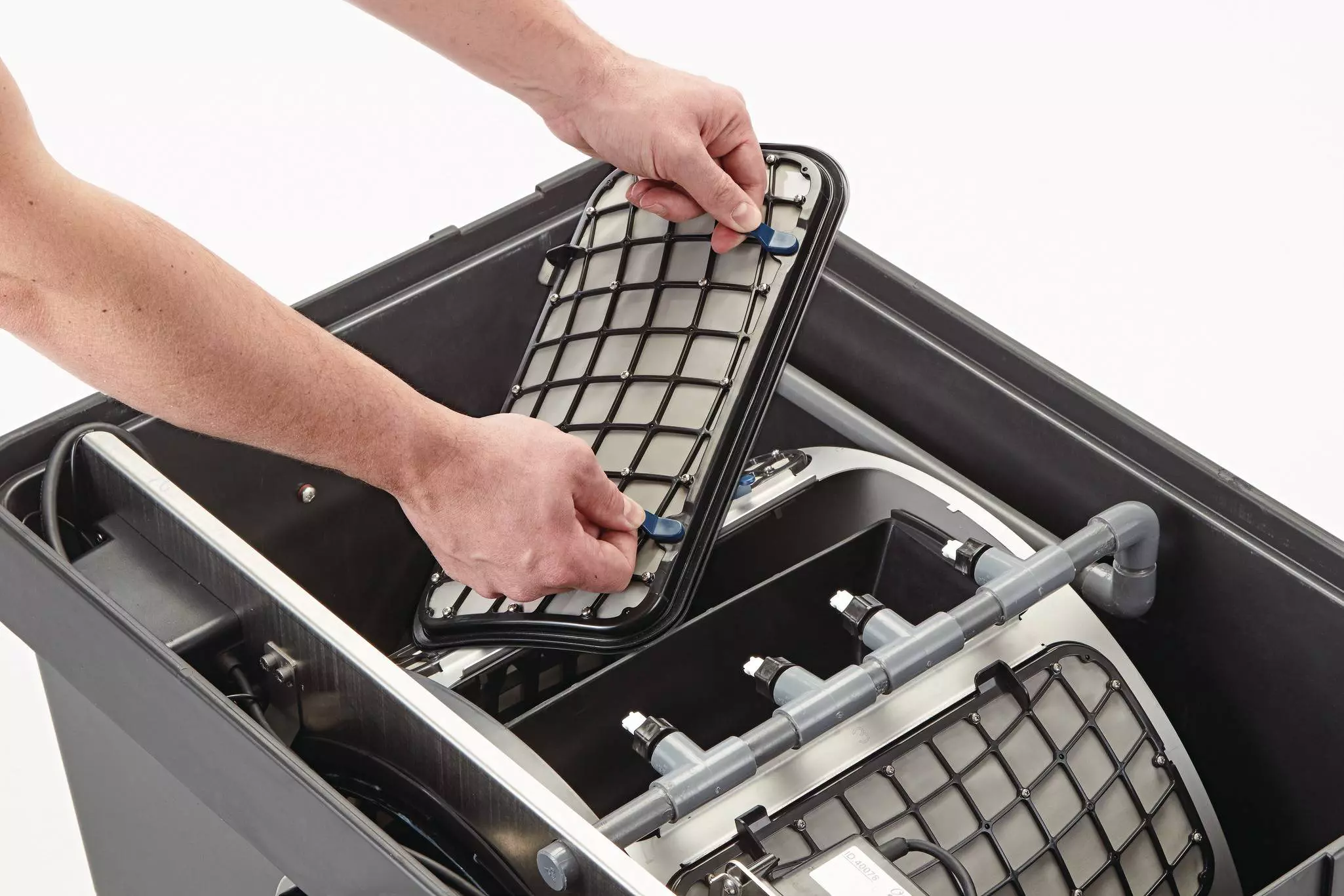

The sturdy stainless steel drum is enclosed in a solid and dimensionally stable GRP Duroplast housing. The filter elements can easily be removed and replaced.
Quiet operation
Especially quiet thanks to extensive noise damping
Slide 1 of 4
1 of 4
Specifications
Specification breakdown

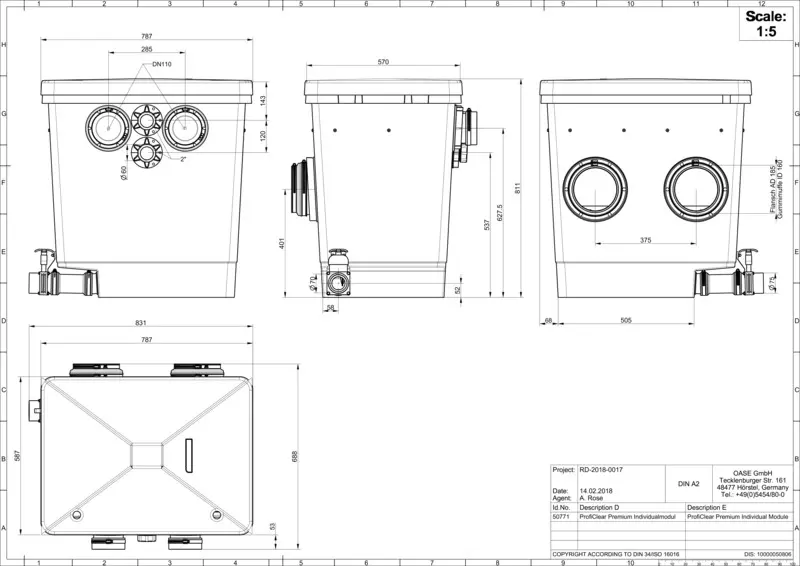

- Dimensions (L × W × H)
- 830 × 600 × 820
- mm
- Net weight
- 47
- kg
- Guarantee (+ request guarantee)
- 2 + 1
- Years
- Material
- GRP Duroplast/stainless steel
- Number of inlets
- 2
- Units
- Inlet connections
- 180
- mm
- Inlet connections
- 2 × 185 mm
- Number of outlets
- 4
- Units
- Connections, outlet
- 50
- mm
- Outlet connections
- 2 × 2" / 2 × DN 110
- Sludge discharge connections
- DN 75
- Connection to
- AquaMax Eco Gravity, Bitron Premium
- Min. flow rate
- 10000
- l/h
- Max. flow rate
- 33000
- l/h
- Installation height above water level
- 11.5
- cm
- Type of use
- Gravity fed system, Pump fed system
- Other
- Pollutant discharge incl. slide valve
Downloads
- ZEI_PRD_AC_50771-ProfiClear-Premium-Individualmodul-001.dxf
- DOK_PRD_GA_19397-GA-ProfiClear-Premium-Individualmodul-01.pdf
