ProfiClear Premium DF-L gravity-fed OC INT
View other products in the family
Key features
- Mature, professional technology with more than three years of development time
- Modern modular filter system for professional water quality where space is at a minimum
Feature Details
Modern modular filter system for professional water quality where space is at a minimum
Mature, professional technology with more than three years of development time
Filtration with a filter capacity to 60 µm
Automatic self-cleaning
A microcontroller system, suitable for outdoor use, monitors and controls the functions
Individually removable sieve elements (no tools required) and free-wheeling functions for easy access to the drum
Particularly quiet in operation
Quality high-pressure pump for flushing the drum in the scope of delivery
Connection options for the OASE Control system
Excellent decomposition rates of ammonium, ammonia, nitrite and nitrate
Conveniently control all settings via an app with connection options for the OASE Control system; existing systems can be upgraded using the separately available upgrade kit

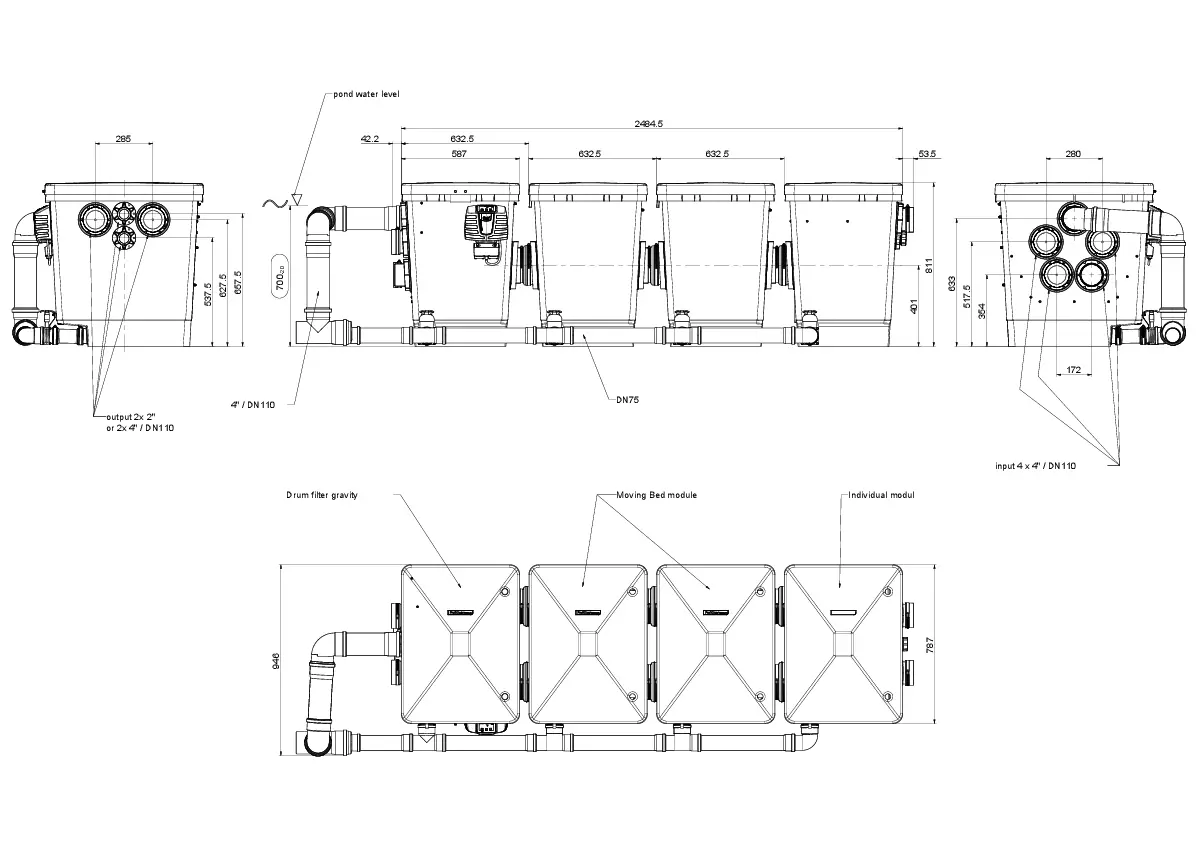

Highly effective at breaking down pollutants and nutrients using purpose-designed filter media in the moving bed process (Moving Bed module)
Outstanding filter capacity with intelligent control functions
Intelligent self-cleaning function for unique maintenance-free operation (drum filter module)
Flexible adaptation of the filter system to individual requirements (individual module)
Innovative and reliable product "Made in Germany" (except pressure pump)
Full flexibility for the connection with up to 4 × DN 110 inlets
Full design freedom with just 11.5 cm installation height above the water level
An additional sensor detects failure of the transfer pump and reports this via the display or the OASE Control app
Flow capacity up to 33 m³/h
Easy handling
The sturdy stainless steel drum is enclosed in a solid and dimensionally stable GRP Duroplast housing. The filter elements can easily be removed and replaced.
Quiet operation
Especially quiet thanks to extensive noise damping
Specifications
Specification breakdown
- Dimensions (L × W × H)
- 830 × 600 × 820
- mm
- Power consumption, cleaning
- 1050
- W
- Net weight
- 76.5
- kg
- Guarantee (+ request guarantee)
- 2 + 1
- Years
- Control unit
- Microcontroller
- Temperature display
- Digital
- Coarse debris extraction
- 60
- µm
- Number of nozzles/rinse quantity
- 4 × 2.5 l/min
- Scavenging pump
- 6 bar
- Automatic rinsing system
- manually, Sensor, Time interval
- Number of sieve elements
- 8
- Units
- Filter intake surface
- 3454
- cm2
- Number of inlets
- 4
- Units
- Inlet connections
- DN 110
- Number of outlets
- 2
- Units
- Outlet connections
- DN 150
- Sludge discharge connections
- DN 75, DN 110
- Flush trough connection
- DN 110
- Connection to
- Bitron Gravity
- Min. flow rate
- 10000
- l/h
- Max. flow rate
- 33000
- l/h
- Installation height above water level
- 11.5
- cm
- Possible water level difference
- -20 mm
- Type of use
- Gravity fed system
- Other
- Pollutant discharge incl. slide valve
Downloads

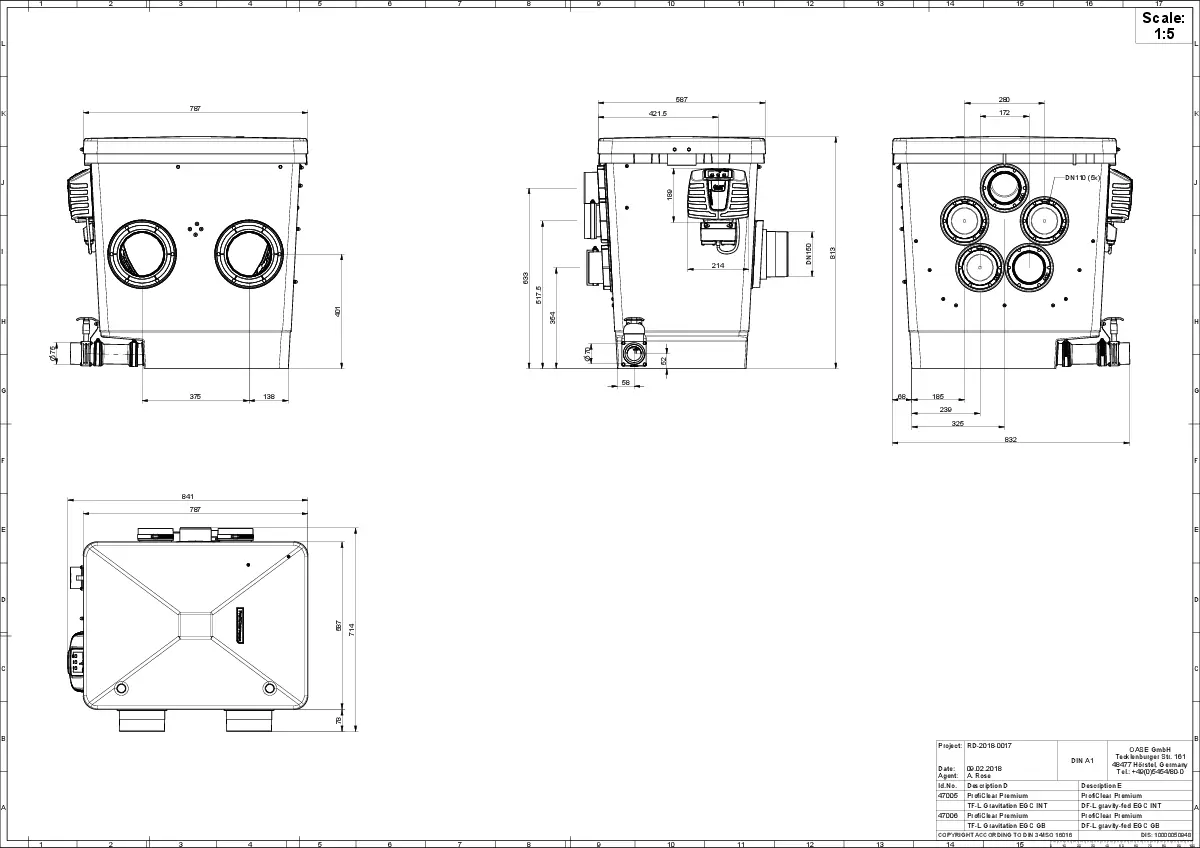

- ZEI_PRD_AC_47005-ProfiClear-Premium-TF-L-Gravitation-OC-001.dxf
- DOK_PRD_GA_47626-GA-ProfiClear-Premium-Trommelfilter-OC-01.pdf
