View other products in the family:
Standard delivery orders are shipped in 1-3 days
Includes OASE clear water guarantee
Coarse dirt is removed before it enters the filter
The filter belt is automatically driven; adjustable automatic cleaning system, which controls the belt run based on the degree of contamination, including LED function check
Filter sponges can be cleaned directly in the filter
Bottom drain with slide to remove dirt from the filter system
Different filter media for optimal development of filter biology
Use of PhosLess filter cartridges for reducing thread algae (optional accessory)
Optimally matched to OASE AquaMax Eco filter pumps
Direct connection option for UVC Bitron C and Eco clarifiers
DOESN'T CLOG: Uniform water distribution on the filter belt
Large-volume dirt basket with easy cleaning
High-quality filter foam
Different types of filter foam with various pore sizes ensure optimal mechanical and biological filtration
Integrated debris basket
Filtered debris can be conveniently removed and cleared from the filter system
Intelligent function checks
Sensors detect the pollutant level and activate the belt run automatically. An LED display shows required cleaning measures.

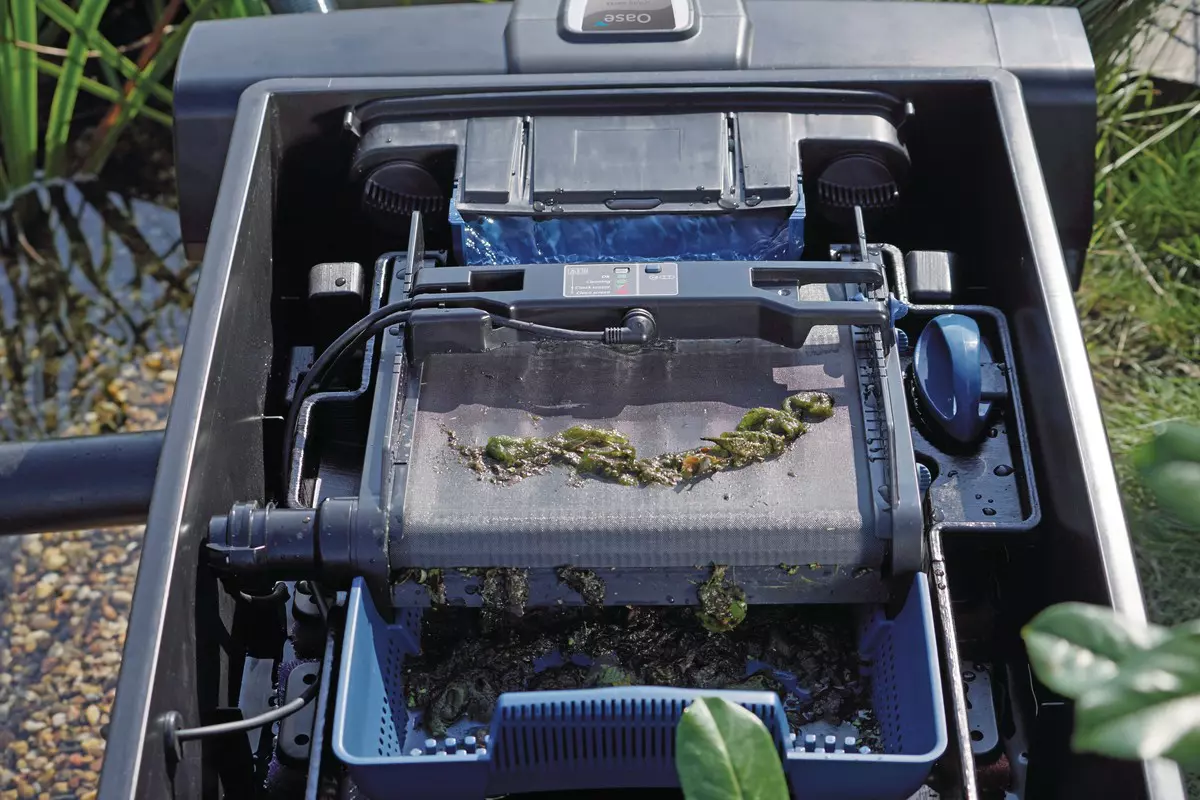

Optimised belt
The cleaning belt can be easily folded to make it easy to clean the filter foam
Schematic diagram
UVC clarifier in combination with OASE BioTec ScreenMatic² flow-through filter.
| Pos. | Product | SKU | Quantity |
|---|---|---|---|
10 Flat Gasket for BioTec 12-36 & BioTec ScreenMatic² 18000 / 24000 / 32000 / 38000 / 39000 19506 1 20 Product currently not available 43749 1 | |||
| 10 | Flat Gasket for BioTec 12-36 & BioTec ScreenMatic² 18000 / 24000 / 32000 / 38000 / 39000 | 19506 | 1 |
| 20 | Product currently not available | 43749 | 1 |
| 30 | Product currently not available | 25000 | 1 |
| 40 | Product currently not available | 25507 | 1 |
| 50 | Sludge Drain Pull Rod for BioTec ScreenMatic² 18000 / 24000 | 25624 | 1 |
| 60 | O-Ring for BioTec 12-36 & BioTec ScreenMatic² 18000 / 24000 / 32000 / 38000 / 39000 | 25691 | 1 |
| 70 | Housing Clip for AquaMax Premium & BioTec ScreenMatic | 30983 | 1 |
| 80 | Product currently not available | 34367 | 1 |
| 90 | Foam Holder Cover Plate for BioTec 18-36 & BioTec ScreenMatic² 18000 / 24000 / 32000 / 38000 / 39000 | 34670 | 1 |
| 100 | Product currently not available | 34830 | 1 |
| 110 | Drain Valve Gasket for BioTec 12 / 18 & BioTec ScreenMatic² 18000 / 24000 | 34859 | 1 |
| 120 | Fabric Screen for BioTec 18 & BioTec ScreenMatic² 18000 / 24000 | 42325 | 1 |
| 130 | Product currently not available | 42342 | 1 |
| 140 | Debris Basket for BioTec ScreenMatic² 18000 / 24000 / 32000 / 38000 / 39000 | 42346 | 1 |
| 150 | Screen Assembly for BioTec ScreenMatic² 18000 / 24000 | 42383 | 1 |
| 160 | Scrub Brush for BioTec ScreenMatic2 18000 / 24000 / 38000 / 39000 | 42449 | 1 |
| 170 | Mud Flap Cap for BioTec ScreenMatic² 18000 / 24000 / 32000 / 38000 / 39000 | 42450 | 1 |
| 180 | Purple & Red Filter Foam2 for BioTec ScreenMatic² 24000 | 89165 | 1 |
| 190 | Blue Filter Foams for BioTec ScreenMatic² 24000 | 89166 | 1 |
| 200 | Product currently not available | 42949 | 1 |
| 210 | Product currently not available | 44173 | 1 |
| 220 | Screen ScraperAssembly with Brush for BioTec ScreenMatic² 18000 / 24000 / 32000 / 39000 | 44177 | 1 |
| 230 | Small Parts Pack for BioTec ScreenMatic² 18000 / 24000 / 32000 / 39000 | 44178 | 1 |
| 240 | Product currently not available | 44179 | 1 |
| 250 | Screen Holder Arms for BioTec ScreenMatic² 18000 / 24000 / 32000 / 39000 | 44181 | 1 |
| 260 | Drain Valve Assembly for BioTec 12-18 & BioTec ScreenMatic2 18000 / 24000 / 38000 | 44182 | 1 |
| 270 | Screen Motor for BioTec ScreenMatic2 18000 / 24000 / 38000 / 39000 | 44183 | 1 |
| 280 | Controller for BioTec ScreenMatic2 18000 / 240000 | 44184 | 1 |
| 290 | Brush Holder for BioTec ScreenMatic2 18000 / 24000 / 38000 / 39000 | 44308 | 1 |
| 300 | Flow Distributor for BioTec ScreenMatic² 18000 / 24000 | 44337 | 1 |
| 310 | Product currently not available | 45252 | 1 |
| 320 | Product currently not available | 45254 | 1 |
| 330 | Product currently not available | 45255 | 1 |
| 340 | Power Supply for BioTec ScreenMatic² 18000 / 24000 / 38000 & Garden Cloud Controller | 45291 | 1 |
| 350 | Filter Cover with Clips for BioTec ScreenMatic² 18000 / 24000 | 45320 | 1 |
| 360 | Product currently not available | 45323 | 1 |
| 370 | Product currently not available | 45325 | 1 |
| 380 | Product currently not available | 47031 | 1 |
| 390 | Connection Kit for BioTec ScreenMatic² 18000 / 24000 / 32000 / 38000/ 39000 | 48674 | 1 |
| 400 | Product currently not available | 48686 | 1 |
| 410 | Product currently not available | 49600 | 1 |
