Underwater Switch

Underwater Switch 24 V DC Compact/DMX/02

SKU: 84956

Key features

  • As fast as a woodpecker: High switching times down to 0.05s enable new effects.

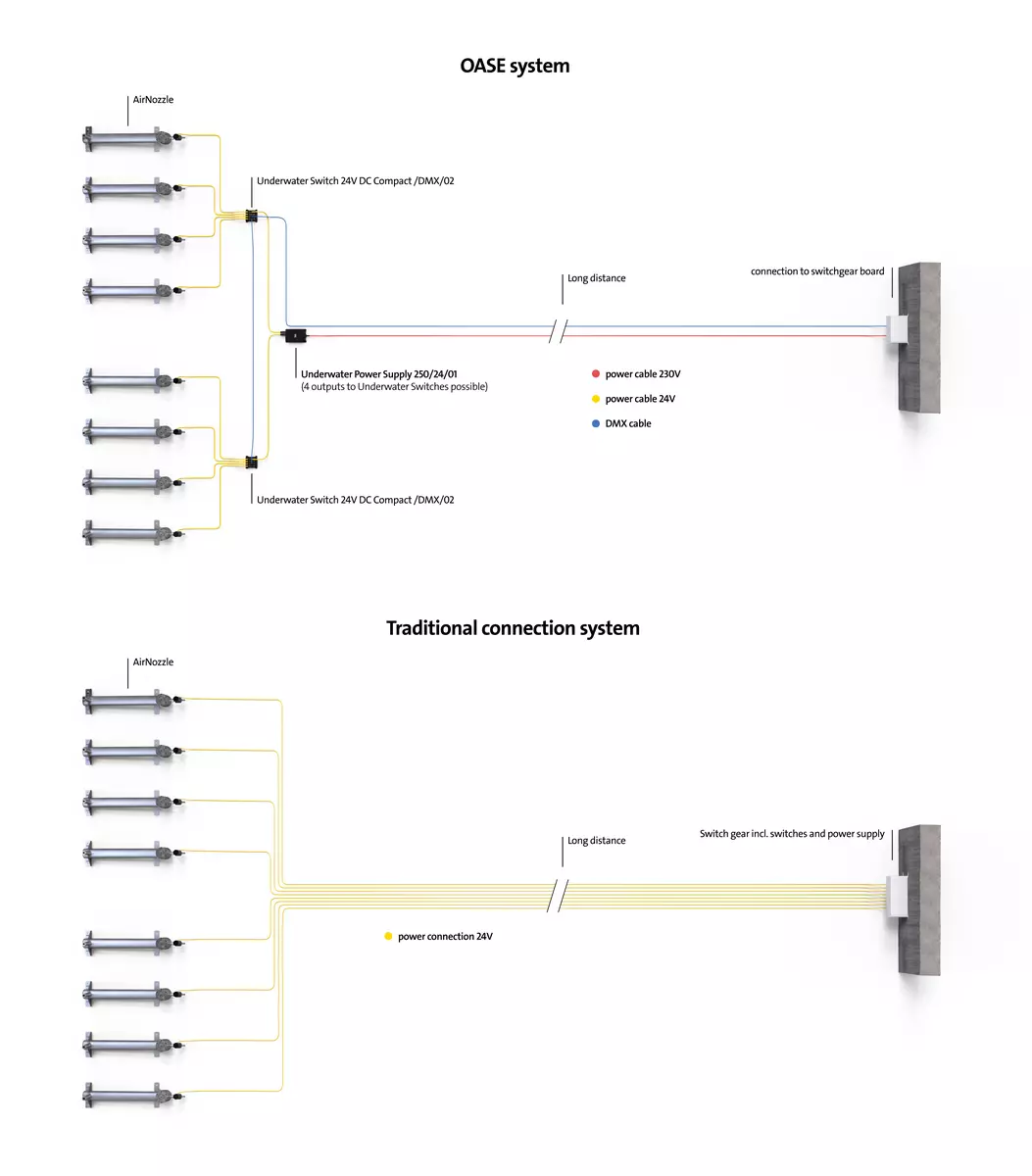

  • Fast installation due to simple wiring
  • Low overall costs due to material savings

Feature Details

  • Connect and control up to four end devices with individual switching times

  • For

    Air Nozzle 24 V DC, all monochrome 24 V DC spotlights, VarioDrop, VarioSwitch

  • Extremely short switching times of up to 0.05 seconds enable new effects

  • Fast, safe installation with patented ProNect underwater connection technology

  • Optimized housing in a compact design for easy connection of the components

  • Low total costs due to material savings

  • Input

    24 V DC in/out; DMX in/out // Output: 4 × 24 V DC switchable

  • Overload protection of the outputs and reverse polarity protection

  • Protection class IP68

1 of 4

Downloads

  • ZEI_PRD_3D_84956-Underwater-Switch-24V-DC-Compact-DMX02-001.dwg
  • ZEI_PRD_AC_84956-Underwater-Switch-24V-DC-Compact-DMX02-001.dxf
  • DOK_PRD_DB_84956-Underwater-Switch-24V-DC-Compact-DMX02-001.pdf
  • DOK_PRD_LV_84956-Underwater-Switch-24V-DC-Compact-DMX02-001.pdf
  • DOK_PRD_EL_84956-Underwater-Switch-24V-DC-Compact-DMX02-001.pdf
  • DOK_PRD_GA_85474-GA-Underwater-Switch-Compact-01.pdf
  • ZEI_PRD_AC_84956-Underwater-Switch-24V-DC-Compact-DMX02-System-001.dxf
