Overfl. wall-inst. comb. armature 100 E INT
SKU: 51120
Key features
- High-quality, robust stainless steel construction
- Easy installation
- Extremely corrosion resistant
Feature Details
For mounting in the side pool wall under the pool edge cover
Water level sensor sold separately
High-quality, robust stainless steel design, extremely corrosion-resistant
Subsequent change of the water level possible by moving the overflow funnel by +/- 20 mm
Easy installation
overflow nozzle fits into the sleeve of the sewer pipe, simple pipe fitting for water supply line and cable protection pipe
Specifications
Specification breakdown
- Connection
- 1 × DN 110 / 2 × 1"
- Material
- Stainless steel 1.4301 (AISI 304) / Stainless steel 1.4571 (AISI 316Ti)

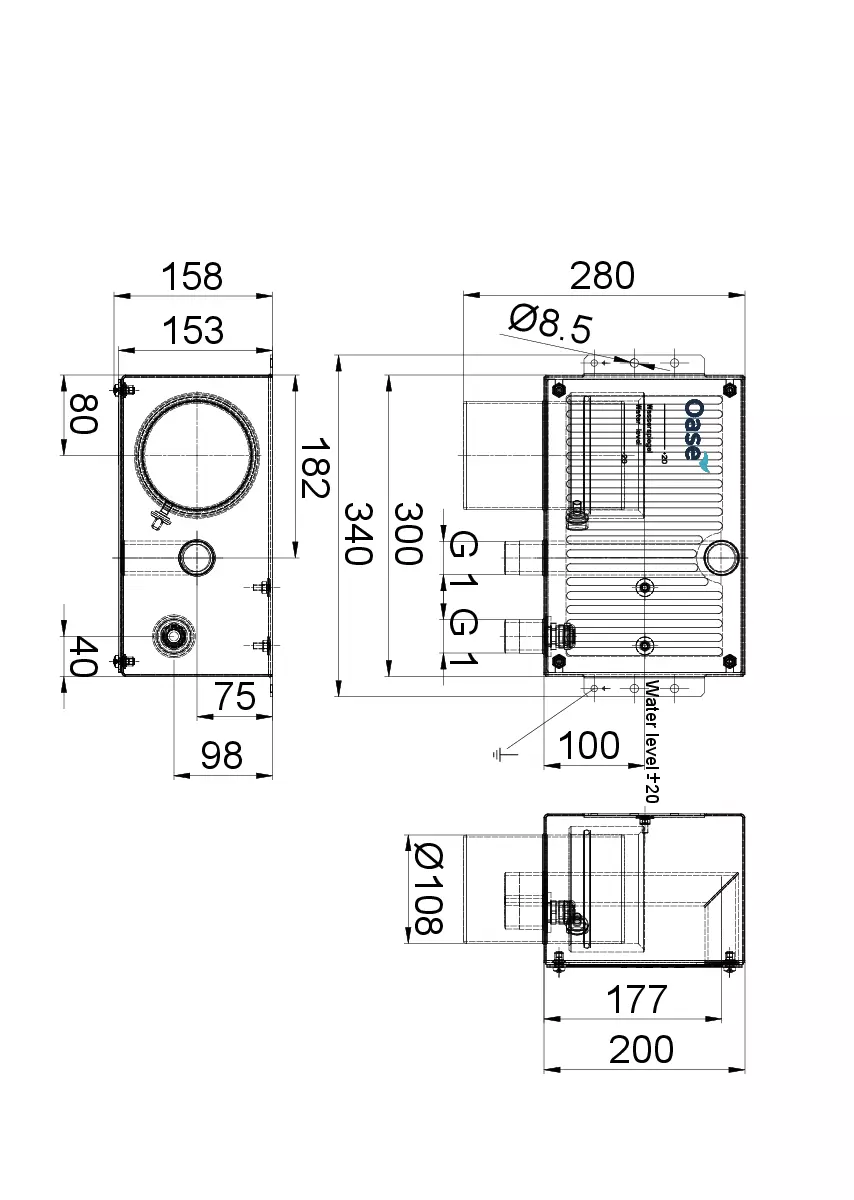

- Dimensions (L × W × H)
- 340 × 271 × 153
- mm
- Net weight
- 4.94
- kg
Downloads
- ZEI_PRD_AC_51120-UeberlaufWandeinbauKombiarmatur100E-001.dxf
- ZEI_PRD_3D_51120-Ueberlauf-Wandeinbau-Kombiarmatur-100-E-001.dwg
- DOK_PRD_EL_51120-Ueberlauf-Wandeinbau-Kombiarmatur-100-E-2015.pdf
- DOK_PRD_DB_51120-UeberlaufWandeinbauKombiarmatur100E.pdf
- DOK_PRD_GA_42614-Datenblatt-UWK-100-E-01.pdf
