FountainFlame /DMX/02
SKU: 52126
Klíčové vlastnosti
- Spectacular, dynamic special effects of fire, water and light
- Controllable via DMX-RDM

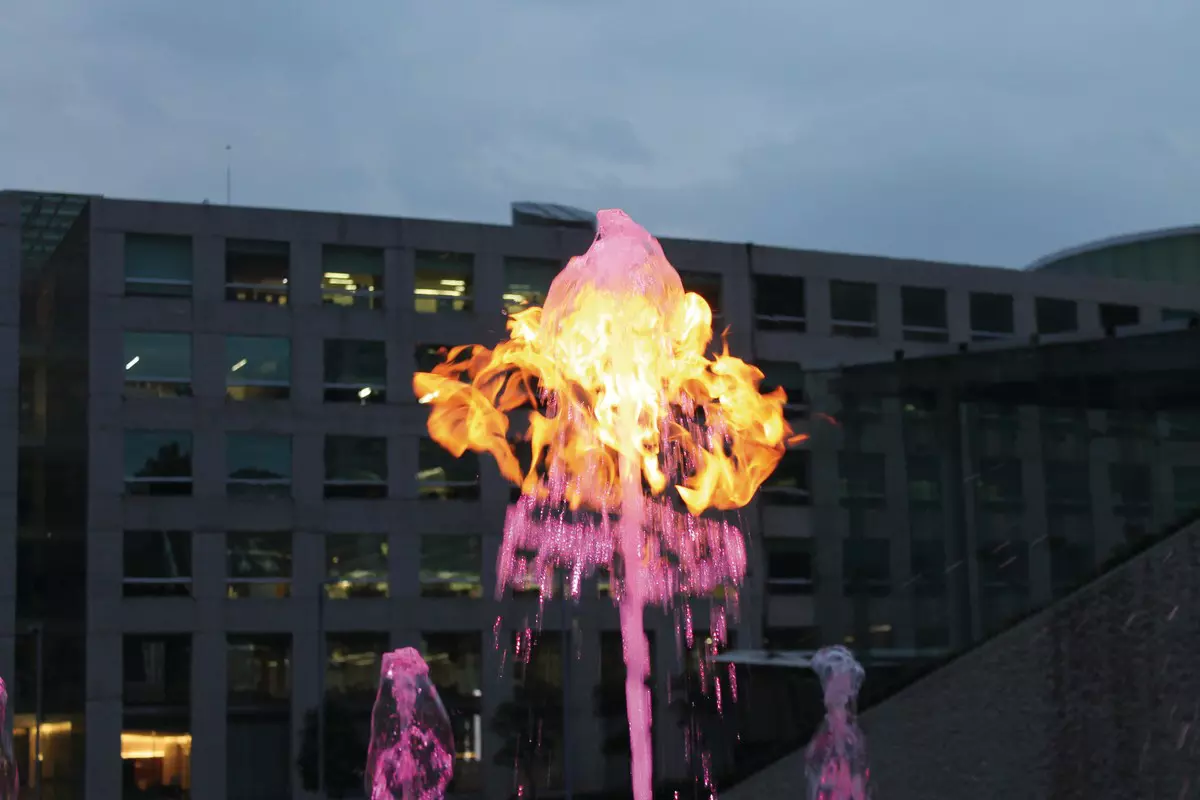

- Burning gas flame on variable water jet
Detaily vlastností
Waterproof ProNect connectors for DMX and lighting
Suitable for use in fresh and pool water
"Running" flame can also be projected onto water parabola
Max. fountain height with flame up to 8 m
Enormous creative freedom through combination of water, fire and light effects
Highly dynamic special effects
gas flames crown variable water jets, which can be individually illuminated by RGB LED spotlights
DMX/RDM-capable system with 230 V technology
Slide 1 of 4
1 of 4
Specifikace
Specification breakdown
- Dimensions (L × W × H)
- 540 × 630 × 980
- mm
- Number of DMX channels
- 8
- Units
- Effect Height max.
- 8.00
- m
- Connection Type Gas Pressure Line
- G ½ internal thread (EN ISO 228-1) flat sealing
- Requirement Gas-Type
- Propan (further information on request)
- Power consumption max.
- 900
- W
- Rated voltage
- 230
- V
- Rated current
- 3.9
- A
- Power cable length pump
- 10.00
- m
- DMX-RDM connection type
- DMX-Box /01
- Protection class
- IP68
- Material
- Stainless steel 1.4301 (AISI 304)
- Net weight
- 120
- kg
- Scope of delivery
- 1 × 46421 Varionaut 400 /DMX/02; 1 × 50523 Komet Prec 20 - 20 Silver; 3 × 36088 ProfiLux LED L RGB Spot /DMX/02; 1 × 70468 Underwater LED Driver Compact /DMX/02; 1 × 84956 Underwater Switch 24 V DC Compact/DMX/02; 1 × Flame system
Stažení
- DOK_PRD_EL_58905-Fountain-Flame.pdf
- ZEI_PRD_3D_58905-Fountain-Flame-001.dwg
- DOK_PRD_DB_52126-FountainFlame-DMX02.pdf
- ZEI_PRD_3D_52126-FountainFlame-DMX02-001.dwg
- ZEI_PRD_AC_52126-FountainFlame-DMX02-001.dxf
- DOK_PRD_EL_52126-FountainFlame-DMX02.pdf
- DOK_PRD_GA_46811-GA-Varionaut-240-24-V-DMX-02-01.pdf
- DOK_PRD_GA_91474-GA-LED-FT-RGBW-steuerbar-01.pdf
- DOK_PRD_GA_85474-GA-Underwater-Switch-Compact-01.pdf
- DOK_PRD_GA_88206-GA-LED-Driver-compact-20-A-01.pdf
