Comet 10 - 12 T INT
SKU: 50968
View other products in the family
Klíčové vlastnosti
- Brass nozzles with ball joint
- Clear wind-proof full jet
- water-level independent
Detaily vlastností
High-quality and durable brass nozzles
Can be used individually or effectively in groups as small to medium-sized clear spray nozzles
Fountain heights from 0.5 to 14 m
With ball joint, flexibly swivels up to 15°
With flow rectifier for clear water jet
Comet T available as required in the versions 3-5, 3-6, 5-8, 5-10, 10-12, 10-14, 15-17 and 15-20
Comet T/NPT available as required in the versions 3-6, 5-8, 5-10, 10-12, 10-14, 15-17 and 15-20
Comet 10-12 T and Comet 10-14 T can be perfectly combined with ProfiPlane LED L and ProfiRing LED L
Specifikace
Specification breakdown

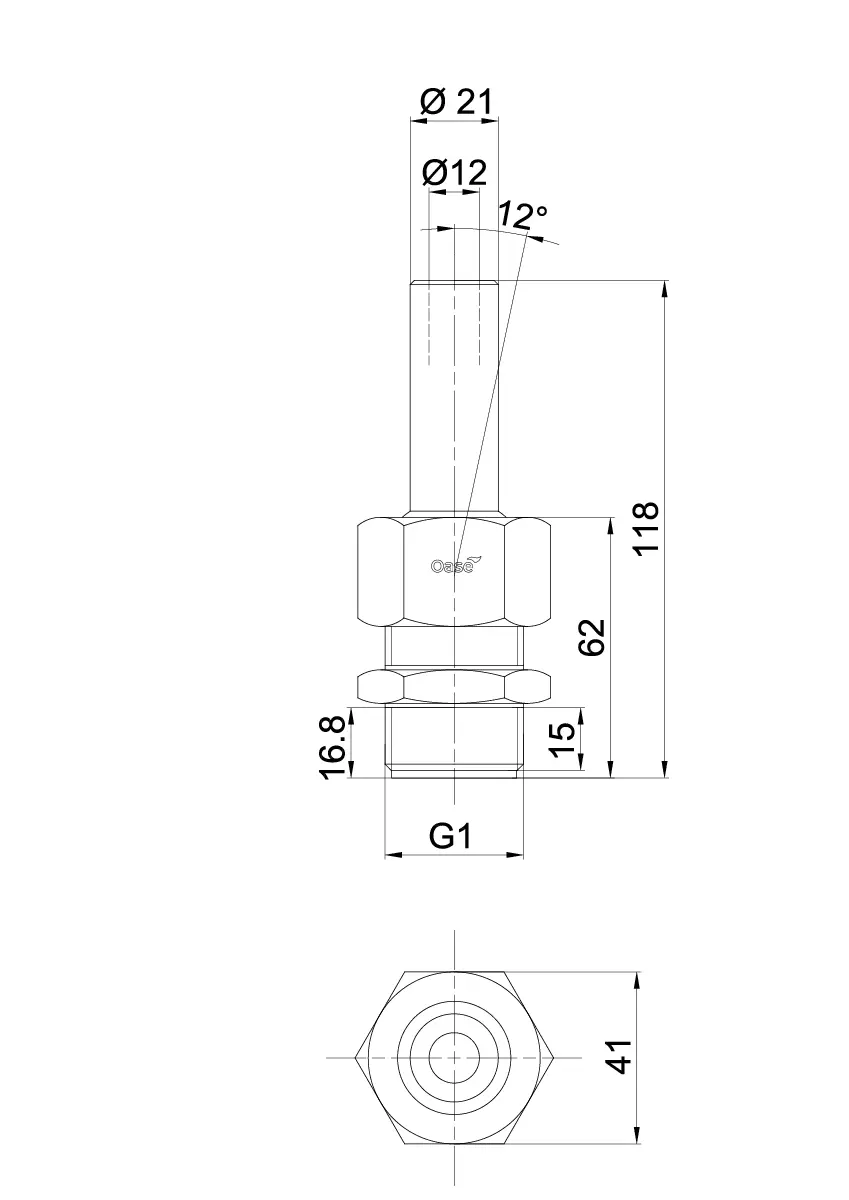

- Dimensions (Ø × H)
- 47 × 118
- mm
- Nozzle orifice
- 12.0
- mm
- Material
- Brass
- Net weight
- 0.46
- kg
- Order no. NPT
- 89015
Stažení
- ZEI_PRD_AC_50968-Komet10-12-001.dxf
- ZEI_PRD_3D_50968-Komet-10-12-T-001.dwg
- DOK_PRD_LV_50968-Komet-10-12-T.pdf
- DOK_PRD_DB_50968-Komet10-12.pdf
- DOK_PRD_EL_50968-Komet10-12.pdf
