Detaily vlastností
Motorised fountain nozzle for innovative and dynamic fountain effects with exceptionally smooth transitions
Precise and accurate switching between the different water patterns – controlled by the OASE Showcontroller WECS III
Compatible for water connection to commercially available centrifugal pumps or controllable OASE pumps
Also suitable for use in salt water – thanks to high-quality workmanship with durable stainless steel
Waterproof connection (IP68) to 24V DC and DMX via patented ProNect underwater plug connection
Available separately
Stable base 20E (92629) and RGBW LED module VM-RM L (92769)
Slide 1 of 2
1 of 2
Specifikace
Specification breakdown
- Number of DMX channels
- 4
- Units
- DMX Channel 1 x axe
- Position
- DMX Channel 2 x axe
- Fine
- DMX Channel 3 x axe
- Speed
- DMX Channel 4 x axe
- Function
- Max. operating pressure
- 2
- bar
- Rotation Speed max.
- 720.00
- °/sec.
- Pressure-side connection
- G 2
- Power consumption
- 35
- W
- Rated voltage
- 24 V / DC
- Rated current
- 1.1
- A
- DMX-RDM connection type
- DMX-Box /01
- Protection class
- IP68

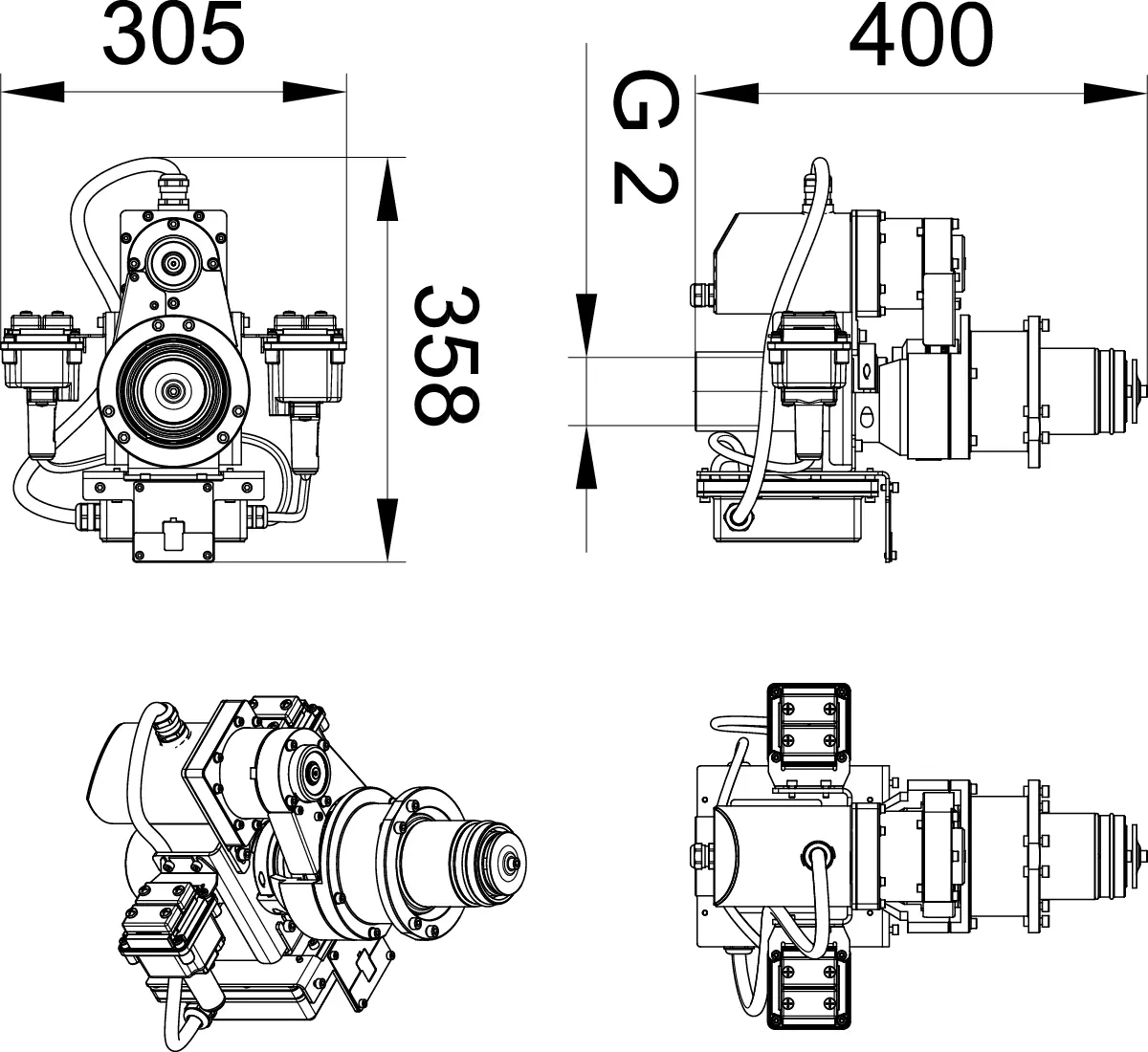

- Dimensions (L × W × H)
- 358 × 305 × 400
- mm
- Material
- Stainless steel 1.4571 (AISI 316Ti)
- Net weight
- 13
- kg
Stažení
- ZEI_PRD_3D_92590-VarioMaster-L-DMX-02-001.dwg
- ZEI_PRD_AC_92590-VarioMaster-L-DMX-02-001.dxf
- DOK_PRD_DB_92590-VarioMaster-L-DMX-02-001.pdf
