ProfiLux LED XL

ProfiLux Basic LED XL RGBW Spot /DMX/02

SKU: 70134

View other products in the family

Browse the product family

Detaily vlastností

  • High-quality stainless steel housing with robust bracket and fine adjustment

  • Powerful RGBW LED spotlight for wet and dry installation

  • Temperature-controlled, high-quality brand LEDs with a lifespan of up to 50,000 hours*

  • Uniform brightness of all luminaires and homogeneous color combination

  • Waterproof according to IP68 up to 2 m water depth

  • 1 m cable length with patented waterproof OASE ProNect connector

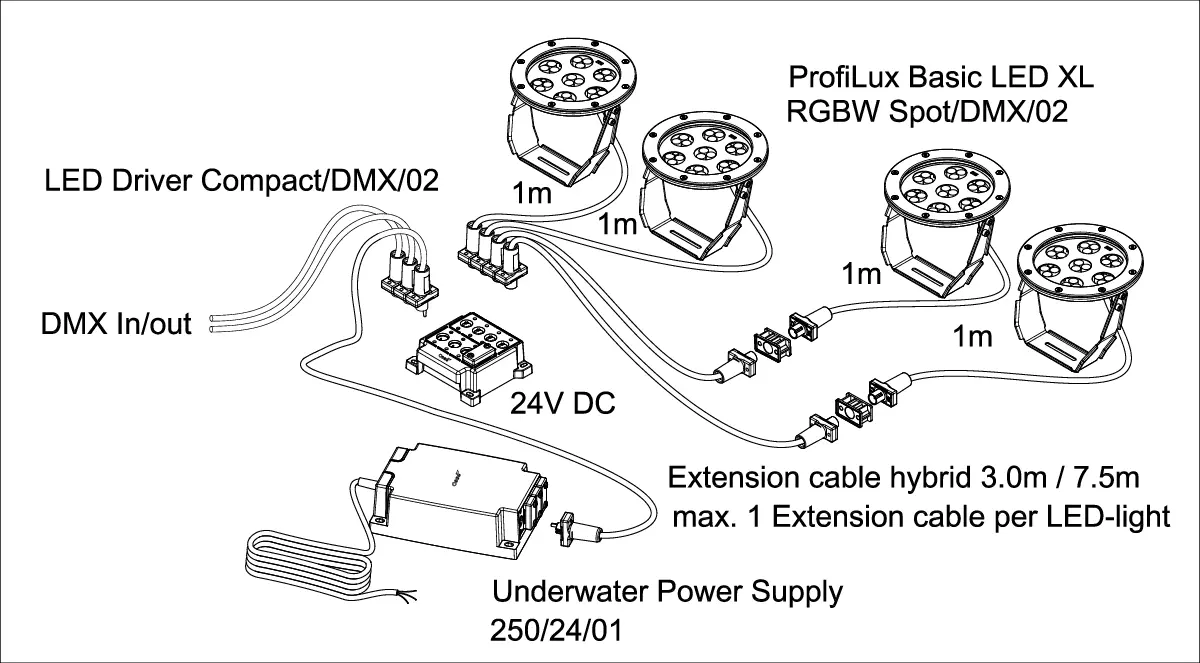

  • Controllable and DMX/RDM-capable with Underwater LED Driver Compact /DMX/02, dimmable, perfect for strobe effects

  • Galvanic isolation between DMX and 24 V DC

1 of 5
1 of 7

Specifikace

    Specification breakdown

    Luminous flux withe
    313
    lm
    Certificate
    MET US + C
    Colour temperature LED white
    4000 (± 200)
    K
    Number of DMX channels
    6
    Units
    Colour rendering index (CRI)
    80
    %
    DMX Channel 1
    red

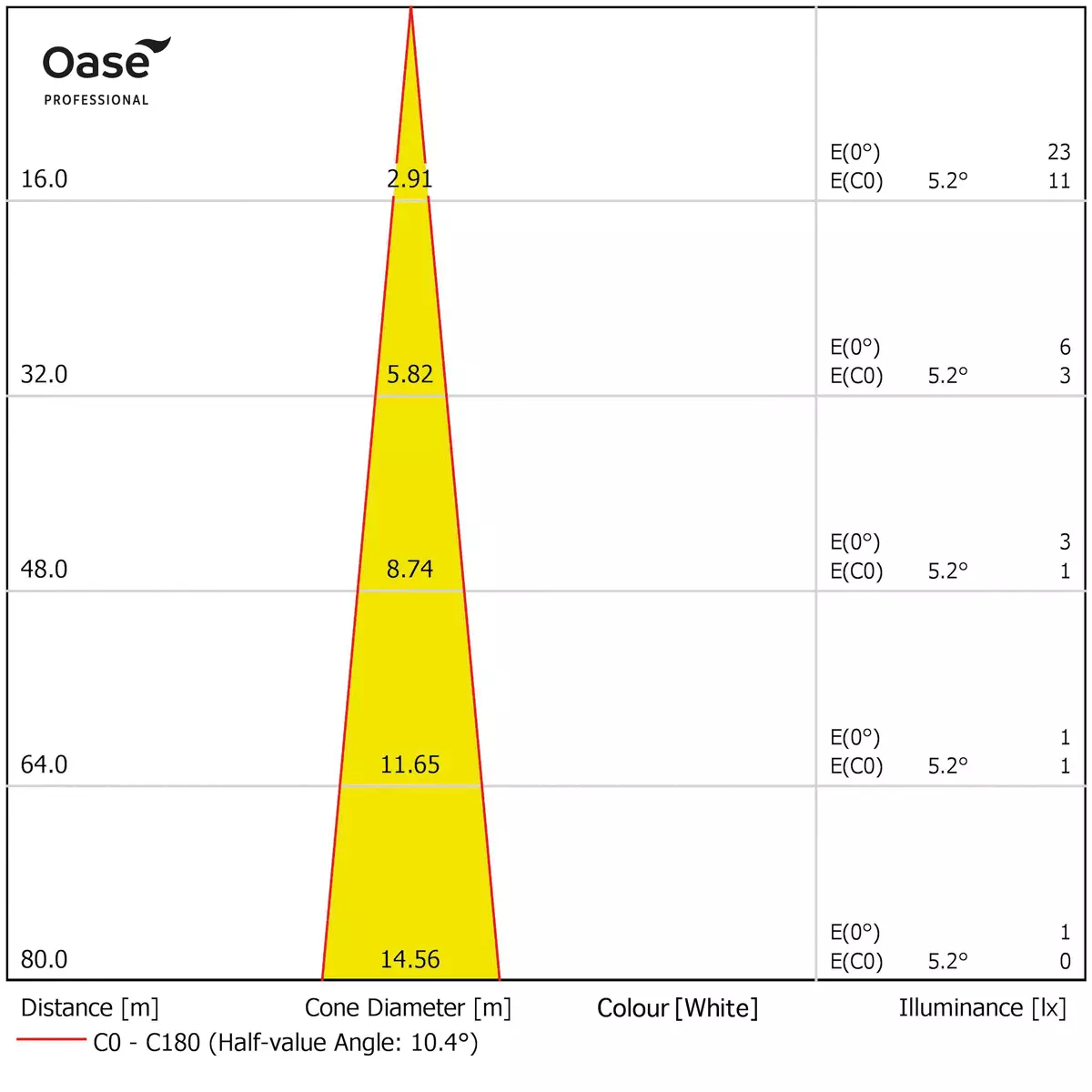

    Beam angle
    11 Degrees (± 2)
    DMX Channel 2
    green
    Rated voltage
    24 V / DC
    DMX Channel 3
    blue
    Power consumption
    20.4
    W
    DMX Channel 4
    white
    DMX Channel 5
    strobe
    Weighted energy consumption
    22.4
    kWh/1000h
    DMX Channel 6
    dimmable
    Rated current
    1.18
    A
    Luminous flux with all on
    1263
    lm
    Dim frequency
    2800
    Hz
    Luminous flux red
    284
    lm
    Power connection type
    Hybrid plug
    Luminous flux green
    509
    lm
    Power cable length
    1.00
    m
    Protection class
    IP68; 2 m
    Luminous flux blue
    156
    lm
    Dimensions (Ø × H)
    198 × 156
    mm
    Material
    Stainless steel 1.4301 (AISI 304)
    Net weight
    0.304
    kg
    Stroboscope effect
    0-25 Hz

    Stažení

    • ZEI_PRD_3D_70134-ProfiLux-Basic-LED-XL-RGBW-Spot-DMX-02.dwg
    • ZEI_PRD_AC_70134-ProfiLux-Basic-LED-XL-RGBW-Spot-DMX-02.dxf
    • ZEI_PRD_AC_70134-ProfiLux-Basic-LED-XL-RGBW-Spot-DMX-02-System.dxf
    • ZEI_PRD_LDT_56388-ProfiLuxLEDSpot1500DMX02.zip
    • DOK_PRD_EL_70134-ProfiLux-Basic-LED-XL-RGBW-Spot-DMX-02-001.pdf
    • DOK_PRD_DB_70134-ProfiLux-Basic-LED-XL-RGBW-Spot-DMX-02.pdf
    • DOK_PRD_LV_70134-ProfiLux-Basic-LED-XL-RGBW-Spot-DMX-02.pdf
    • DOK_PRD_GA_70195-GA-ProfiLux-Basic-RGB-LED-L-XL-01.pdf
